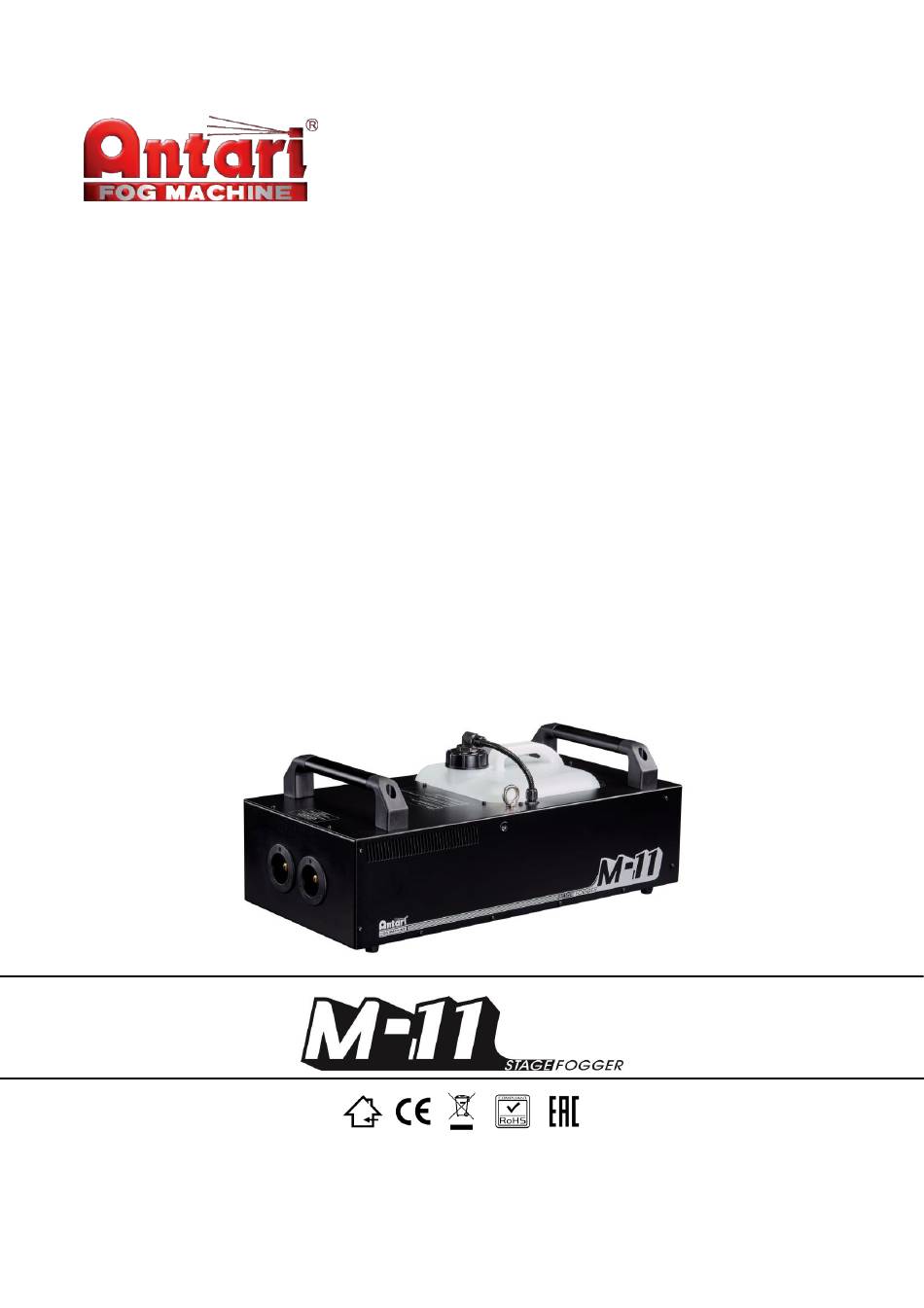

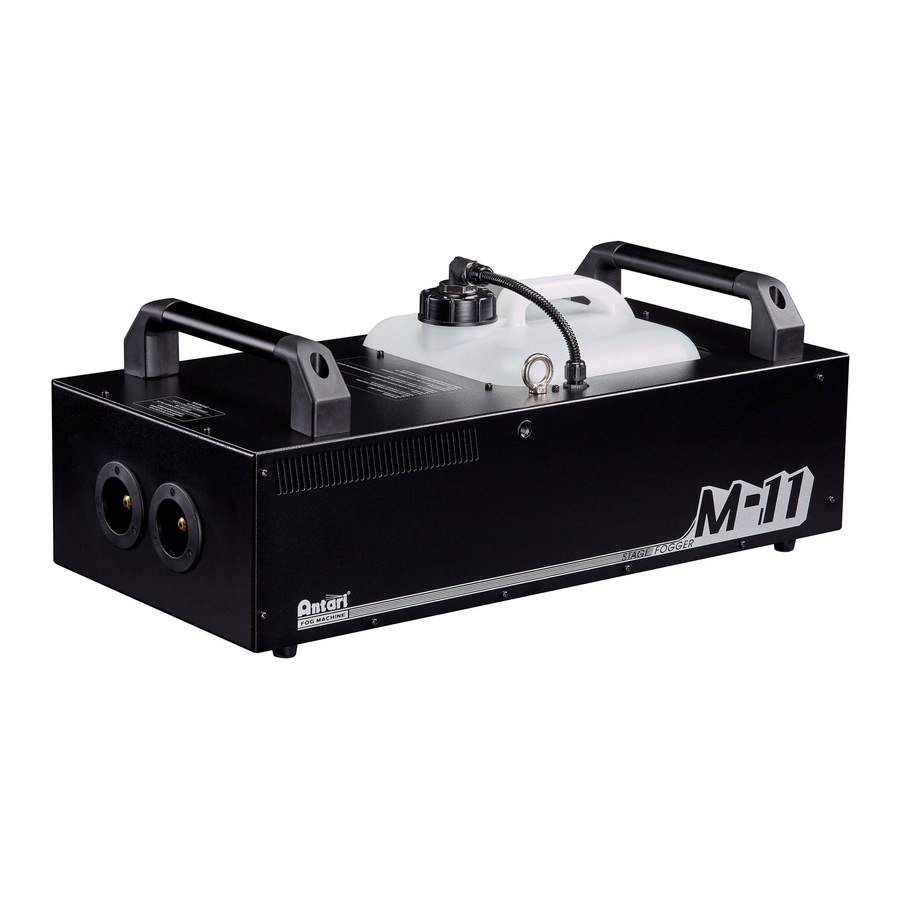

- Page 1 M-11 Stage Fog Machine User Manual - ENGLISH © 2019 Antari Lighting and Effects Ltd © 2019 Antari Lighting and Effects Ltd. www.antari.com...
-
Page 2: Safety Information
Pay attention to all warning labels and instructions in this manual and printed on the machine. If you have questions about how to operate the machine safely, please contact your local Antari dealer for help. Keep this device dry. -
Page 3: Unpacking And Inspection
H 284.3 mm 674.5 mm W 319.8 mm Product Overview Wireless Receiver (W-2 Wireless Remote) XLR 3-Pin DMX Connector XLR 5-Pin DMX Connector Neutrik TRUE 1 Power Connector Two rotary knobs (Timer / Volume) © 2019 Antari Lighting and Effects Ltd. www.antari.com... -
Page 4: Operation
Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm of open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid. Step 3: Connect the machine to a suitably rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine. - Page 5 5 – 200 sec Timer Duration 1 – 200 sec Output Level 0 – 100% Output Level 0 – 100% Manual Priming Start/Stop Heater On/Off Software Version VX.X Information ●: W-DMX present Wireless Signal © 2019 Antari Lighting and Effects Ltd. www.antari.com...
- Page 6 Making the DMX Connection – Connect the machine to a DMX controller or to one of the machines in the DMX chain. The machine uses both 3-pin and 5-pin XLR connector for DMX connection, the connector is located on the rear of the machine. © 2019 Antari Lighting and Effects Ltd. www.antari.com...
- Page 7 0 – 126 Single Pump 127-255 Dual RDM Control The M-11 Stage Fogger is RDM enabled, allowing control system to configure, mointor and manage. See below table for supported RDM parameters Value RDM Parameter ID’s GET Allowed SET Allowed 0x0001...
- Page 8 Press [A] button to emit fog. Press [B] button to stop. Press [C] button to increase output volume. Press [D] button to decrease output volume. In an unobstructed open space the effective distance is 50 meters, usage depending on obstacle level the effective distance is 10-25 meters. Wireless Receiver © 2019 Antari Lighting and Effects Ltd. www.antari.com...
-
Page 9: Service And Maintenance
Replace with the same type and specification of battery which is 27A 12V Fluid Only use Antari FLR/FLG water-based liquid for the M-11 Stage Fogger. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be voided if any other type of liquid is used, improper use of liquid may lead to machine failure and malfunction. -
Page 10: Technical Specifications
XLR 3-pin and XLR 5-pin (DMX) - Optional accessories W-DMX-PCBR Wireless DMX WTR-20 Wireless WTR-70 Wireless DMX and Remote - Dimension L 674.5 W 319.8 H 284.3 mm - Weight 25 kg (55.1 lbs) © 2019 Antari Lighting and Effects Ltd. www.antari.com... - Page 11 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
- Page 12 C08M11000 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
