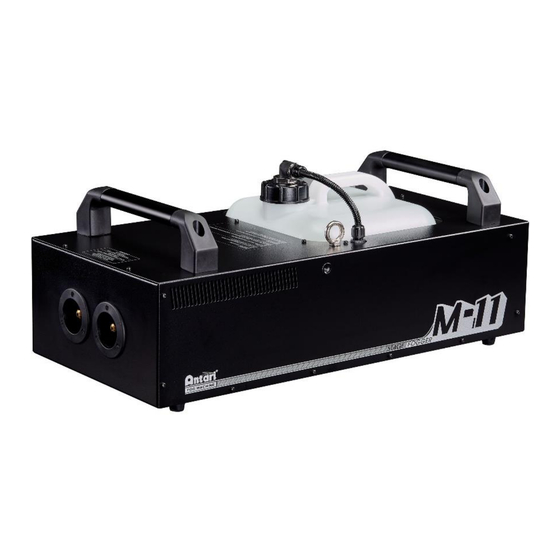

Dual nozzles stage fog machine
Hide thumbs Also See for M-11:

Advertisement

Quick Links

M-11
Dual Nozzles Stage Fog Machine
User Manual
- English
-中文
© 2023 Antari Lighting and Effects Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Antari M-11

  • Page 1 M-11 Dual Nozzles Stage Fog Machine User Manual - English -中文 © 2023 Antari Lighting and Effects Ltd.
  • Page 2: Table Of Contents

    Introduction ..............................1 Safety Information ............................1 Package Contents & Inspection ........................2 Machine Details ............................3 Technical Label Information ........................3 Fog Fluid..............................3 Setting and Manual Operation ........................4 Control Settings ............................4 Machine Status ............................6 10. DMX Connection ............................6 11.
  • Page 3: Introduction

     Please make sure the power outlet is not damaged or loose before plug in the power cord.  If the power cord is damaged, it must be replaced by Antari or its local dealers, otherwise the warranty will be...
  • Page 4: Package Contents & Inspection

     To ensure the lifespan of the machine, please only use the fluid manufactured by Antari, do not use other fluid or additive, otherwise it may clog the heater and cause malfunction. Before operating the machine, please read all warning labels on the machine, description as below;...
  • Page 5: Machine Details

    CAUTION Antari dealer for assistant.  Only the fog fluid manufactured by Antari can be used, do not mix or dilute the fog fluid. Due to improper storage or using other fluid might clog the heater and cause malfunction. ...
  • Page 6: Setting And Manual Operation

    8. Control Settings M-11 Dual Nozzles Fog Machine can be operated in the following modes. The machine can only accept 1 type of signal at a time.
  • Page 7 Rotary Knob Operating Method Action VOLUME knob (Right) Rotate Adjust Output Volume Activate Force Fogging/Priming Fluid VOLUME knob (Right) Press and Hold (100% output) Menu and Setting Rotary Knob Operating Method Action TIMER knob (Left) Press and Hold for 3 seconds Enter Setting Menu TIMER knob (Left) Rotate...
  • Page 8: Machine Status

    No fluid. Please refill the fluid tank and then press [VOLUME] knob Empty Fluid continuously to prime fluid from the tank. Wrong! Heater is over heat, unable to operate. Please contact your local Antari dealer Heater Overheat! for assistance. Warning! Heater temperature is abnormal, unable to operate.
  • Page 9: Rdm Function

    12. WTR-20 Wireless Remote (Optional) WTR-20 Wireless Remote is an optional accessory for M-11 Dual Nozzles Fog Machines, it included a W-2 wireless transmitter and a W-2 wireless receiver. If you already purchased the wireless model, it’s ready to use. If you purchase the WTR-20 Wireless Remote afterwards, please follow the instruction below.
  • Page 10 W-2 Wireless Receiver 12.2 W-2 Wireless Receiver Installation If you purchased the WTR-20 Wireless Remote afterwards, please follow the instructions below to install the receiver. If you encounter any problem, please contact your local Antari dealer for assistant. Graph 1 Graph 3 Graph 2 1.
  • Page 11: Timo-W-Dmx-Pcbr W-Dmx Receiver (Optional)

    14. TIMO-WTR-70 2in1 Wireless Module (Optional) TIMO-WTR-70 2in1 Wireless Module is an optional accessory for M-11 Dual Nozzles Fog Machines, it included a W-2 wireless transmitter, a 2in1 Receiver and W-DMX PCB. If you already purchased machine include this option, it’s ready to use.
  • Page 12: Service And Maintenance

    400 ml/min (100% output) Fluid Consumption Fluid Tank Capacity 10 Liters (2.64 Gallon) Antari FLG Heavy Fog Fluid、Antari FLR Light Fog Fluid、FLH Super Fog Fluid、 Compatible Fluid Antari FLZ Long Hang Time Fog Fluid 0°C – 40°C (32°F – 104°F) Ambient Temp.
  • Page 13: Warranty Disclaimer

    Warranty Disclaimer We guarantee the merchandise manufactured by us to be free from defect in material and workmanship for a period of one year. Our obligation and liability under this warranty shall be restricted to repair or replacement at our factory or local authorized dealer.
  • Page 14: 安全注意事項

    中文使用說明書 1. 前言 在操作本機器之前,請務必仔細詳閱本說明書然後請將本說明書放置在機器使用者可隨時查閱之處存放。 此說明書包含如何安全的安裝及操作本機器以及說明所有在機器上的標示。如果您有任何操作上的問題, 請立即聯繫當地的 Antari 經銷商尋求協助。 2. 安全注意事項 危險 若不確實避免這些指示,可能導致嚴重人身傷害甚至死亡。 警告 若不確實遵循這些指示,可能導致嚴重人身傷害甚至死亡。 注意 若不確實注意這些指示,可能導致人身傷害甚至死亡,嚴重程度視情況而定。 危險  請務必使用正確電壓。如果使用錯誤電壓,可能會遭受危險的電擊燒傷或更嚴重的後果。  請務必將機器連結到有保護的電路,並確保有正確的接地,以避免觸電的危險。關於接地方式請參考 第 23 頁附錄 I。  請勿在捆綁電源線的情況下使用,可能會發熱導致火災。  操作機器時請 勿 將 機 器 對 著 人 體 、動物或火 焰使用。 警告...
  • Page 15: 包裝內容與檢查

     關閉機器時,將控制開關轉到關閉的位置,然後再將插頭從插座拔除。  拔除電源線時,請抓住插頭不是電線。  在保養及清潔前,請把電源線從插座拔除。  在電線或插座有損毀、機器故障或有掉落或損壞的情形發生時,請勿操作機器。請將機器送回最近的 維修站,做檢查、維修及電源或機械的調整。 為確保機器的使用壽命,請使用 Antari 原廠製造之煙霧水,勿使用其它非 Antari 原廠製造煙霧水或添  加劑,否則可能會導致電熱管阻塞和故障。 在使用本機之前,請詳細閱讀機器上的警語標示,說明如下: 上蓋印刷 WARNING! 警告! HOT NOZZLE! 出煙口高溫! KEEP AT LEAST 1 METER DISTANCE 請保持至少 1 公尺的距離 LIQUID 液體 ONLY USE MANUFACTURER DESIGNATED FLUID 僅使用原廠認可的液體...
  • Page 16: 機器訊息

    08. 二合一電源&斷路器開關 04. 10 公升油桶 09. 控制旋鈕 05. 擴充槽 10. 液晶螢幕 5. 技術標籤資訊 使用本機器前,請詳閱技術標籤上的訊息 1. 機器型號 5. 斷路器/保險絲 2. 工作電壓 6. 說明書 QR CODE 3. 頻率 7. 機器流水序號 4. 瓦特數 6. 煙霧水 將液體加入機器之前,請務必先拔除電源線。請勿添加易燃液體。如果發現液體 危險 流入機器內部,請洽 Antari 原廠或其經銷商尋求協助。 僅能使用 Antari 原廠製造之煙霧水,不可混用或稀釋。若因保存不當而變質或使用非原廠煙霧水,將 ...
  • Page 17: 設定與手動操作說明

    可能造成電熱管堵塞而導致機器故障。  本機器是使用專屬的煙霧水做測試與校正來取得最佳的效能。  如需更換另一種液體,請在使用前,先將油桶中的液體清空,以避免混合。 僅能使用 Antari 原廠製造之香精,並依照原廠建議比例添加(原廠建議比例為 1:1000),如果使用非原  廠的香精或比例添加有誤,將可能造成電熱管阻塞而導致機器故障。  如果使用非原廠製造之煙霧水或香精而導致煙霧機損壞將不在保固範圍內。 7. 設定與手動操作說明 警告 機台掉落可能會造成嚴重傷害,請確保本機台安裝牢固且不會掉落。 將機器平放在堅固、平坦、穩定且通風良好的表面上,機器周圍至少應保留 50 公分的空間並確 步驟1. 認附近沒有易燃性物質或可揮發性氣體; 使用 ANTARI 原廠專用煙霧水注入機器所附的油桶,並注意不要折到油管; 步驟2. 步驟3. 將機器連接電源,連接之前,確認機器背後技術標籤上所標示要求功率,是否與電源插座相符; 啟動機器電源後,使機器開始加熱。機器加熱到可工作溫度大約需要 13 分鐘。當機器達到工作 步驟4. 溫度時,螢幕會顯示“噴煙就緒”,表示機器已經準備好可進行操作; 步驟5. 機器相關操作方式,請參照”8. 控制設定”; 步驟6. 需關閉本機時,請確認機器已停止運轉,再將電源開關關閉即可,長時間不使用時請移除電源 線。 8. 控制設定...
  • Page 18 旋鈕 操作方式 動作 TIMER 旋鈕 (左方) 啓動 TIMER 模式 按一下 VOLUME 旋鈕 (右方) 關閉 TIMER 模式 按一下 VOLUME 旋鈕 (右方) 旋轉 調整煙霧輸出量 VOLUME 旋鈕 (右方) 按住不放 啓動強制噴煙(100%輸出) 進入設定選單模式 旋鈕 操作方式 動作 TIMER 旋鈕 (左方) 按住約 3 秒鐘 進入設定選單 TIMER 旋鈕 (左方) 旋轉...
  • Page 19: 機器狀態

    面板畫面 說明 Antari M-11 機種版本 軟體版本 v1.2 AC Voltage 電源電壓 AC-120V 60Hz 噴煙預備中 W 代表 Wireless 無線控制功能已啓動。 Antari M-11 PWS S 代表 油量感應器功能已啓動。 噴煙就緒 P 代表 W-DMX 已啓動,左下角圖示代表目前 W-DMX 連接狀 態,詳細說明請參考 13.1 Antari M-11 PWS 熱管關閉中 加熱關閉 手動輸出量 手動噴煙執行中 100 % 200 秒...
  • Page 20: Rdm 功能

    通道 2 電熱管控制 127-255 啓動 0-126 單幫浦輸出 通道 3 單/雙 幫浦控制 127-255 雙幫浦輸出 11. RDM 功能 M-11 雙管煙霧機配有 RDM 功能,讓使用者可以經由 DMX 網路使用 RDM 功能進行機台的設定、監控、 管理。請參考下表相關 RDM 支援參數; Category RDM Parameter ID’s Value Required (Slot 21-22) Allowed Allowed DISC_UNIQUE_BRANCH 0x0001 NetworkManagement 0x0002 網路管理...
  • Page 21: Wtr-20 無線控制器(選配)

    感應器 DEVICE_HOURS 0x0400 Control IDENTIFY_DEVICE 0x1000 控制 POWER_STATE 0x1010 12. WTR-20 無線控制器(選配) WTR-20 無線控制器是 M-11 雙管煙霧機的選購配件,包含一個 W-2 無線發射器及 W-2 無線接收器。若您 採購的版本已含無線功能,即已安裝至機器上,可直接使用。若是後續採購 WTR-20 無線控制器,請按照 下方說明進行安裝與配對。如果遇到任何困難與問題,請與當地的 Antari 經銷商尋求協助。 12.1 W-2 無線發射器&無線接收器  發射器:使用 27A 12V 電池  收發距離:有效距離為 50 公尺,實際收訊狀況根據現場環境 因素而有所不同。 ...
  • Page 22: Timo-W-Dmx-Pcbr 無線 Dmx 接收器(選配)

    配對 無線遙控 無線遙控 無線遙控 < 設定完成 > < 稍後 > < 取消配對 > 13. TIMO-W-DMX-PCBR 無線 DMX 接收器(選配) TIMO-W-DMX-PCBR 無線 DMX 接收器是 M-11 雙管煙霧機的選購配件,包含一個無線 DMX 印刷電路板 及無線 DMX 接收器。若您採購的機型包含此功能,即已安裝至機器上,可直接使用。若是後續採購,請 按照 TIMO 安裝手冊進行安裝與配對。如果遇到任何困難與問題,請與當地的 Antari 經銷商尋求協助。  無線 接收器  無線 印刷電路板...
  • Page 23: Timo-Wtr-70 二合一無線控制模組(選配)

    14. TIMO-WTR-70 二合一無線模組(選配) TIMO-WTR-70 二合一無線模組是 M-11 雙管煙霧機的選購配件,包含一個 W-2 無線發射器、一個二合一 接收器及無線 DMX 印刷電路板。若您採購的版本已含此功能,即已安裝至機器上,可直接使用。若是後 續採購,請按照 TIMO 安裝手冊進行安裝與配對。如果遇到任何困難與問題,請與當地的 Antari 經銷商尋 求協助。  W-2 無線發射器  2in1 無線接收器(無線&無線 DMX)  無線 DMX 印刷電路板 15. 維護和保養 危險 維修保養之前,請務必拔除電源線  隨時保持機器清潔及乾燥。  可以使用空氣壓縮機、吸塵器或軟刷除去機器上的灰塵。  機殼可使用濕布擦拭。 ...
  • Page 24: 技術規格

    1600 瓦 額定功率 約 13 分鐘 加熱時間 400 毫升/分鐘 (100%輸出) 耗油量 10 公升 (2.64 加侖) 油桶容量 Antari FLG 濃煙霧水、Antari FLR 淡煙霧水、FLH 長時間停留濃煙霧水、 適用煙霧水 Antari FLZ 長停留時間煙霧水 0°C – 40°C (32°F – 104°F) 適用環境溫度 手動控制、定時控制、DMX 512、無線控制(選配)、無線 DMX(選配) 控制方式 DMX 512 通道...
  • Page 25: Appendix I - Grounding Instruction

    Appendix I – Grounding Instruction This appliance must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
  • Page 28 C08M11003...
