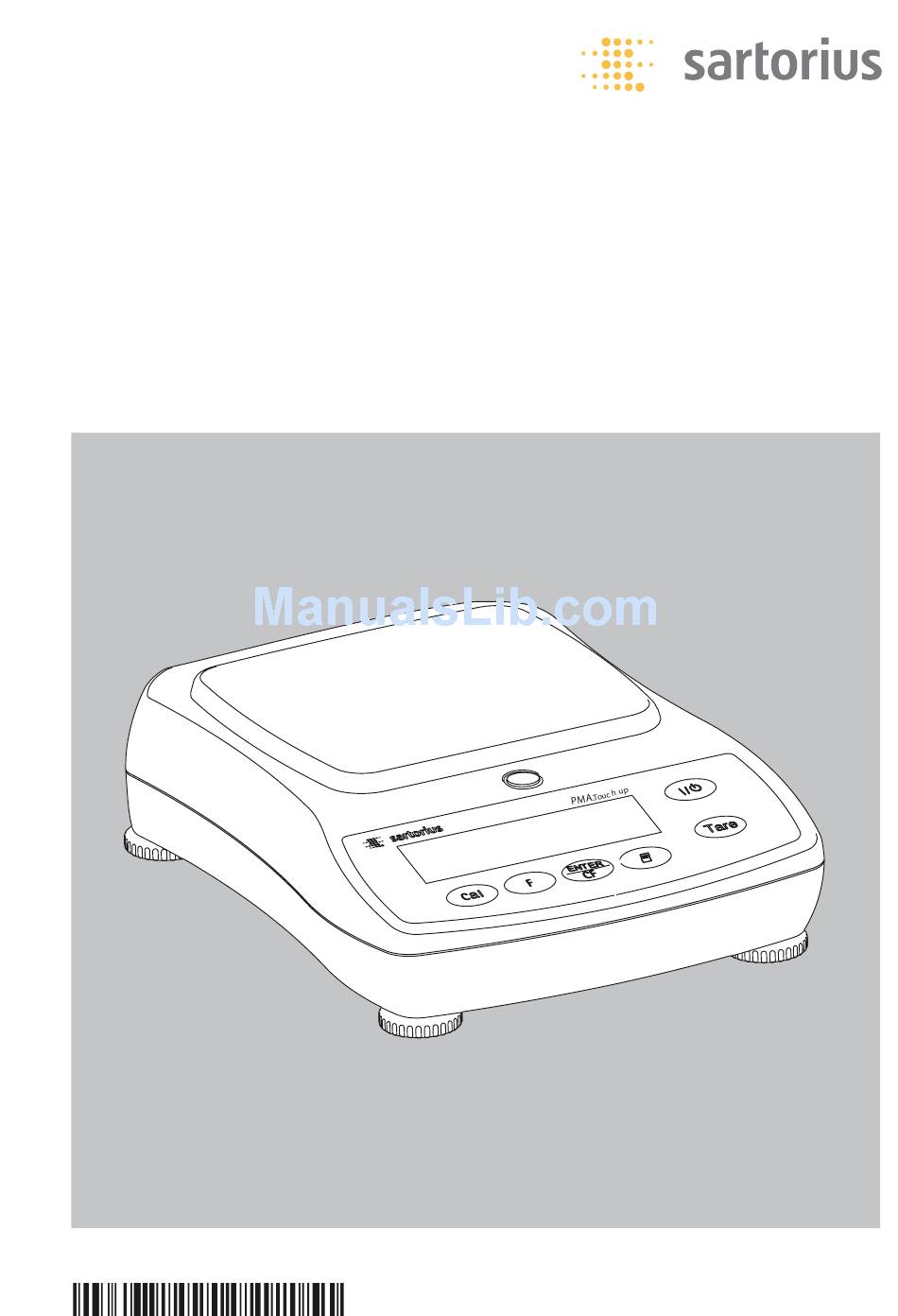

- Page 1 Installation Instructions Sartorius Model PMA600H (PMA.Touch Up) Electronic Paint-mixing Scales 98648-015-82...
-
Page 2: General View Of The Equipment
General View of the Equipment PMA600H 12 12 11 11 10 10 1 Weighing pan The following symbols are used in 2 Level indicator these instructions: 3 e key (On/Off/Standby) § Indicates required steps 4 t key: Zero/Tare $ Indicates steps required only under... -
Page 3: Table Of Contents
Intended Use General View of the Equipment ..2 The PMA600H (PMA.Touch Up) is a specially designed portable scale for use Intended Use ....3 in paint-mixing operations. -
Page 4: Warnings And Safety Precautions
- Avoid applying strong force to the weigh- using cables not supplied by Sartorius. ing pan. Otherwise, you will damage the – When connecting the scale to the power weighing system. -
Page 5: Getting Started
Getting Started § Remove the scale from its packaging. § After unpacking the scale, check it immediately for any visible damage as a result of rough handling during shipment. Equipment Supplied – Weighing pan – In-use dust cover – Scale –... - Page 6 Sartorius office or dealer. Use only original Sartorius AC adapters. The use of AC adapters from other manufacturers, even if these units have a registered approval rating from a national testing laboratory, requires the approval of a certified technician.
- Page 7 Leveling the PMA.Touch Up § Level the PMA.Touch Up each time you set it up in a new location. Example: The air bubble must move from the lower-right to the center position. § As shown in the illustration, turn the leveling feet until the air bubble is centered within the circle of the level indicator.
-
Page 8: Operation
Operation Basic Weighing Functions Function Keys Features – Zeroing/taring the scale: PMA.Touch up You can zero/tare the scale within the entire weighing range. Preparation Switch on the scale: press the e key § Enter § If necessary, zero/tare the scale: press the t key $ Change the menu settings, if necessary: see the chapter entitled “Menu Settings"... -
Page 9: Calibration/Adjustment
Calibration/Adjustment Calibrate/adjust the scale following installation and after moving it to a new location. Features: Calibration can only be started when: – The scale is unloaded – The scale is tared – The internal weighing signal is stable If these prerequisites have not been met, an error message is displayed when you attempt to start calibration. -
Page 10: Menu Settings (Setup Menu)
Menu Settings (Setup Menu) You can configure the scale to adapt it to particular requirements. Step Display e key 1. Turn off the scale e key 2. Turn on the scale; t key press briefly while all segments are displayed, or press and hold for more than 2 seconds Key Functions in the Setup Menu: Press briefly... -
Page 11: Troubleshooting Guide
“Specifications" The weight readout – Scale is not calibrated – Calibrate scale is obviously wrong – Scale was not tared – Zero/tare scale prior to weighing If any other errors occur, please contact your local Sartorius customer service center. -
Page 12: Care And Maintenance
Sartorius and $ Storage temperature: –20°C to +75°C who have access to the required service $ Permissible moisture level for storage of and maintenance manuals, and have the packaged scale: 90% max. - Page 13 § Remove the screw and remove the pan support. § Replace the soiled in-use dust cover and ensure that the adhesive points on the new cover properly adhere to the scale's surface. The dust cover must be firmly attached. Important Note: If the dust cover does not adhere to the scale, weighing results may be distorted.
-
Page 14: Recycling
Sartorius affiliates, subsidiaries, In Germany and many other countries (see www.sartorius.com, Service Down- dealers or distributors are located, please load area for details), Sartorius or the contact your local authorities or a com- mercial disposal operator. organization contracted by us takes care... -
Page 15: Data Interface (Options)
Data Interface (Options) Installation § Disconnect the power supply: Unplug the AC adapter from the wall socket (mains). § Turn the balance/scale on its side. To avoid damaging the weighing system, do not turn the balance/scale over so that it rests on the weighing pan/load plate. - Page 16 Intended Use of YADAP-USB Adapter Software Driver and Installation Guides This USB interface adapter is a solution The VCP driver, used to set up the that enables direct connection of the virtual interface on the computer, balance/scale to a computer on the can be downloaded from the internet: USB (universal serial bus) port.
- Page 17 § Open the settings for the USB serial port Installing the Software Driver § Run the Installation Wizard for the in Windows ® driver. – START > My Computer > Control Panel – System > Hardware > Device Manager § Follow the instructions that appear. §...
-
Page 18: Pin Assignment Chart: Yadap-Rs
Pin Assignment Chart: YADAP-RS Female Interface Connector: 9-contact D-Submini (DB9) with screw lock hardware for cable gland, for direct connection to a computer or an optional Sartorius printer (PC compatible). Pin assignments: Pin 1: Not connected Pin 2: Data output (TxD) -
Page 19: Default Settings
Parameter Settings – Interface Port (Overview) Intended Purpose Configuration of the scale and its interface port; i.e., to meet individual requirements by selecting from among predefined parameters in the Setup menu. o Factory settings User-defined settings Menü 1 and 8: Refer to Menu Settings (Setup Menu) 5 Interface 5 1 Baud Rate... -
Page 20: Specifications
Specifications Model PMA600H Weighing capacity Readability 0.01 Tare range (subtractive) –600 Max. linearity <±0.03 Stability range Adaptation to ambient By selection of 1 of 4 optimized filter conditions levels; display sequence: 0.1–0.8, (depending on the filter level setting) Allowable ambient operating temperature range °C... -
Page 21: Accessories
Accessories In-use dust cover YDC-02PMA Interface port, installation kit RS-232 interface with cable (2 m) YADAP-RS USB interface with cable (2 m) YADAP-USB Carrying case Upon request Anti-theft locking device LC-1 Calibration weights, universal (for weight compartment in scale) (100 g, F1) 69V0007 Weighing pan, square Upon request... - Page 23 Sartorius Weighing Technology GmbH Weender Landstrasse 94–108 37075 Goettingen, Germany Phone +49.551.308.0 Fax +49.551.308.3289 www.sartorius.com Copyright by Sartorius, Goettingen, Germany. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior written permission of Sartorius.
