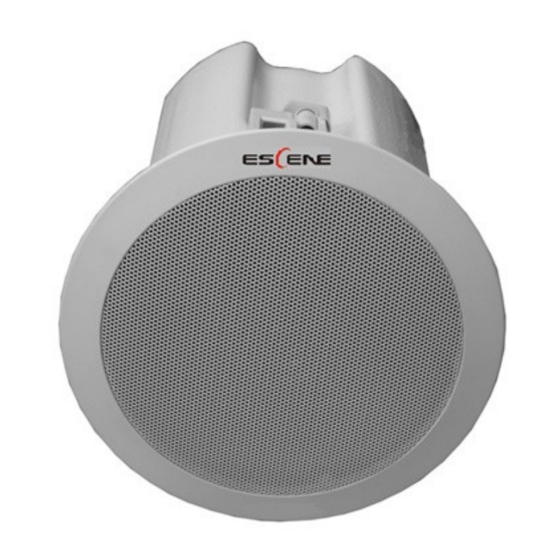

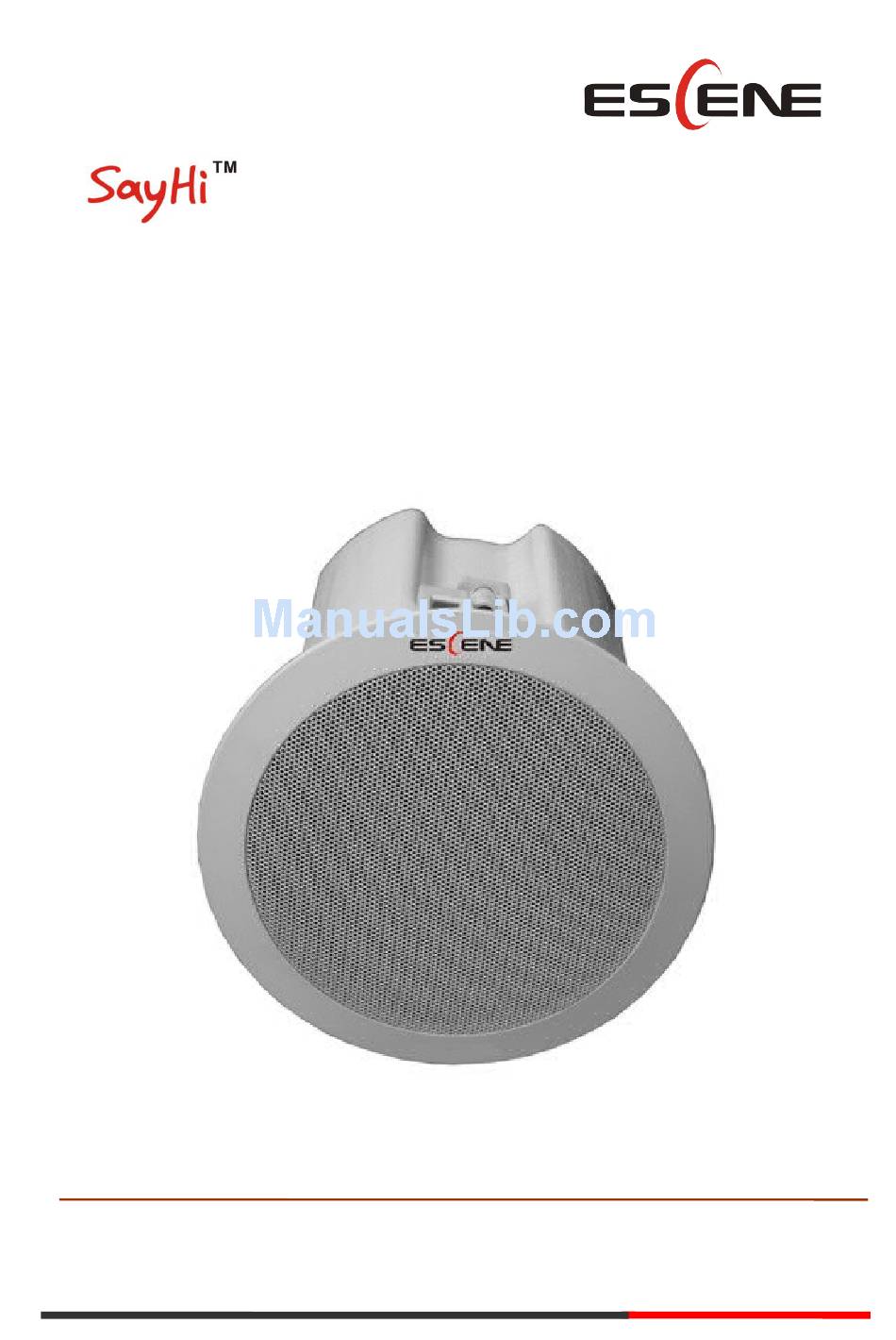

- Page 1 Public Broadcasting IP Phone Public Broadcasting IP Phone User Manual PS760-P(W) Escene Communication Co,.Ltd www.escene.cn/en Escene Communication...
-
Page 2: Copyright And Disclaimer
.Any parts of the document are not allowed to be modified or used for commercial purposes. Escene Communication Co,.Ltd will not assume any responsibility for the injuries and losses caused by any unauthorized modification or conversion of the document. -
Page 3: Table Of Contents
3.6.2 Speaker setup....................14 3.6.3 VLAN setup....................... 16 3.6.4 Password......................16 3.6.5 Factory Defaults Setting..................17 3.6.6 Auto provision....................17 3.6.7 FTP Upgrade..................... 18 3.6.8 TFTP Upgrade....................18 3.6.9 HTTP Upgrade....................19 3.6.10 Reboot......................19 3.7 Language......................... 20 www.escene.cn/en Escene Communication... -
Page 4: Getting Started
WIFI Series is easy to be installed with strong expansion ,its RJ45 port having a dual-use nature can be used as LAN port which is the same with the use of ordinary series when people manually turn off WIFI. www.escene.cn/en Escene Communication... -
Page 5: Technical Information
- registration is fail; Flash is 1s / times, slow flash is 2s / times Carton packaging Size ： 8.5"x6" ； The mask width 215mm,Height65mm ， The cover width x160mm ,Heightx135mm，Total height:155mm； Net weight:1.1kg Gross weight:2.0kg； Product Certification www.escene.cn/en Escene Communication... -
Page 6: Telephone Installation
In compliance with the following procedure,PS760-P (W) phone can be installed into the ceiling. 2.1 Ceiling entrance specification Cut out a installation hole of Ø170mm ~Ø180mm on the ceiling (Figure ②),Notice: The figure is just for your reference, as below www.escene.cn/en Escene Communication... -
Page 7: Installation Of Speaker Equipment
Once you input the IP address on the web browser and tape enter key on the key board, Then a login screen will pop up from the speaker equipment. You need to input user name and password. Both the tolerant user name and password of system is case letters “root” www.escene.cn/en Escene Communication... -
Page 8: Network
The setting and parameter of each option will be describe as follow. 3.2 Network This option is used for the network setting,please notice hat if you have WIFI speaker, then you could set the LAN and VPN. www.escene.cn/en Escene Communication... -
Page 9: Wifi Settings
Pls note that the option is just support item PS760-W. Once the device connect to the WIFI hot spot, you could use the below operation to check the WIFI connecting status. 3.2.3 LAN Settings This option is used for setting speaker IP, as shown below. www.escene.cn/en Escene Communication... -
Page 10: Vpn Settings
Public Broadcasting IP Phone 3.2.4 VPN Settings If your speaker install into VPN network, then you need to set the VPN as below. www.escene.cn/en Escene Communication... -
Page 11: Sip Accounts
3.4 Multicast settings ESCENE IP speaker could be set 20 groups multicast. You could add them and input several IP address and ports according to the below diagram. Notice: The priority of multicast is from 1-20. -
Page 12: Voice
Please note that in most cases, if you open the microphone and switch to level 7, then don’t use speaker volume more than level 4, unless you can ensure that your coverage is small or noise reduction level is high. www.escene.cn/en Escene Communication... -
Page 13: Maintains For The Speaker
For most well-known system, log file will provide the speaker behavior change and some causes of records, information contained in the log files you need to investigate the problem, if you need to get information from it, then it can upload the log file to the specified server. www.escene.cn/en Escene Communication... -
Page 14: Speaker Setup
Public Broadcasting IP Phone 3.6.2 Speaker setup Most of the following list will serve as a backup, you can set a time and date only and other options can be ignored directly. www.escene.cn/en Escene Communication... - Page 15 Public Broadcasting IP Phone www.escene.cn/en Escene Communication...
-
Page 16: Vlan Setup
VLAN information, otherwise you will not be able to operate the speaker or play any announcements. 3.6.4 Password If you need to change the speaker's default password, you need to configure the password information. Please note that the password change should be ensured safety www.escene.cn/en Escene Communication... -
Page 17: Factory Defaults Setting
The auto provision function makes the speaker read the related configuration file by itself. The operation below will show the related operation, such as, name or address of Sever, verify by user name or password (optional), testing period, reboot testing, etc. www.escene.cn/en Escene Communication... -
Page 18: Ftp Upgrade
3.6.7 FTP Upgrade You can use FTP/TFTP/HTTP to upgrade new firmware and the software of speaker. The following will direct you if use FTP to upgrade 3.6.8 TFTP Upgrade The following will direct you if use TFTP to upgrade. www.escene.cn/en Escene Communication... -
Page 19: Http Upgrade
The following will direct you if use HTTP to upgrade。 3.6.10 Reboot The following will direct you if rebooting speaker. Please note that do not rebooting speaker unless hooking or no reaction situation which is rare occurrence. www.escene.cn/en Escene Communication... -
Page 20: Language
Public Broadcasting IP Phone 3.7 Language The following will direct you how to change language with the speaker. www.escene.cn/en Escene Communication...
