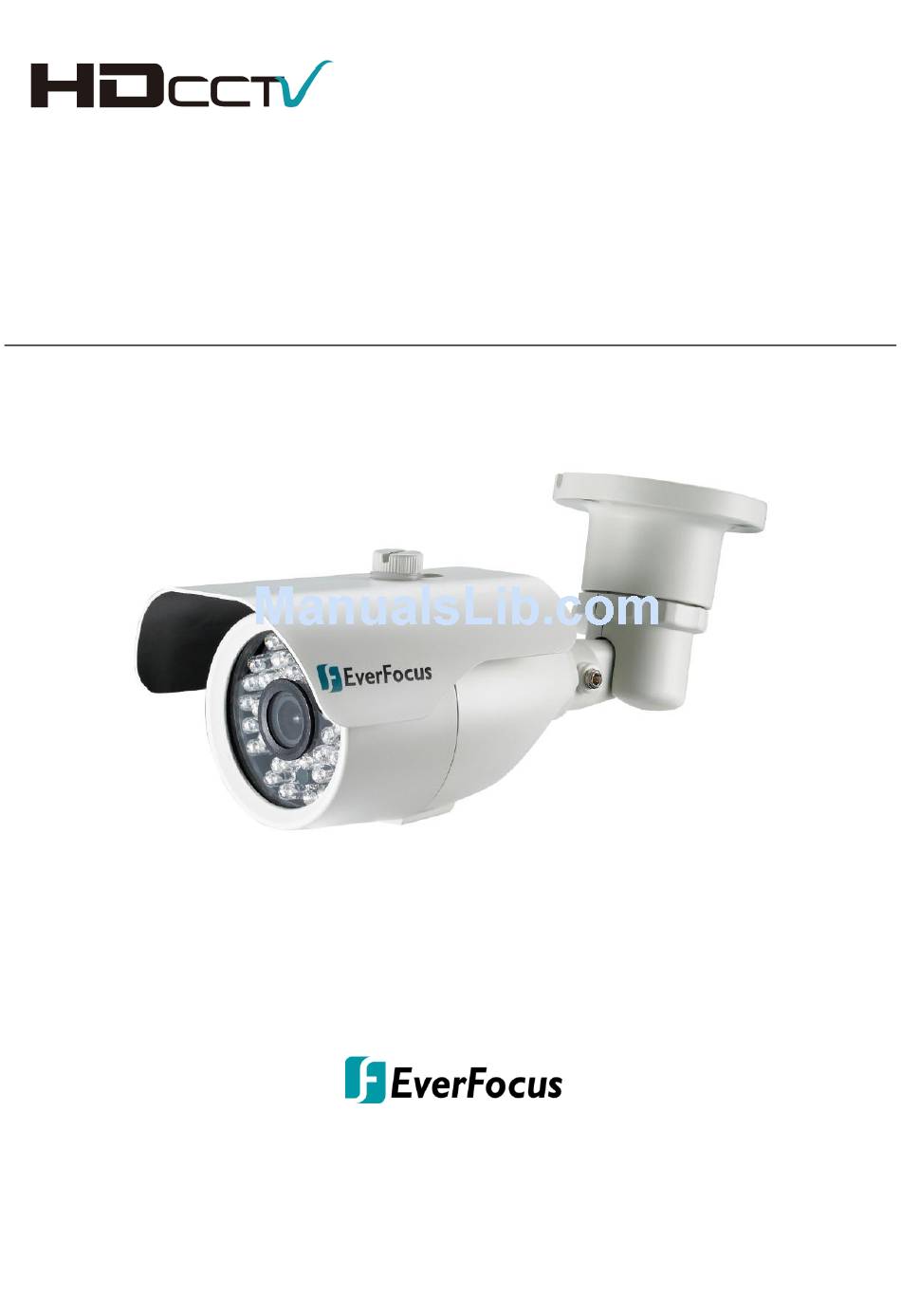

  • Page 1 EZH5102 1080p Mini IR Bullet Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: October, 2012...
  • Page 2 Precautions Please read this manual first to ensure correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.
  • Page 3 This Product is RoHS compliant. Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

  • Page 4: Table Of Contents

    Contents 1. INTRODUCTION ..................1 ..................... 1 ACKING ......................1 EATURES 2. CABLE DESCRIPTION................2 3. INSTALLATION ..................3 ................3 NSTALLATION AND DJUSTMENT 4. CONFIGURATION IN THE OSD MENU ..........6 OSD M ....................... 6 4.1.1 E ..........................6 XPOSURE 4.1.2 C ............................

  • Page 5: Introduction

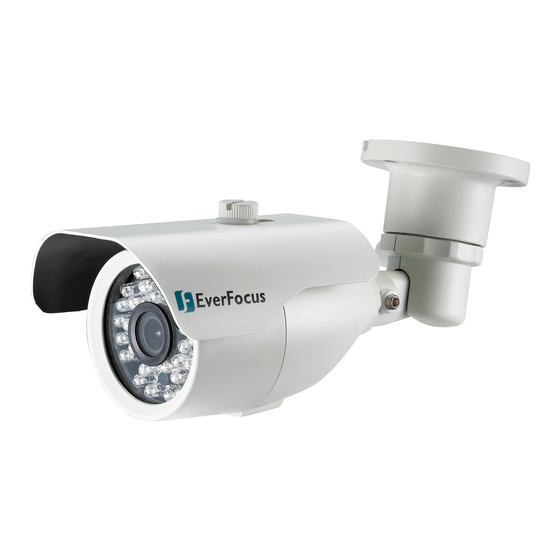

    EZH5102 1080p Mini IR Bullet Camera 1. Introduction The EZH5102 is an HDcctv outdoor mini IR bullet camera. Based on a progressive scan CMOS sensor, the camera provides 1080p high resolution images and superior video quality compared to traditional CCTV images. This superior resolution not only captures more critical evidentiary...

  • Page 6: Cable Description

    Connects to an HDcctv device, such as a DVR or HD HDcctv Output monitor, using a 75 Ohm BNC-type coaxial cable. Connects to an RS-485 device, such as EverFocus’ EKB500 RS485+ (Green) keyboard. Connects to an RS-485 device, such as EverFocus’ EKB500 RS485- (Blue) keyboard.

  • Page 7: Installation

    EZH5102 1080p Mini IR Bullet Camera 3. Installation 3.1 Installation and Adjustment Paste the supplied mounting template onto a desired location on the wall and then drill the three cross marks. For ceiling‐mount installation, you can ignore this step. Drill a hole on the wall / ceiling if you want to wire the cables through the wall.
  • Page 8 EZH5102 1080p Mini IR Bullet Camera Connect the camera to the 12V DC power source using the supplied power adapter pigtail or a power adapter. Optionally connect the camera to a portable monitor using the supplied Test-Out Cable for configuring the OSD menu. Connect one end of the Test-Out Cable to the Test-Out Connector on the camera and the other end to the portable monitor.
  • Page 9 EZH5102 1080p Mini IR Bullet Camera  Push the Joystick up / down to select among menu items.  Push the Joystick left / right to adjust the level of the selected item.  Press the Joystick to enter the submenu or exit the OSD Setup Menu.

  • Page 10: Configuration In The Osd Menu

    EZH5102 1080p Mini IR Bullet Camera 4. Configuration in the OSD Menu You can use the Joystick on the rear panel of the camera to configure camera settings in the OSD menu. For details on the OSD menu structure, see OSD Menu Structure in Appendix.

  • Page 11: Color

    EZH5102 1080p Mini IR Bullet Camera MODE Indoor Select this mode when the color temperature of the video image is similar to that found in indoor environments (around 5100 to 5300°K). Outdoor Select this mode when the color temperature of the video image is similar to that found in outdoor environments (around 3,000°K to 3,200°K)

  • Page 12: Image

    EZH5102 1080p Mini IR Bullet Camera  AUTO EXTN (Extension) – Around 2300 to 10800°K  PRESET – Use a pure white background to preset the white balance value.  MANUAL COLOR TEMP – Use the  and  buttons to adjust the speed. The options include: LOW, MIDDLE and HIGH ...
  • Page 13 EZH5102 1080p Mini IR Bullet Camera X, Y-POS, SIZ: Enter the submenu to set up the position or size of the privacy mask zone. COLOR: Press to select a color for the selected privacy mask zone. TRANS: Press to select the transparency of mask zone.

  • Page 14: Blc

    EZH5102 1080p Mini IR Bullet Camera 4.1.4 BLC Press the Enter / Confirm button to enter the submenu. MODE Use the  and  buttons to select OFF and BLC. Please notice the WDR is only working on round 7.5FPS.

  • Page 15: Motion

    EZH5102 1080p Mini IR Bullet Camera 4.1.6 Motion Press the Enter / Confirm button to enter the submenu. RESOLUTION Use the  and  buttons to increase or decrease the RESOLUTION level from 0 to 4. SENSITIVITY Press to set up the sensitivity for the motion detection function.

  • Page 16: System

    EZH5102 1080p Mini IR Bullet Camera 4.1.7 System Press the Enter / Confirm button to enter the submenu. F / W VER 1.00 DEFECT DET Press to select the DPC (Defective Pixel Correction) level of defect detector. Please notice; do not use this function without cover the lens.
  • Page 17 EZH5102 1080p Mini IR Bullet Camera 50HZ frequency, the CVBS will automatically change to PAL; select 60HZ frequency, the CVBS will turn to NTSC. Then, you can select the 720P or 1080P in the format options, and the FPS will also change accordingly.

  • Page 18: Specifications

    EZH5102 1080p Mini IR Bullet Camera 5. Specifications Pickup Device 1/3” Panasonic 2.1 megapixel Color Progressive CMOS sensor Image Pixels 1920(H) x 1080(V) Resolution Digital: 1080p (30 / 25), 720p (60 / 50) Scanning System NTSC / PAL Color: 0.4 lux, BW: 0.1 lux, Sensitivity Color DSS: 0.1 lux, BW DSS: 0.025 lux...

  • Page 19: Appendix

    EZH5102 1080p Mini IR Bullet Camera 6. Appendix 6.1 OSD Menu Structure The default value is marked with a star “*”. Main Sub Menu Sub Menu / Function BRIGHTNESS 1~20 (default=6) MODE INDOOR*, OUTDOOR LENS MANUAL*, DC AUTO* EXPOSURE SHUTTER...
  • Page 20 EZH5102 1080p Mini IR Bullet Camera SHADING ON*, OFF AUTO COLOR MODE B&W DAY&NIGHT EXT* AGC THRS 0~20 (default=10) MARGIN 0~20 (default=) DELAY 0, 5*, 10, 30 SEC OFF* HLMASK LEVEL 0~20 (default=10) COLOR BLK*/WHT/YEL/CYN/GRN/MAG/RED/BLU ON, OFF* GAMMA 0.45*, 0.5, 0.55, 0.65, 0.75...
  • Page 21 EZH5102 1080p Mini IR Bullet Camera DOUT SCALE FULL*, COMP DOUT 720P, 1080P* FORMAT DOUT FPS 50, 60 ,25*, 30 FREQ 50*, 60 HZ CVBS PAL*, NTSC LANGUAGE English*, Chinese, Japanese, Korean, French, German, Russian RESET PUSH, PUSHING...
  • Page 22 EZH5102 1080p Mini IR Bullet Camera EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe - Germany: 12F, No.79, Sec. 1, Shin-Tai Wu Road, Albert-Einstein-Strasse 1, D-46446 Hsi-Chih, Taipei, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940 FAX: +886 2 2698 2380 FAX: +49 2822 939495 www.everfocus.com.tw...
