EverFocus ED350 Specifications

ED350

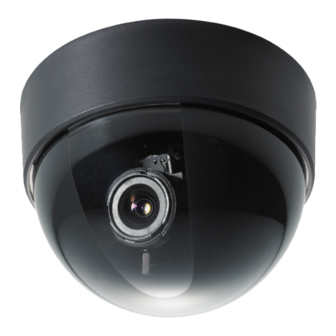

Indoor Color Mini Dome Camera
Features
• High Resolution Technology with 560 TVL!
• 9-22mm or 3.8-9.5mm
• Ceiling mountable dome base
• Compact size for discreet surveillance
Dimensions: mm/in
108 mm / 4.2"
Ordering Info
ED350/N-1: Color Mini Dome, Beige, 560 TVL, 3.8-9.5mm
ED350/NB: Color Mini Dome, Black, 560 TVL, 3.8-9.5mm
ED350/NW: Color Mini Dome, White, 560 TVL, 3.8-9.5mm
ED350/N-2: Color Mini Dome, Beige, 560 TVL, 9-22mm
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specification information.
EverFocus is not responsible for typographical errors. Product specifications are subject to change without notice.
www.everfocus.com
560
Specifications
Part Number
Pickup Device
Video Format
Picture Elements
Scanning System
Scanning Frequency
525 TV lines, 60 fields/sec | 625 TV Lines, 50 fields/sec
Horizontal Resolution
Sensitivity
S/N Ratio
Electronic Shutter
Video Output
Local Video Output
Gamma Correction
Lens Type
Lens Options
Flickerless
BLC
Gain Control
White Balance
Sync Mode
Environmental
Power Source
Power Consumption
Operating Temp
Humidity
Dimensions (in | mm)
Weight (lbs | gm)
Certifications
Analog Solutions
12VDC/
24VAC
ED350
1/3" Sony Interline Transfer Super HAD CCD
NTSC or Pal
768 x 494 (NTSC) | 768 x 494 (NTSC)
2:1 Interlace
560 TVL
0.5 Lux/F=1.2
Over 48dB (AGC off)
1/60s~1/100,000s
BNC 1.0Vp-p 75Ω
Local test output
0.45
f=3.8-9.5mm/F=1.2
f=9-22m/F=1.6
On/Off switch
On/Off switch
On/Off switch
Yes
Internal
Indoor Applications
12VDC/24VAC
12VDC: 3.5W max 24VAC: 5W max
32°F~104°F | 0°C~40°C
20%-80%
4.2" x 3.1" | 108 x 80mm
0.7lbs | 320g
CE/FCC
70
