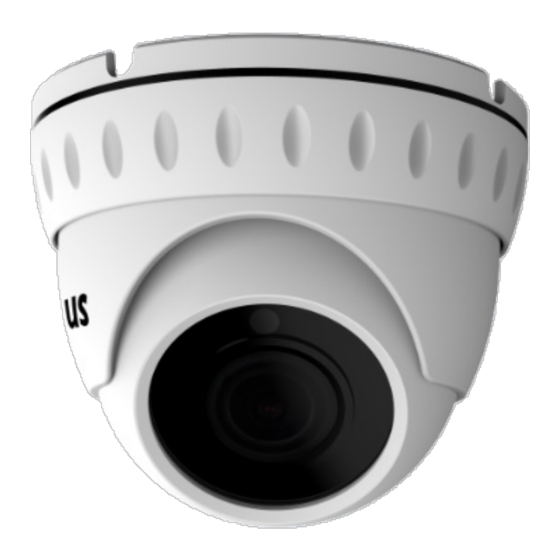

5mp, ip66 ir dome camera

Advertisement

Quick Links

EBA1540 eZ.HD Series
5MP, IP66 IR Dome Camera
User's Manual
Copyright © EverFocus Electronics Corp.
Release Date: May, 2019
All the images including product pictures or screen shots in this document are for example
only. The images may vary depending on the product and software version. Information
contained in this document is subject to change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eZ.HD EBA1540 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EverFocus eZ.HD EBA1540

  • Page 1 The images may vary depending on the product and software version. Information contained in this document is subject to change without notice. EverFocus Taiwan: 2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw...
  • Page 2 1. Introduction EverFocus eZ.HD series cameras – EBA1540 deliver 5MP image quality. The model is equipped with Sony STARVIS CMOS sensor and provides 3.6mm fixed lens with ICR. Featured with True Wide Dynamic Range (T-WDR), the camera can provide clear images even under backlight circumstances where intensity of illumination can vary excessively.
  • Page 3 1.4 Optional Accessory BA-E310 Color / Material: White / Metal Size (Φ x H): 101 x 52mm / 3.98” x 2” Weight: 540g / 1.2lb BA-E173 Color / Material: White / Metal Size (W x D x H): 173 x 111 x 114mm / 6.81”x 4.37”x 4.49” Weight: 700g / 1.5lb 1.5 Cable Description 12VDC...
  • Page 4 3. Screw the Camera Base to the surface with the supplied four Screws. a. If you want to wire the cables from the Side Cut on the Camera Base: Attach the Camera Body to the Camera Base and run the cables through the Camera Base, and then place the cable under the Side Cut.
  • Page 5 4. Screw back the Outer Housing and adjust the camera angle simultaneously. ° ° ° 5. Connect the Power Cable to a 12VDC power source. Connect the Video Output Cable to a monitor or DVR. 6. You can use the Joystick on the cable to configure camera OSD settings or switch to different video formats.
  • Page 6 3. Configuration in the OSD Menu No Main Sub Menu Sub Menu / Function Level 0-10 YEL, CYN, GRN, MAG, RED, BLU, BLK, Edge Det Color Brightness 0-20 Auto Mode Normal / Deblur 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, Shutter Manual Speed...
  • Page 7 Anti-Sat. 0-20 D>N Thres 0-20 N>D Thres 0-20 Delay High, Middle, Low IR LED Adaptive, Off Anti-Sat. 0-20 Extern SW High, Low Extern D>N Thres 0-20 N>D Thres 0-20 Delay High, Middle, Low Auto Autoext Preset Color C-Temp 3000K, 5000K, 8000K Manual R-Gain 0-20...
  • Page 8 CB Level 0-20 CR Level 0-20 Trans Window Use Window Zone On, Off Det H-POS 0-80 Det Window Det V-POS 0-60 Det H-Size 0-80 Motion Det V-Size 0-60 Sensitivity 0-10 Motion OSD On, Off Text Alarm On, Off Signal Out On, Off 4K/15fps, 4MP/30fps, 1080p/30fps, Frame Rate...
