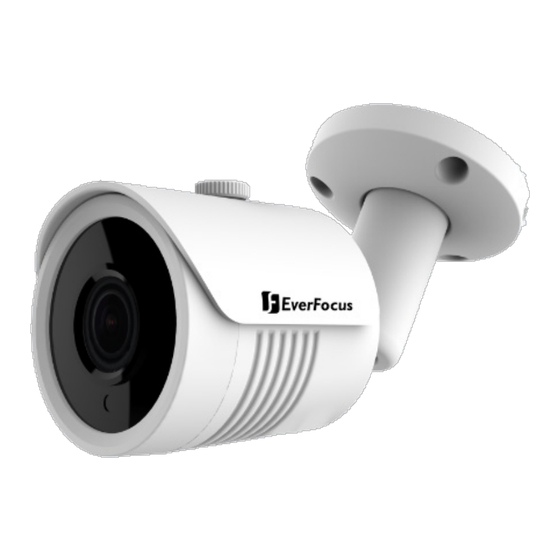

EZA1840 eZ.HD Series
8MP IP66 IR Bullet Camera
User's Manual
Copyright © EverFocus Electronics Corp.
Release Date: September, 2019
All the images including product pictures or screen shots in this document are for example
only. The images may vary depending on the product and software version. Information
contained in this document is subject to change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eZ.HD Series and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus eZ.HD Series

Summary of Contents for EverFocus eZ.HD Series

  • Page 1 The images may vary depending on the product and software version. Information contained in this document is subject to change without notice. EverFocus Taiwan: 2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw...
  • Page 2 1. Introduction EverFocus eZ.HD series cameras – EZA1840 is equipped with a 8MP CMOS sensor. The model provides 4mm fixed lens with ICR. Featured with True Wide Dynamic Range (T-WDR), the camera can provide clear images even under backlight circumstances where intensity of illumination can vary excessively. The EZA1840 supports both NTSC and PAL scanning systems (auto detection) and is IP66 certified.
  • Page 3 1.4 Optional Accessory BA-E310 Color / Material: White / Metal Size (Φ x H): 101 x 52mm / 3.98”x 2” Weight: 540g / 1.2lb 1.5 Cable Description 12VDC Power Cable Video Output Cable (BNC, 75Ohm) 2. Installation 1. Stick the supplied Mounting Sticker to the surface to mark the 3 screw positions.
  • Page 4 Configuring OSD Settings: Push the Joystick up / down to select among • menu items. Push the Joystick left / right to adjust the level of • the selected item. Press the Joystick to enter the submenu or exit • the OSD Setup Menu.
  • Page 5 3. Configuration in the OSD Menu No Main Sub Menu Sub Menu / Function Level 0-10 YEL, CYN, GRN, MAG, RED, BLU, BLK, Edge Det Color Brightness 0-20 Auto Mode Normal / Deblur 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, Shutter Manual Speed...
  • Page 6 N>D Thres 0-20 Delay High, Middle, Low IR LED Adaptive, Off Anti-Sat. 0-20 Extern SW High, Low Extern D>N Thres 0-20 N>D Thres 0-20 Delay High, Middle, Low Auto Autoext Preset Color C-Temp 3000K, 5000K, 8000K Manual R-Gain 0-20 B-Gain 0-20 Color Gain 0-20...
  • Page 7 Window Use Window Zone On, Off Det H-POS 0-96 Det Window Det V-POS 0-56 Det H-Size 0-96 Motion Det V-Size 0-56 Sensitivity 0-10 Motion OSD On, Off Text Alarm On, Off Signal Out On, Off Frame Rate 4K/15fps, 4MP/30fps, 1080p/30fps Freq 60Hz (auto detection) Analog Mode...
