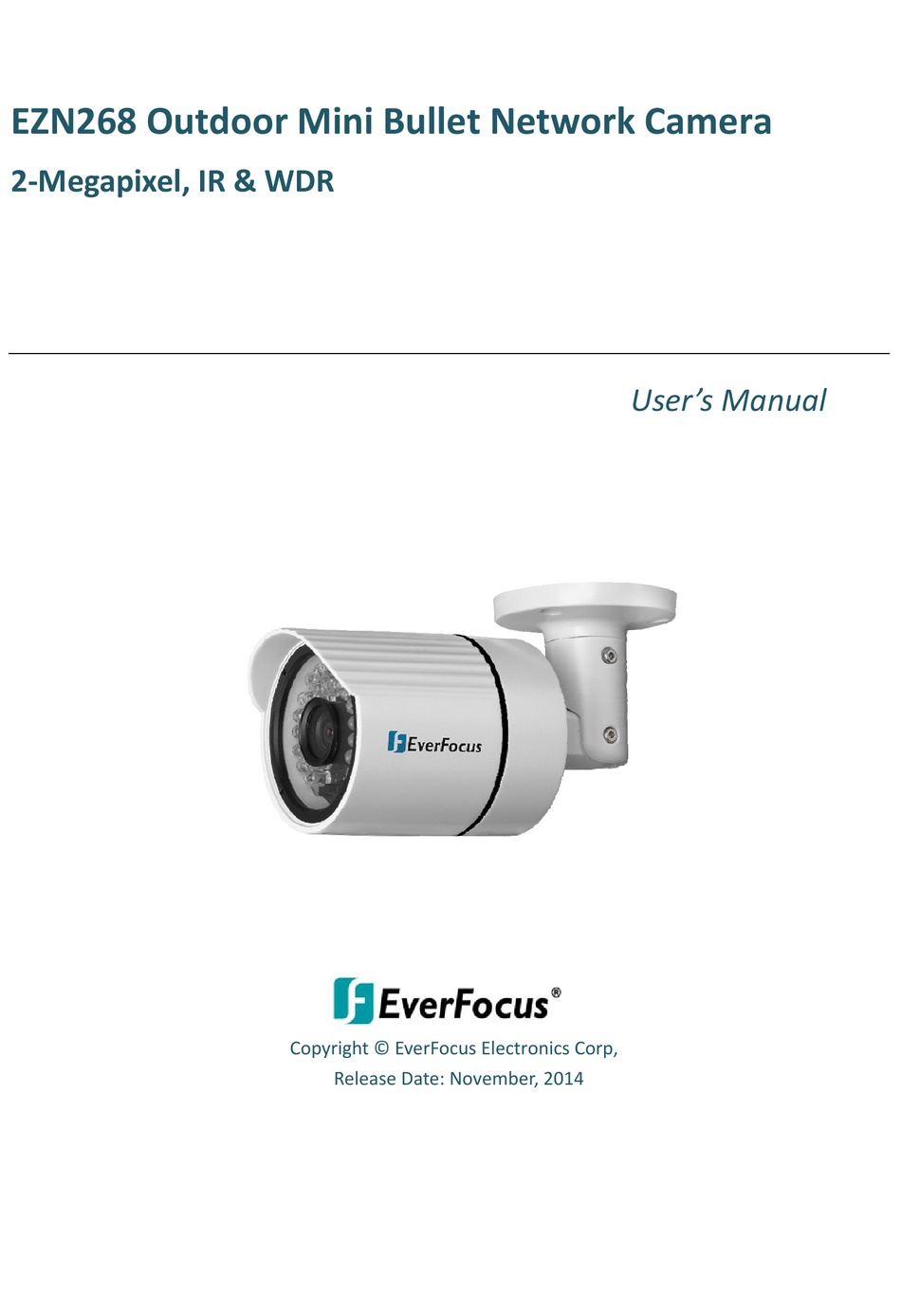

- Page 1 EZN268 Outdoor Mini Bullet Network Camera 2‐Megapixel, IR & WDR User’s Manual ...
- Page 2 Copyright 1995-2014 EverFocus Electronics Corp. All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. EverFocus 12F-1, No.79, Sec. 1, Shin-Tai Wu Road,...
-
Page 3: About This Document
- Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:... - Page 4 Precautions 1. Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. 2.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............................ 1 2. Physical Description ........................2 Dimensions ............................3 3. Features ........................ 3 4. Installation ......................4 Packing List ............................4 Basic Installation ..........................5 5. Accessing the User Interface ......................8 Checking the Dynamic IP Address ....................8 Settings for Microsoft Internet Explorer .................. - Page 6 8. Specifications ...................... 58 9. Troubleshooting....................60 Appendix .............................. 63 Enabling the Multicast Function ....................... 63...
-
Page 7: Introduction

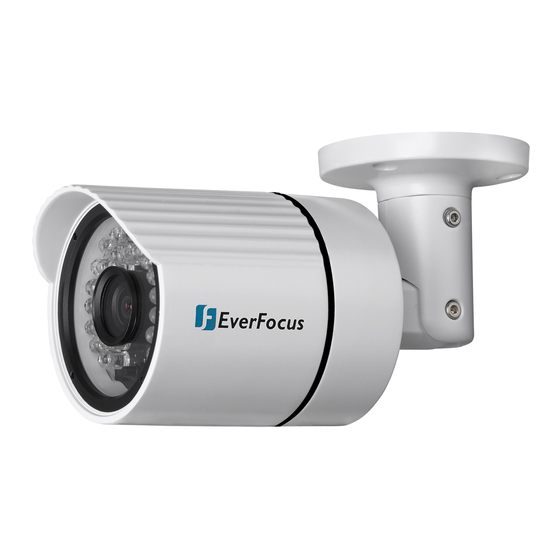

EZN268 1. Introduction The EZN268 is a 2-megapixel outdoor mini bullet IP camera, providing 30 fps at 1920 x 1080 viewing resolution. The camera supports dual streams from H.264 and MJPEG video compression formats. Equipped with weather-resistance (IP66) housing plus 30 IR LEDs for enabling the night visibility of up to 30 meters, the camera meets a wide variety of needs for outdoor surveillance. -
Page 8: Physical Description
EZN268 2. Physical Description No. Item Name Descriptions 1 IR LEDs 30 IR LEDs for infrared illumination in night vision applications. 2 Lens Fixed lens. 3 Light Sensor Detects lights. 4 Set Screws Used to rotate, pan and tilt the camera. 5 RJ‐45 Connector Cable Used to connect to a LAN/PoE cable. 6 12 VDC Cable Used to connect to the power supply. Cable Connection Cable Name Description Connects to the 12 VDC power source. You can optionally use the supplied Power ... -
Page 9: Dimensions
EZN268 2.1 Dimensions Features 1/2.8” HD color CMOS image sensor delivers high resolution, and supports both H.264, MPEG-4 • and M-JPEG in full frame rate Wide dynamic range • Provides true day / night functionality with automatic IR filter operation •... -
Page 10: Installation
Note: Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. -
Page 11: Basic Installation
EZN268 Basic Installation 1. Before screwing the camera to the wall, stick the Sticker on the wall / ceiling to mark the position for installation. Drill three holes on the wall / ceiling according to the supplied Sticker and push the supplied three Anchors into the three holes on the wall / ceiling. - Page 12 EZN268 Adjust camera angles. Pan Adjustment: loosen the Set Screw using the supplied Hexagon Wrench. Rotate the camera by 360° to the desired position and screw the Set Screw until it locks against the Camera Base. Tilt Adjustment: Loosen the Screw using the provided Hexagon Key and adjust the angle by 90°. Rotational Adjustment: Loosen the Screw using the provided Hexagon Key and rotate the camera by 360°. ...
- Page 13 EZN268 5. Connect the LAN / PoE cable to the camera. a. Remove the Screw Cap from the Cable Gland. b. Insert a RJ‐45 network cable (without the RJ‐45 connector on the one end) through the Cable Gland and Screw Cap. c. Place the Waterproof Ring into the LAN / PoE cable. Connect the RJ‐45 cable to the RJ‐45 Connector Cable. Tightly screw the Cable Gland and Screw Cap to the RJ‐45 Connector Cable. d. Optionally connect the camera to the 12 VDC power source using the supplied Power Adapter Pigtail or a power adapter. ...
-
Page 14: Accessing The User Interface
Checking the Dynamic IP Address You can look up the IP address and access the Web interface of the camera using the IP Utility (IPU) software included in the software CD or from the Website of EverFocus (click here to download). - Page 15 EZN268 Click OK, the Live View window appears. Note: 1. You might be required to download ActiveX for viewing the camera feed. If asked, click Yes. 2. To enable Remote Live View, Firmware Upgrade and ActiveX Prompt on Internet Explorer, some settings have to be complete. Please refer to 5.2 Settings for Microsoft Internet Explorer in the User’s Manual.
-
Page 16: Settings For Microsoft Internet Explorer
EZN268 Settings for Microsoft Internet Explorer To enable Remote Live View, Firmware Upgrade and ActiveX Prompt on Internet Explorer, some settings have to be complete. Please follow the steps below: 1. On the computer, click Start > Control Panel > System and Security > Action Center (click Change User Account Control Settings), the User Account Control Settings window appears. - Page 17 EZN268 In the Download unsigned ActiveX controls field, select Prompt. In the Include local directory path when uploading files to a server field, select Enable. Click OK. In the Internet Options window, click the Advanced tab and then disable Enable memory protection to help mitigate online attacks. Click OK. ...
-
Page 18: Connecting The Camera To The Network
EZN268 5.3 Connecting the Camera to the Network There are three methods to connect the IP camera to the network: Router or LAN Connection, Direct High‐Speed Connection and One‐to‐One Connection. Router or LAN connection This is the most common connection in which the IP camera is connected to a router and allows multiple users on and off site to see the IP camera on a LAN/WAN (Internet). The camera must be assigned an IP address that is compatible with its LAN. By setting up port forwarding on the router, you can remotely access the cameras from outside of the LAN via the Internet. To remotely access the Web interface of the IP camera, please refer to 6.1.1 Network (DDNS Settings). To set up port forwarding, please consult the manual of the router. ... - Page 19 EZN268 Direct High‐Speed Connection In a Direct High‐Speed Connection, the camera connects directly to a modem without the need for a router. You need to set the static or dynamic WAN IP address assigned by your ISP (Internet Service Provider) in the camera’s configuration web pages. To access the camera, just type “http://xxx.xxx.xxx.xxx”, where xxx.xxx.xxx.xxx is the IP address given by your ISP. If you have a dynamic IP address, this connection may require that you use DDNS for a reliable connection. Please refer to 6.1.1 Network (DDNS Settings). One‐to‐One Connection (Directly from PC to IP Camera) You can connect directly without using a switch, router or modem. However, only the PC connected to the camera will be able to view the IP camera. You will also have to manually assign a compatible IP address to both the computer and the IP camera. Unless the PC has another network connection, the IP camera will be the only network device visible to the PC. See the diagram below: ...
-
Page 20: Live View Window
EZN268 Live View Window 1. Live View Click the Live View button to display the Live View window. If you experience video feed lag time (if connected via Internet), you can reduce the resolution or limit the number of streams. See 6.2.1 Streaming. 2. Snapshot Click the Snapshot button to take a snapshot. Note: For Microsoft IE10 and above users, some settings have to be complete to enable this function (see B. Snapshot/Record error message in 9. Troubleshooting). 3. Record Click the Record button to start / stop recording the current video stream. By default, this icon is only for one‐minute video recording and the recordings will be saved at C:\EverFocus\. To change the recording time, see File Size in 6.1.3 Storage. To change the location, see Record to Local in 6.1.3 Storage. To record long‐period recordings, please set up a recording schedule (Schedule Settings in 6.3.2 Event). To change the source video stream and recording format, see Recording and Snapshot Settings in 6.1.3 Storage. Note: For Microsoft IE10 and above users, some settings have to be complete to enable this ... - Page 21 EZN268 4. Setting Click the Setting button to enter the Settings page (see 6. Settings). 5. Wizard Click the Wizard button to enter the Setup Wizard. 6. Hallway Display (9:16): Click the Rotate button to rotate the live image. This function allows users to monitor vertically‐oriented areas such as hallway, corridors and aisles. Note: To achieve the best 9:16 display effect, it’s recommended to: Install the camera sideways by rotating the camera to the left or right by 90°. 90° Select a 16:9 View Size (e.g. 1920x1080 / 1024x768). Use the Rotate button. 7. Video Stream ...
- Page 22 EZN268 8. View Size Use this to select the appropriate view size and shape of the live view window on the bottom. A smaller size might increase transmission speed and video quality. 9. Language Click the Language drop‐down list to select the desired language. 10. Digital Zoom Click the zoom in / zoom out buttons or roll the mouse wheel to zoom in / out the camera live view. Click the Home button to go back to the home position. Marquee Mode: Select this mode to drag around a portion of the live view window you want to zoom into with your mouse. Normal Mode: Select this mode to set the zoom level in the magnified window. Clicking on the magnified image will re‐center the image around that point. 11. Status Display (info line that can be placed above video box or at bottom of page) This shows the name of the camera that is currently active or being configured, current date/time and current frame rate. You can activate these info displays in the Overlay Text Settings (see 6.1.4 Display and Overlay). ...
-
Page 23: Settings
EZN268 Settings Click the Setting button on the Live View Window to enter the setting submenu. There are two tabs: Basic and Advanced on the left-side bar. You can set up the basic camera settings in the Basic tab. To further set up comprehensive camera settings, click the Advanced tab, which includes all the settings to be configured. -
Page 24: System Settings
EZN268 System Settings 6.1.1 Network... - Page 25 EZN268 【Protocol Settings】You can transmit the data stream from the IP cameras using the RTSP (Real Time Streaming Protocol) on the network. The RTSP is a protocol that allows you to access video streams by using the compatible media players. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings.
- Page 26 From EverFocus: If you choose the EverFocus DDNS server, you can obtain a free host name • from EverFocus. To obtain a free host name from EverFocus, type a desired host name in the textbox, click the Register / Update button, and then click the Apply button.
- Page 27 2. In certain router models, it is possible that you will not be able to access the camera using DDNS while inside the router’s network. Please try using a PC located outside of your router’s network. Default Ports on All EverFocus IP Cameras: HTTP: 80 RTSP: 554 HTTPS: 443 【HTTPS Settings】This function can only be set up in the Advanced tab.
- Page 28 EZN268 1. Select Self-Signed Certificated and fill in the following information. 2. Click the Apply button. The subject line will be displayed in the Install Certificated Info field. 3. Click the Property button, a pop-up window appears to display the details of the certificate.
- Page 29 EZN268 Create Certificate Request You can apply for an official certificate from an issuing Certificate Authority. 1. Select Certificate Request and fill in the following information. 2. Type the required Certificate information and then click the Apply button. The subject line will be displayed in the Created Request field 3.
- Page 30 EZN268 6. In the Install Signed Certificated field, click the Browse button to search for the issued certificate, and then click the Upload button to import the certificate. Once the certificate has been uploaded, this field will show the subject line of the certificate.
-
Page 31: Date / Time
EZN268 6.1.2 Date / Time You can set up the system’s time on this page. 【Date/Time Format Settings】Select the desired Date / Time format and then click the Apply button. To enable displaying the date and time information on the Live View Window, you have to check the Date/Time box in the Overlay Text Settings (see 6.1.4 Display and Overlay). -
Page 32: Storage
EZN268 6.1.3 Storage You can configure the recording path / format, and source video stream settings on this page. 【Record to Local】This function can only be set up in the Advanced tab. You can configure the storage path for storing the recordings / snapshot on your PC. -
Page 33: Display And Overlay
EZN268 6.1.4 Display and Overlay You can configure the recording path / format and source video stream settings on this page. 【Overlay Text Settings】Check the boxes to display the information on the Live View Window. The information will only be displayed on the Live View Window and will not be displayed on the live view video images nor snapshots. To change the foreground color of the text, directly click on the box and then select a color. Select a position where you want the information to be displayed on the Live Window. To change the Machine Name, see Machine Name in 6.1.5 System Maintenance. To change the day and time setting, see 6.1.2 Date / Time. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. ... - Page 34 EZN268 【Video Overlay Settings】Check the boxes to enable displaying video title or date/time on the live view video images. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. Show video title in video and snapshots: Check the box to enable displaying video title on the ...
-
Page 35: System Maintenance
Machine Name field of the IP Utility software, which is included in the software CD or from the to download. Please refer to 5. Accessing the User Interface). Click Website of EverFocus (click here Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. - Page 36 EZN268 【Language Settings】Select the language to be displayed on the Web interface of the IP camera. The default language is English. To add a new language not listed in the current Language list, click the Browse button to locate the new language file (.evb) on your computer and then click the Upload button.
- Page 37 EZN268 Note: 1. Do not disconnect power to the unit during the upgrade sequence. The unit will reboot automatically after the upgrade has completed (1-5 minutes). 2. During the upgrade process, all event recording actions will be stopped. Event recording actions will resume after the camera is rebooted.
-
Page 38: System Information
EZN268 6.1.6 System Information You can see the system information and log information displayed on this page. 【System Status】Displayed the system information. The values cannot be changed on this page. The Uptime represents the period since the camera has been powered on. For example, up 3:08 represents the camera has been powered on for 3 hours and 8 minutes. 【System Log】Displayed the sequence number, date, time and event messages of the log event. The log will display the last 256 log events. Click the Export Log button to export the system log event list into a “.txt” file and select the location where the exported log file will be saved to. Click the Clear Log to erase all the log data from the camera. The system will be required to reboot after clicking the Clear Log button. ... -
Page 39: User
EZN268 6.1.7 User The system administrator can create up to ten user accounts on this page. 【User Management】The system has automatically created ten user accounts. To set up an user account: 1. Highlight a user account and its information will be displayed in the field below the account list. 2. Revise the account name, password and description. Select an authority level for the user account. The deault setting is Supervisor when using user1 account to log in. Administrator: The only difference between a supervisor and administrator is that a supervisor can edit an administrator’s account and password, but an administrator cannot edit the supervisor’s account and password. The supervisor and administrators all have unrestricted access to the Setting submenus and can determine the registration of all other users. ... - Page 40 EZN268 User: A user can not only view the live view but also view/configure the below camera • settings. View Configure System Settings Network Network > Protocol Settings Date/Time Date/Time > Date/Time Format Settings Storage > Record to Local Storage > Record to Local Display and Overlay >...
-
Page 41: Black /White List
EZN268 6.1.8 Black /White List Use this page to specify IP addresses that are allowed / denied to access this camera. By default, any IP address can access the camera. Note: The Allowed IP addresses only become relevant when the Denied items contain a Network or Range, and the supervisor wants to allow one or more IP addresses within that excluded range or network. In such a scenario, the user would enter the excluded range or network for the Denied items, and enter the exceptions for the Allowed items. IP Type: Select IPv4 or IPv6 from the drop‐down list. Permission Type: Select Deny to deny the IP addresses configured below from accessing the camera. The Allow option is only relevant if you’ve set up at least one Deny item configured with Network or Range network rule from the Rule drop‐down list. Rule: Select a network rule and then fill in the IP information in the below boxes. Single: Type a single IP address in the IP Address field below. Network: Type the IP address and subnet mask in the field below. Range: Type a range for the IP addresses. IP Address From: Type an IP address here. ... -
Page 42: Camera Settings
EZN268 Camera Settings You can configure camera related settings, such as video / audio, region of interest and privacy mask. 6.2.1 Streaming 【Stream Settings】This IP camera can output three video streams simultaneously. For each of these streams, the user can set the compression format, resolution, bit rate, and frame rate individually. - Page 43 EZN268 Format: Select the encoding format – H.264, MJPEG or MPEG4. Resolution: Select the most suitable resolution for your needs. Frame Rate: This function can only be set up in the Advanced tab. Select from 1 to 30 fps. Bit Rate: This function can only be set up in the Advanced tab. If required, select whether you want the stream to stream a Constant Bit Rate or a Variable Bit Rate, and set the values of whichever option you choose.
- Page 44 EZN268 【Privacy Mask Settings】This function can only be set up in the Advanced tab. The Privacy Mask can block out sensitive areas from view, covering the areas with colored or black and white boxes in both live view and recorded clips. This feature is useful when users’ don’t want the sensitive information visible.
-
Page 45: Profile
EZN268 6.2.2 Profile The Profile Settings is designed with four camera modes, which can be applied in various scenes to enhance image quality. You can apply different camera modes to the daytime and nighttime. 【Day Mode】Select a camera mode and then click the Apply button to save the settings. - Page 46 EZN268 【Night Mode】Select a camera mode and then click the Apply button to save the settings. Vivid: Select Vivid mode to have images with optimized contrast ratio. You can further configure the camera settings on the Camera setup page if required. Note that selecting the Vivid mode will lock (grayed-out) some Camera Settings on the Camera setup page such as Exposure Settings (AE), Noise Reduction Settings and Monitor Settings.
-
Page 47: Camera
EZN268 6.2.3 Camera 【Day/Night Settings】 Mode: Select a mode from the drop‐down list. Auto: Select to let the camera automatically switch to Night mode (black and white images with IR LED on) when the light levels fall to a specified level, and back to Day mode (color images) when the light levels rise to a specified level. Day: Select to keep the camera in Day mode (color images with IR LED off), even in nighttime. Night: Select to keep the camera in Night mode (black and white images with IR LED on), even in daytime. Schedule: Select to let the camera to switch to Day mode or Night mode (IR LED on) based on the day and night schedule settings (see 6.2.4 Schedule). Auto mode without IR LED: Select to let the camera automatically switch to Night mode (black and white images with IR LED off) when the light levels fall to a specified level, and back to Day mode (color) when the light levels rise to a specified level. ... - Page 48 EZN268 Night mode without IR LED: Select to keep the camera in Night mode (black and white images with IR LED off), even in daytime. Schedule without IR LED: Select to let the camera to switch to Day mode or Night mode (IR LED off) based on the day and night schedule settings (see 6.2.4 Schedule). D/N Level: This function can only be activated if you select Auto / Auto mode without IR LED mode in the Day/Night Settings field. Adjust the level (0 ‐ 46 lux) for the camera to switch from Day mode to Night mode based on the light level detected by the Light Sensor. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. Day Profile/ Night Profile: Select Day Profile to configure the following settings for daytime and select Night Profile to configure the following settings for nighttime. Click the Apply button to save the settings. Note: Some settings in the Exposure Settings / Features may be grayed‐out. To configure all the settings, select User Define from the Day Mode / Night Mode drop‐down list (see 6.2.2 Profile). 【Exposure Settings】This function can only be set up in the Advanced tab and can only be activated when you select User Define from the Day Mode / Night Mode drop‐down list (see 6.2.2 Profile). This setting is used to adapt to the amount or type of light used by the camera. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. Mode: Select a mode from the drop‐down list. Auto: Selecting Auto for the camera to automatically adjust the Shutter based on the ...
- Page 49 EZN268 【Backlight Compensation Settings】Backlight Compensation Settings is used to make the subject appear clearer when it is set against a bright background. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. OFF: Select to switch Back Light Compensation functions off. ON (BLC): This option is useful when the background of the subject is very bright and the subject itself is dark. The BLC will measure the light of the image center and the lens iris will automatically set for optimal image quality. BLC Edit Mode: Click the Enable button, the BLC grids appear on the image. Click on the grids to enable / disable the BLC function. The selected grids (in green) will be applied with the BLC function. 【Features】This function can only be set up in the Advanced tab. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. Noise Reduction (NR): This limits the amount of digital “video noise” that is usually found in any video stream, and helps to reduce file size. Select Manual /Auto to enable / disable the Noise Reduction function. Slide the Level bar to set up the level. The higher the level, the more the reduction. 2D DNR: Select Manual to enable the 2D DNR function and use the slide bar to set up the level. The greater the value, the more the reduction. Select Auto for the system to automatically adjust to the optimal 2D DNR value. Level: Slide bar to set up 2D DNR level. 3D DNR: Select Manual to enable the 3D DNR function and use the slide bar to set up the level. The greater the value, the more the reduction. Select Auto for the system to automatically adjust ...
-
Page 50: Schedule
EZN268 6.2.4 Schedule The Schedule setup page is designed for users to configure the daytime and nighttime of each day. The Schedule setting is only functional if you select Schedule from the D/N Mode drop-down list on the Camera setup page. -
Page 51: Image
EZN268 6.2.5 Image This function can only be set up in the Advanced tab. 【Orientation Settings】 Enable Mirror: Check the box to enable the mirror function. The image will be rotated horizontally around a vertical axis. Enable Flip: Check the box to enable the flip function. The image will be rotated vertically around a horizontal axis. 【Image Settings】Select Day Profile or Night Profile and then adjust the slide bars below to configure the Brightness and Sharpness for daytime or nighttime. IR Smart Settings: Select ON and set up the level to enhance the image quality when the images are over exposure. This function is useful when the camera is in the Night mode. 【Color Settings】Slide the bar to adjust the saturation. 【White Balance Settings】Select a mode that delivers the best image quality for the camera’s light environment. Auto: Select to let the camera automatically adjust the White Balance. In the Auto mode the camera computes the white balance value output using color information from the entire screen. It outputs the proper value using the color temperature radiating from a black subject based on ... - Page 52 EZN268 a range of value from 3000 to 7500K. Manual: Select to adjust the Red and Blue values yourself in the fields below this field. One Push: Select to enable the Push button next to the Mode drop‐down field. This will allow you to force the camera to readjust the white balance every time you push the Push button. The lens will hold the same focal position until the next trigger command is received. This function helps to prevent incorrect focusing in dark environments. ...
-
Page 53: Event Settings
EZN268 Event Settings You can set up the Motion Detection event or Tampering Detection event to automatically notify the users when an event occurs. You can also set up a schedule to automatically record the videos when an event occurs. -
Page 54: Event
EZN268 6.3.2 Event This function can only be set up in the Advanced tab. Except the Event Wizard, you can also configure the event settings along with the Recording Schedule on this page. - Page 55 EZN268 【Event Management】You can set up the events such as Motion Detection or Tampering Detection to automatically notify the users when an event occurs. Event Name: Type an event name. Event Trigger Type: Select an event for the to‐be‐specified‐below reaction/s. Manual Trigger: Select this option if you want to manually trigger the alarm by clicking the Trigger Event button on the Live View Page. Motion Detection: Select this option to trigger the to‐be‐specified‐below reaction/s when motion events occur. You have to pre‐configure the Motion Settings for this function to work. Schedule Recording: Select this option if you want the Schedule Recording periods configured in the Schedule Settings to activate this event. In this scenario, a preconfigured event reaction like a log entry will list the start and end times of each period. Actual recording will only be triggered if the event is preconfigured to do so. Tampering Detection: Select this option if you want the camera’s tampering detection sensor to trigger the to‐be‐specified‐below reaction/s. You can set up the tamper duration time in the Event Trigger Settings field below. Enable This Event: Check the box to activate the event. For the Tampering Detection trigger type, multiple events can be created on the Event List but only one event can be enabled. For example, if you create three Tampering Detection trigger events, only one event under this trigger type can be enabled. The option of Enable This Event for the rest of two Tampering ...
- Page 56 EZN268 Upload to FTP: Check the box if you want the camera to upload the recordings to the FTP server entered in the FTP Repository Settings (see 6.3.3 Notification). Network Alarm: Check the box if you want the camera to send a network alarm signal (when the event occurs) to the CMS servers. Note that you have to configure the Network Alarm Settings for this function to work (see 6.3.3 Notification). : Set up the Event information and click the Create button, the created Event information will be listed in the Event List. : Highlight an item in the Event List and then click the Remove button to remove the highlighted item. : Highlight an item in the Event List and edit the Event information on the left‐side. Click the Edit button and the item will be edited. : Click the button to cancel the changes and return to the previous settings. 【Tamper Detection Settings】 Tamper Duration Time: Set up a duration time between 10 and 120 seconds. 【Trigger Options Settings】 Pre‐trigger Buffer: Select the duration for the buffer. This will determine the amount of footage (length of time) before the event trigger moment that will be included in an event‐triggered video recording, if that buffer and video recording has been enabled in the Event Management field. ...
- Page 57 EZN268 Event + Schedule (Yellow): Select for the camera to active both of the configured Event and Schedule Recordings. Deselect (Grey): Select for the camera to stop recording. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. 【Motion Settings】Use this page to configure up to four areas in which motion will be detected. When a motion is detected by the camera, the motion detection icon will appear at the top right corner on the Live page to alert the user. This function can also be linked with correctly configured Events to trigger Event reactions like the activation of video recording periods, snapshots, etc. To set up the Motion area: Check the Enable box to enable the selected area. Select a sensitivity value of the motion detection sensor function. Click the Draw button and move the cursor on the left‐side live image. Move the cursor to the position where you want the motion rectangle to start and then click. Move the cursor to the position (diagonally opposing corner) where you want the motion rectangle to end and then click. Click the Apply button to apply the settings, or click the Cancel button to reset without saving the settings. ...
-
Page 58: Notification
EZN268 6.3.3 Notification This function can only be set up in the Advanced tab. - Page 59 EZN268 【SMTP (Email) Settings】This area is for configuring the mail server that is used to send e-mail text notifications and one image file from the camera to predefined addresses via SMTP. Note that to enable e-mail notification function, you have to check the Send Mail Notification box in the Event Management field (see 6.3.2 Event).
- Page 60 Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. 【Network Alarm Settings】 This function works with EverFocus CMS software. The camera can send a network alarm signal (when the event occurs) to the CMS servers. To establish the connection between the camera and CMS servers, the protocol and port number should match with each other.
-
Page 61: Link To Smart Phone App
EZN268 Link to Smart Phone App You can access camera live view or take a snapshot via your smart phone. This page is designed for users to download the mobile app to your mobile phone by scanning the QR code. -
Page 62: Upgrading Firmware Using Ip Utility
EZN268 Upgrading Firmware Using IP Utility You can upgrade the Firmware using the IP Utility software included in the software CD or from the Website of EverFocus (click here to download). Save IP Utility Setup AutoRun.exe in your computer. Double click the .exe file and follow the on-screen instructions. - Page 63 EZN268 Note: The default user ID is user1 and the default password is 11111111. If you select more than one camera that has the same user ID / password, you will be able to log in several cameras at once.
-
Page 64: Specifications
EZN268 Specifications EZN268 Model Camera Image Sensor 1/2.8” SONY Progressive Scan CMOS Sensor Megapixel 2 MP Color: 0.2 Lux at F1.4 Min. Illumination B/W: 0.05 Lux at F1.4 0 Lus at F1.4 (IR LEDs on) Electronic Shutter 8.5~1/60,000sec. Scanning System... - Page 65 EZN268 TCP / IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP, Supported Protocols HTTP, HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP, IGMP,SSL, ICMP, ARP, ONVIF, PSIA, QoS Bandwidth control Min. 256 k Byte / sec adjustable...
-
Page 66: Troubleshooting
EZN268 Troubleshooting Error messages pop up A. When these error messages pop up, follow the steps below to fix the problem. 1. To enter the Registry Editor of your computer: Click Start and type “regedit” in the Search Program and Files field. - Page 67 EZN268 3. Find the KeepAlive Timeout Dword by following the path: \HKEY_CURRENT_USER\Sofware\Microsoft\Windows\CurrentVersion\Internet Settings 4. Double-click KeepAlive Timeout and this window appears. 5. Change the Value data to 480000 and click OK.
- Page 68 EZN268 B. Snapshot / Record error message. For Microsoft IE10 and above users, you may have the above error message pop up when you click the Snapshot button on the Live View window. You can simply solve this problem by setting up your...
-
Page 69: Appendix
EZN268 Appendix Enabling the Multicast Function The Multicast Function is a technique for one‐to‐many communication over an IP infrastructure in a network that is designed to share IP camera loading and reduce network bandwidth. Note that for this function to work, the router / switch must support multicast function. ... - Page 70 (Advanced tab > Network> Multicast Settings> Enable Multicast) 4. Go to the setting page of the router/switch to enable the Multicast function. Here we use a D-Link DIR655 router and EverFocus 24-port switch for example. 5. The Multicast function setup is now complete.
- Page 71 Mumbai 400 051, India TEL: +91 22 6726 4500 FAX: +91 22 6726 4518 www.everfocus.in sales@everfocus.in Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
