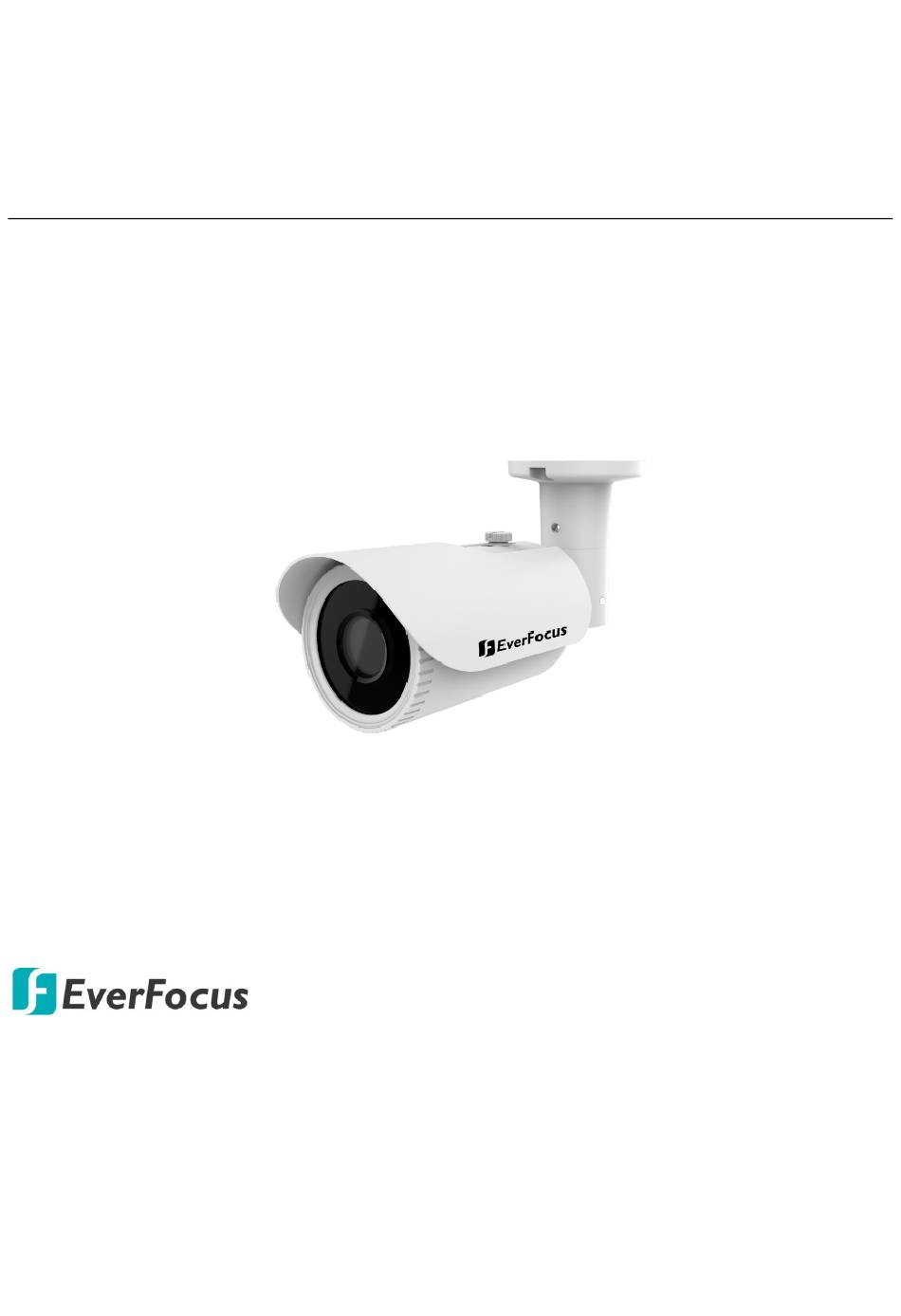

EZA2880 eZ.HD Series
8MP Dual Power IP66 IR Bullet Camera
User's Manual
Copyright © EverFocus Electronics Corp.
Release Date: May, 2019
All the images including product pictures or screen shots in this document are for example
only. The images may vary depending on the product and software version. Information
contained in this document is subject to change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw
Advertisement
Table of Contents
Related Manuals for EverFocus EZA2880 eZ.HD Series
Summary of Contents for EverFocus EZA2880 eZ.HD Series
- Page 1 The images may vary depending on the product and software version. Information contained in this document is subject to change without notice. EverFocus Taiwan: 2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw...
- Page 2 1. Introduction Equipped with a 8MP CMOS sensor, the EZA2880 deliver 8MP image quality. The model provides motorized 3.6-11mm lens with ICR. Featured with True Wide Dynamic Range (T-WDR), the camera can provide clear images even under backlight circumstances where intensity of illumination can vary excessively.
- Page 3 1.4 Optional Accessory BAE3201 Color: White Size (Φ x H): 138 x 54mm / 5.43” x 2.16” Weight: 700g / 1.87 Material: Metal 1.5 Cable Description 12VDC or 24VAC Power Cable Video Output Cable (BNC, 75Ohm) 2. Installation 1. Stick the supplied Mounting Sticker to the surface to mark the 3 screw positions.
- Page 4 Switching Video Format: Push the joystick up for 5 sec. to switch to • AHD. Push the joystick right for 5 sec. to switch to • TVI. Push the joystick down for 5 sec. to switch to • CVI. Push the joystick left for 5 sec. to switch to •...
- Page 5 3. Configuration in the OSD Menu No Main Sub Menu Sub Menu / Function AF Mode One Shot, Manual Motorized D&N Filter Sync On, Sync Off Initial Brightness 0-20 Auto Mode Normal / Deblur 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, Shutter Manual Speed...
- Page 6 D>N Thres 0-20 N>D Thres 0-20 Delay High, Middle, Low IR LED Adaptive, Off Anti-Sat. 0-20 Extern SW High, Low Extern D>N Thres 0-20 N>D Thres 0-20 Delay High, Middle, Low Auto Autoext Preset Color C-Temp 3000K, 5000K, 8000K Manual R-Gain 0-20 B-Gain...
- Page 7 CR Level 0-20 Trans Window Use Window Zone On, Off Det H-POS 0-96 Det Window Det V-POS 0-56 Det H-Size 0-96 Motion Det V-Size 0-56 Sensitivity 0-10 Motion OSD On, Off Text Alarm On, Off Signal Out On, Off Frame Rate 4K/15fps, 4MP/30fps, 1080p/30fps Freq 60Hz (Auto Detection)
