EBA1540 eZ.HD Series

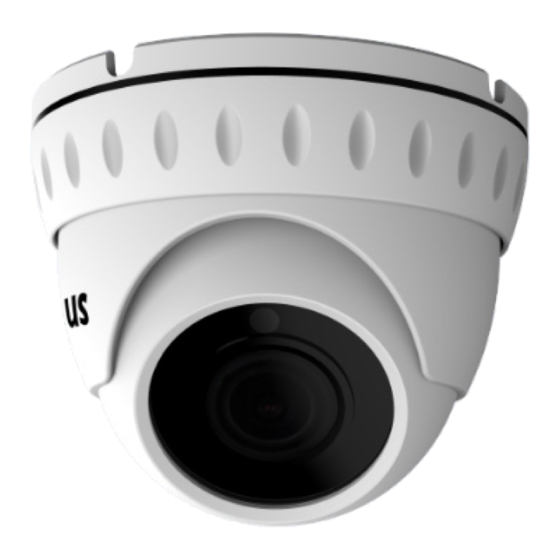

5MP, IP66 IR Dome Camera
User's Manual
Copyright © EverFocus Electronics Corp.
Release Date: May, 2019
All the images including product pictures or screen shots in this document are for example
only. The images may vary depending on the product and software version. Information
contained in this document is subject to change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eZ.HD Series and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus eZ.HD Series

Summary of Contents for EverFocus eZ.HD Series

  • Page 1 The images may vary depending on the product and software version. Information contained in this document is subject to change without notice. EverFocus Taiwan: 2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw...
  • Page 2 All manuals and user guides at all-guides.com 1. Introduction EverFocus eZ.HD series cameras – EBA1540 deliver 5MP image quality. The model is equipped with Sony STARVIS CMOS sensor and provides 3.6mm fixed lens with ICR. Featured with True Wide Dynamic Range (T-WDR), the camera can provide clear images even under backlight circumstances where intensity of illumination can vary excessively.
  • Page 3 All manuals and user guides at all-guides.com 1.4 Optional Accessory BA-E310 Color / Material: White / Metal Size (Φ x H): 101 x 52mm / 3.98” x 2” Weight: 540g / 1.2lb BA-E173 Color / Material: White / Metal Size (W x D x H): 173 x 111 x 114mm / 6.81”x 4.37”x 4.49” Weight: 700g / 1.5lb 1.5 Cable Description 12VDC...
  • Page 4 All manuals and user guides at all-guides.com 3. Screw the Camera Base to the surface with the supplied four Screws. a. If you want to wire the cables from the Side Cut on the Camera Base: Attach the Camera Body to the Camera Base and run the cables through the Camera Base, and then place the cable under the Side Cut.
  • Page 5 All manuals and user guides at all-guides.com 4. Screw back the Outer Housing and adjust the camera angle simultaneously. ° ° ° 5. Connect the Power Cable to a 12VDC power source. Connect the Video Output Cable to a monitor or DVR. 6.
  • Page 6 All manuals and user guides at all-guides.com 3. Configuration in the OSD Menu No Main Sub Menu Sub Menu / Function Level 0-10 YEL, CYN, GRN, MAG, RED, BLU, BLK, Edge Det Color Brightness 0-20 Auto Mode Normal / Deblur 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, Shutter...
  • Page 7 All manuals and user guides at all-guides.com Anti-Sat. 0-20 D>N Thres 0-20 N>D Thres 0-20 Delay High, Middle, Low IR LED Adaptive, Off Anti-Sat. 0-20 Extern SW High, Low Extern D>N Thres 0-20 N>D Thres 0-20 Delay High, Middle, Low Auto Autoext Preset...
  • Page 8 All manuals and user guides at all-guides.com CB Level 0-20 CR Level 0-20 Trans Window Use Window Zone On, Off Det H-POS 0-80 Det Window Det V-POS 0-60 Det H-Size 0-80 Motion Det V-Size 0-60 Sensitivity 0-10 Motion OSD On, Off Text Alarm On, Off Signal Out...
