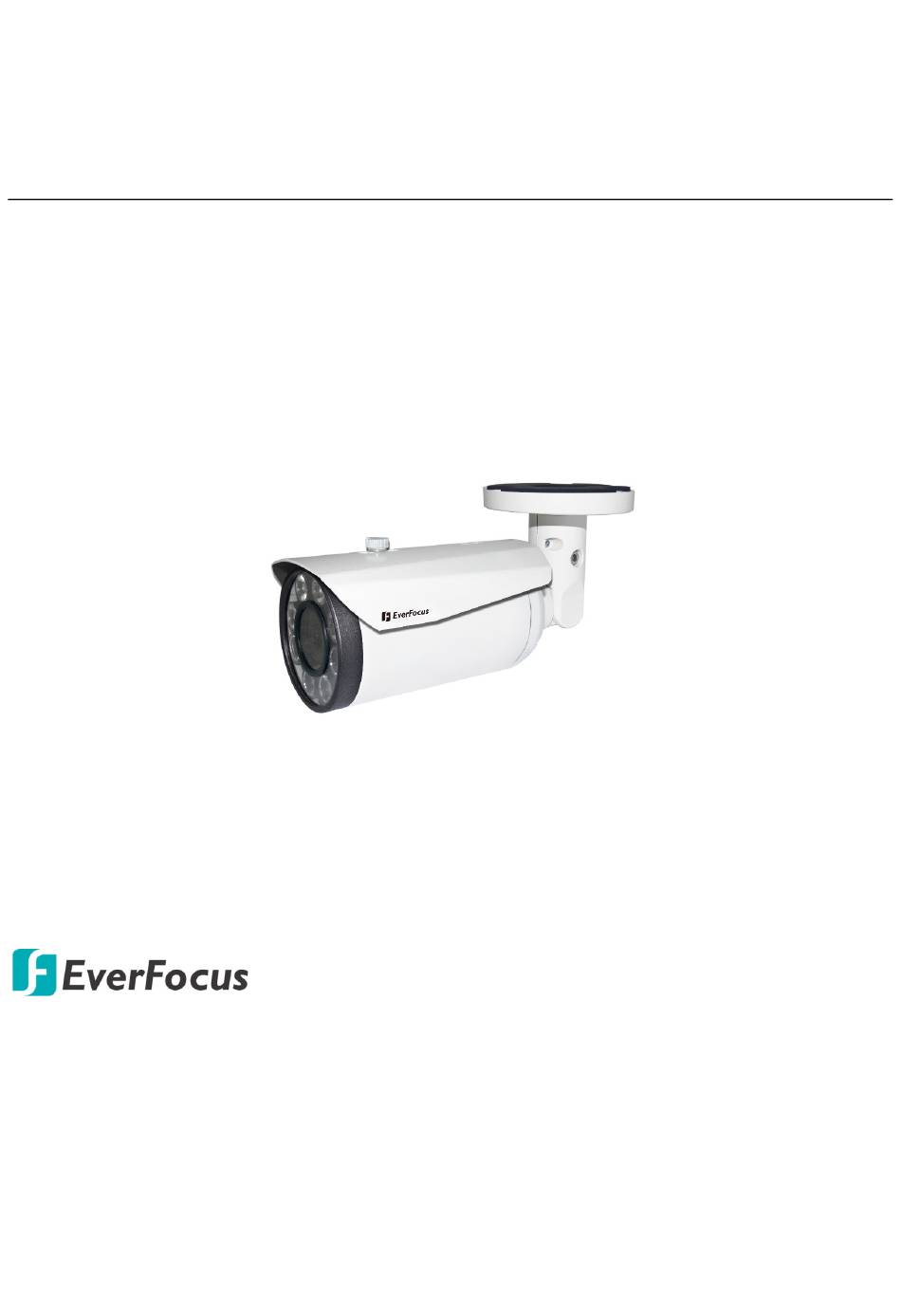

EZA1281 eZ.HD Series
1080p Dual Power FHD IP66 IR Bullet Camera
User's Manual
Copyright © EverFocus Electronics Corp.
Release Date: November, 2022
All the images including product pictures or screen shots in this document are for example
only. The images may vary depending on the product and software version. Information
contained in this document is subject to change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw
Advertisement
Table of Contents
Related Manuals for EverFocus EZA1281 eZ.HD Series
Summary of Contents for EverFocus EZA1281 eZ.HD Series
- Page 1 The images may vary depending on the product and software version. Information contained in this document is subject to change without notice. EverFocus Taiwan: 2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw...
- Page 2 1. Introduction Equipped with a 1080p Sony STARVIS CMOS sensor, the EZA1281 deliver 1080p full HD image quality. The model provides 2.8-12mm lens with ICR. Featured with Digital Wide Dynamic Range (D-WDR), the camera can provide clear images even under backlight circumstances where intensity of illumination can vary excessively.
- Page 3 1.3 Dimensions 1.4 Optional Accessory BA-E320-I Color: White Size: Φ93 x 45(H)mm Weight: 500g Material: Metal 1.5 Cable Description Power Cable Video Output Cable No. Name Descriptions Power Cable Connects to a 12VDC / 24VAC power source. 1080p output, using a 75 Ohm BNC-type coaxial Video Output cable.
- Page 4 2. Installation 1. Stick the supplied Mounting Sticker to the surface to mark the 3 screw positions. Drill 3 holes on the surface and insert the supplied 3 Screw Anchors into the screw holes. If you want to run the cable through the surface, drill a hole within the 3 screw area.
- Page 5 5. You can optionally adjust camera angles. Loosen th e brac ket screw , the housing can be adjusted into horizontal for 180° , up and down for 90° , the bracket base can be adjusted into horizontal for 360° 3.
- Page 8 FAX: +81 (3) 4363-2790 sales@everfocus.com www.everfocus.co.jp sales@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
