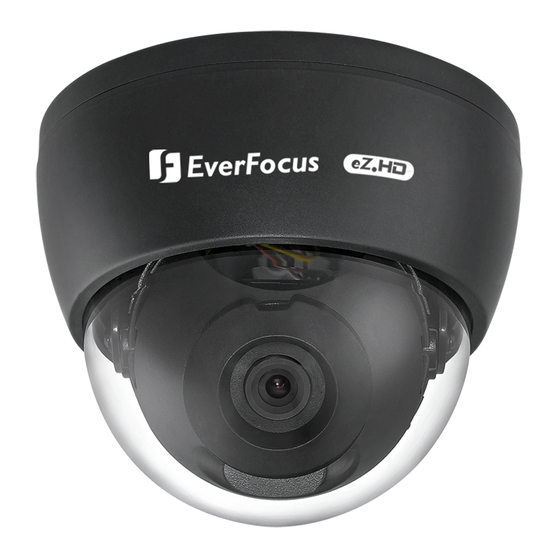

- Page 1 ECD900F eZ.HD Series 1080p Full High Definition True Day/Night Indoor Dome Camera User’s Manual Copyright © EverFocus Electronics Corp. Release Date: February 2016...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. Introduction........................5 Packing List ........................5 Features .......................... 5 2. Cable Description ......................6 3. Installation ........................7 Installation and Adjustment ................... 7 4. Configuration in the OSD Menu ..................9 5. Specifications ........................13... -
Page 5: Introduction
The true day/night function guarantees ZERO ghosting in low light environment. The ECD900F is equipped with a 3 Axis rotation mechanical design that delivers wall or ceiling mounting flexibility. This is the camera that you have been waiting for to create analog CCTV systems that produce astounding image clarity in a wide range of indoor applications at the widest range of light levels. -
Page 6: Cable Description
ECD900F eZ.HD Mini Dome Camera 2. Cable Description Name Descriptions Power Cable Connect to a 12VDC. 1080p, 720p and 960H output, using a 75 Ohm BNC-type Video Output coaxial cable. Optional power pigtail cable. The red wire is positive (+);... -
Page 7: Installation
ECD900F eZ.HD Mini Dome Camera 3. Installation 3.1 Installation and Adjustment Stick the Template Plate on the position where you want to attach the camera. Drill three holes on the template for screwing the camera with the supplied screws and anchors. - Page 8 ECD900F eZ.HD Mini Dome Camera Connect the camera to the 12VDC power source and an AHD DVR. Configure the OSD Menu, using the function button. Note: The function button is using to control direction, and also to switch video format and video output.
-
Page 9: Configuration In The Osd Menu
ECD900F eZ.HD Mini Dome Camera 4. Configuration in the OSD Menu You can use the function buttons on the rear panel of the camera body to configure camera settings in the OSD menu: Main Sub Menu Sub Menu / Function... - Page 10 ECD900F eZ.HD Mini Dome Camera Outdoor Blue 1-500 Manual 0-100 D→N(Delay) 0-60 N→D(Delay) 0-60 D→N(AGC) 1-255 D→N(Delay) 0-60 Auto N→D(AGC) 1-255 N→D(Delay) 0-60 Day & Color Night Burst Off/On Level 0-15 IR Smart Position, Size,↑,↓, Area →,← IR PWM 0-100...
- Page 11 ECD900F eZ.HD Mini Dome Camera Default Select Area1,Area2,Area3,Area4 Position, Size,↑,↓, Color →,← Display Position, Size,↑,↓, Mosaic →,← Privacy Position, Size,↑,↓, →,← White, Black, Red, Blue, CYAN, Color Yellow, Green 1.00,0.75,0.50, Trans 0.25 Default Language ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR Live DPC AGC level 0-255...
- Page 12 ECD900F eZ.HD Mini Dome Camera Level 0-10 Sharpness Auto Start AGC 0-255 End AGC 0-255 Black Level 0-60 Blue Gain 0-100 Red Gain 0-255 Adjust User,0.45,0.50,0.55,0.60,0.65,0.70,0. Monitor Gamma 75,0.80,0.85,0.90, 0.95,1.00 Blue Gain 0-100 Red Gain 0-100 Off/On Video. Out PAL/NTSC Exit Save&...
-
Page 13: Specifications
ECD900F eZ.HD Mini Dome Camera 5. Specifications ECD900F Pickup Device 1/2.9" SONY 2.24M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Effective Pixels 1920 (H)*1080 (V) Scanning System Progressive Scan Sensitivity 0.01 Lux/F1.4 S/N Ratio Over 48 dB (AGC OFF) - Page 14 ECD900F eZ.HD Mini Dome Camera EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe - Germany: 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Albert-Einstein-Strasse 1, D-46446 Hsi-Chih, New Taipei City, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940...
