RECOMMENDATION
CLEAN THE TRANSCEIVER THOROUGHLY WITH
FRESH WATER after exposure to saltwater, and dry
it before operating. Otherwise, the transceiver's keys,
switches and controllers may become unusable due to
salt crystallization.
NOTE: DO NOT submerge the transceiver in water if
you suspect the waterproof protection may not be ef-
fective, especially after one of the following:
• The transceiver has been dropped
• The transceiver's case or the waterproof seal is
cracked or damaged
• he jack cover or the optional HM-168LWP is de- T
tached from the transceiver

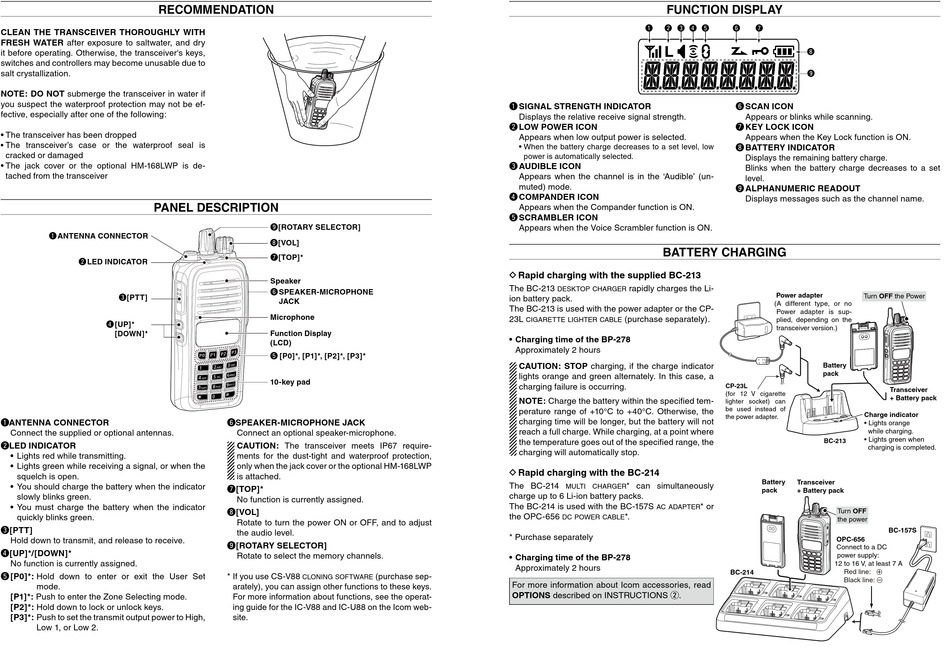

PANEL DESCRIPTION

q ANTENNA CONNECTOR
w LED INDICATOR
e[PTT]
r [UP]*
[DOWN]*
[DC] jack
qANTENNA CONNECTOR
Connect the supplied or optional antennas.
wLED INDICATOR
CP-24
• Lights red while transmitting.
• Lights green while receiving a signal, or when the
Power OFF
squelch is open.
• You should charge the battery when the indicator
To a cigarette lighter
socket (12/24 V DC)
slowly blinks green.
• You must charge the battery when the indicator
quickly blinks green.
e[PTT]
Hold down to transmit, and release to receive.
r[UP]*/[DOWN]*
No function is currently assigned.
t [P0]*: Hold down to enter or exit the User Set
Fuse (2 A /250 V)
mode.
[P1]*: Push to enter the Zone Selecting mode.
[P2]*: Hold down to lock or unlock keys.
[P3]*: Push to set the transmit output power to High,
Low 1, or Low 2.
Clean with water
o [ROTARY SELECTOR]
i[VOL]
u[TOP]*
Speaker
y SPEAKER-MICROPHONE
JACK
Microphone

Function Display

(LCD)
t [P0]*, [P1]*, [P2]*, [P3]*
10-key pad
ySPEAKER-MICROPHONE JACK
Connect an optional speaker-microphone.
CAUTION: The transceiver meets IP67 require-
ments for the dust-tight and waterproof protection,
only when the jack cover or the optional HM-168LWP
is attached.
u[TOP]*
No function is currently assigned.
i[VOL]
Rotate to turn the power ON or OFF, and to adjust
the audio level.
o[ROTARY SELECTOR]
Rotate to select the memory channels.
* If you use CS-V88 (purchase sep-
cloning software
arately), you can assign other functions to these keys.
For more information about functions, see the operat-
ing guide for the IC-V88 and IC-U88 on the Icom web-
site.
Basic operation
y Push to
transmit.
u Release to
w Adjust the
receive.
volume and
squelch level.
Microphone
r Set channel.
q SIGNAL STRENGTH INDICATOR
Displays the relative receive signal strength.
w
Enter the volume
q Power ON.
w LOW POWER ICON
and squelch ad-
justment mode. Appears when low output power is selected.
t Set output
• When the battery charge decreases to a set level, low
power.
power is automatically selected.
e AUDIBLE ICON
Appears when the channel is in the 'Audible' (un-
muted) mode.
r COMPANDER ICON
Appears when the Compander function is ON.
t SCRAMBLER ICON
Appears when the Voice Scrambler function is ON.
D Rapid charging with the supplied BC-213
The BC-213 rapidly charges the Li-
desktop charger
ion battery pack.
The BC-213 is used with the power adapter or the CP-
23L (purchase separately).
cigarette lighter cable
• Charging time of the BP-278
Approximately 2 hours
CAUTION: STOP charging, if the charge indicator
lights orange and green alternately. In this case, a
charging failure is occurring.
NOTE: Charge the battery within the specified tem-
perature range of +10°C to +40°C. Otherwise, the
charging time will be longer, but the battery will not
reach a full charge. While charging, at a point where
the temperature goes out of the specified range, the
charging will automatically stop.
D Rapid charging with the BC-214
The BC-214 * can simultaneously
multi charger
charge up to 6 Li-ion battery packs.
The BC-214 is used with the BC-157S
the OPC-656 *.
dc power cable
* Purchase separately
• Charging time of the BP-278
Approximately 2 hours
For more information about Icom accessories, read
OPTIONS described on INSTRUCTIONS w.
FUNCTION DISPLAY
q w e r t y u
i
o
y SCAN ICON
Appears or blinks while scanning.
u KEY LOCK ICON
Appears when the Key Lock function is ON.
i BATTERY INDICATOR
Displays the remaining battery charge.
Blinks when the battery charge decreases to a set
level.
o ALPHANUMERIC READOUT
Displays messages such as the channel name.

BATTERY CHARGING

Power adapter
(A different type, or no
Power adapter is sup-
plied, depending on the
transceiver version.)
Battery
pack
CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the power adapter.
BC-213
Battery
Transceiver
pack
+ Battery pack
* or
ac adapter
BC-214
Turn OFF the Power
Transceiver
+ Battery pack
Charge indicator
• Lights orange
while charging.
• Lights green when
charging is completed.
Turn OFF
the power
BC-157S
OPC-656
Connect to a DC
power supply:
12 to 16 V, at least 7 A
Red line: +
Black line: _
