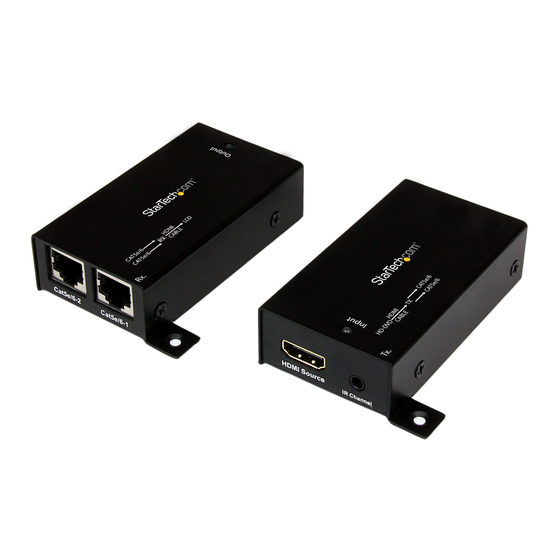

HDMI® over Cat 5e/6 Extender - 30m
ST121SHD30
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/10/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com ST121SHD30
Summary of Contents for StarTech.com ST121SHD30
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/10/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Preparing Your Site ................3 Hardware Installation ................3 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Product Diagram
Product Diagram Front View Transmitter Unit Receiver Unit HDMI In IR Channel HDMI Out IR Channel Rear View Transmitter Unit Receiver Unit LINK OUT LINK OUT LINK IN LINK IN A (RJ-45) B (RJ-45) A (RJ-45) B (RJ-45) Instruction Manual... -
Page 5: Introduction
Introduction The ST121SHD30 HDMI® over CAT5e/6 Video Extender kit lets you extend HDMI video and audio up to 100 feet (30 Meters) over 2 CAT5e/6 Ethernet cables. With Power Over Cable (POC) no power adapter is required at either the extender or receiver. -
Page 6: Preparing Your Site
Connect an HDMI® cable from the video source device (i.e. computer, Blu-ray Player) to the “HDMI® IN” on the Transmitter Unit. c) (Optional) If using the ST121SHD30 to extend an infrared (IR) device signal. Connect the IR Receiver Cable to the IR Channel on the Transmitter Unit, and Position the extended IR sensor directly in front of the video source’s IR sensor. - Page 7 Connect the video source to the HDMI® OUT on the Receiver Unit using an HDMI® cable. c) (Optional) If using the ST121SHD30 to extend an infrared (IR) device signal. Connect the IR Receiver Cable to the IR IN 1 on the Transmitter Unit, and Position the IR sensor where the remote control will point.
-
Page 8: Specifications
Specifications AV Input HDMI AV Output HDMI Cabling CAT 5e/6 UTP Audio 1x HDMI (19 pin) Female Local Unit Connectors 2x RJ-45 Female 1x IR 3.5mm 1x HDMI (19 pin) Female Remote Unit Connectors 2x RJ-45 Female 1x IR 3.5mm Maximum Data Transfer Rate HDMI - 3.4Gbps Max Distance... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
