HDMI® over Fiber Video Extender with IR
ST121HDFXA
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/31/2013
Advertisement
Related Manuals for StarTech.com ST121HDFXA
Summary of Contents for StarTech.com ST121HDFXA

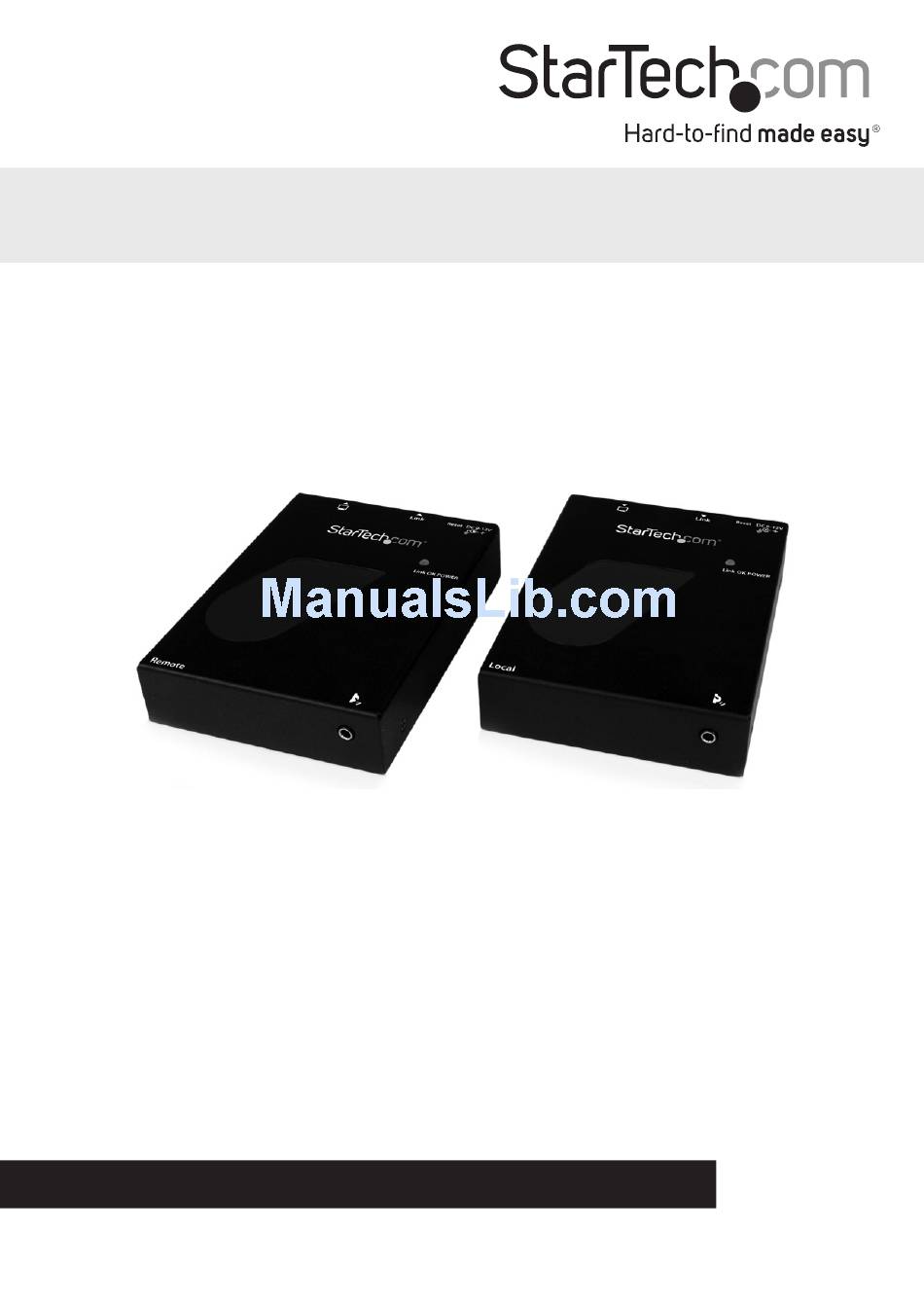

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/31/2013...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Preparing Your Site ................4 Hardware Installation ................4 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction

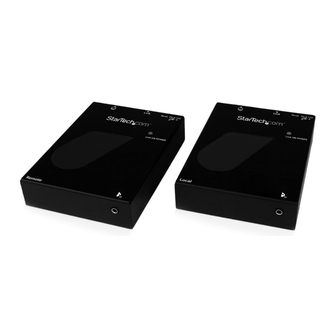

Introduction The ST121HDFXA is a long-range HDMI® video extender kit that uses SC fiber optic cable to extend video / audio from an HDMI®-equipped device up to 2600 feet (800 Meters) to a remote display. The extender supports full High-Definition video (1920x1200 / 1080p), and includes both the transmitter and receiver, for a complete ready-to-use digital signage solution. - Page 5 Front View – Transmitter 1. IR Transmitter Port Front View – Receiver Unit 1. IR Receiver Port Instruction Manual...
- Page 6 Rear View – Transmitter 1. Power jack (12V DC) 2. LINK (SC-SC Fiber Connector) 3. HDMI IN Rear View – Receiver Unit 1. Power jack (12V DC) 2. LINK (SC-SC Fiber Connector) 3. HDMI OUT Instruction Manual...
-
Page 7: Preparing Your Site
Player) to the “HDMI® IN” on the Transmitter Unit. c) Connect the provided Transmitter Unit power supply. d) (Optional) If using the ST121HDFXA to extend an infrared (IR) device signal. Connect the IR Transmitter Cable to the IR Transmitter port on the Transmitter Unit, and Position the extended IR sensor directly in front of the video source’s IR sensor. - Page 8 Connect the video source to the HDMI® OUT on the Receiver Unit using an HDMI® cable. c) (Optional) If using the ST121HDFXA to extend an infrared (IR) device signal. Connect the IR Receiver Cable to the IR Receiver on the Receiver Unit, and Position the IR sensor where the remote control will point.
-
Page 9: Specifications
Specifications 1x HDMI (19 pin) Female Local Unit Connectors 1x Fiber Optic SC Female 1x IrDA (Infrared; SIR/FIR) Female 1x HDMI (19 pin) Female Remote Unit Connectors 1x Fiber Optic SC Female 1x IrDA (Infrared; SIR/FIR) Female Maximum Data Transfer Rate HDMI®... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
