Instruction Manual
VGA over Cat5 UTP Extender
VGA over Cat5 UTP Transmitter
VGA over Cat5 UTP Receiver
VGA over Cat5 UTP Extender
ST1214T
ST121R
Instruction Manual
ST121EXT

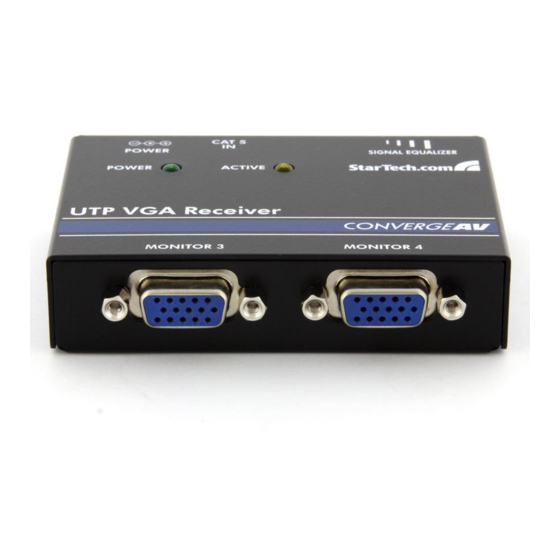

Actual product may vary from photo
Advertisement
Related Manuals for StarTech.com ST1214T
Summary of Contents for StarTech.com ST1214T
- Page 1 VGA over Cat5 UTP Extender VGA over Cat5 UTP Transmitter VGA over Cat5 UTP Receiver VGA over Cat5 UTP Extender ST1214T ST121R Instruction Manual ST121EXT Actual product may vary from photo...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
- Page 3 Installation ............2 ST1214T (local) and ST121R (remote) ......2 ST1214T (local), ST121EXT (repeater) and ST121R (remote) .
- Page 4 • Up to two VGA displays per receiver unit used • VGA Signal source Package Contents This package should contain: • 1 X VGA Extender unit (ST1214T: local), (ST121R: remote) or (ST121EXT: repeater) • 1 X 9V AC 500ma Adapter • 1 x Instruction Manual...
- Page 5 Using ST1214T, you can split the VGA signal from the source into 4 separate VGA signals, for reception at remote locations (up to 150m / 500’ away). 1. a) Situate ST1214T so that it is near your VGA video source as well as an available power source.
- Page 6 ST1214T is 150m (500’), using ST121EXT as a signal repeater adds 100m / 328’ to the total transmission distance, for a total extension of 250m/828’. 1. a) Situate ST1214T so that it is near your VGA video source as well as an available power source.
- Page 7 Instruction Manual The following diagram illustrates the connection between local (ST1214T) and remote (ST121R) units, with the addition of a repeater unit (ST121EXT). Please note that although only one repeater is used in this illustration, up to four can be used simultaneously.
- Page 8 Instruction Manual Operation ST1214T, ST121EXT and ST121R all provide LED indicators, allowing simple operating status monitoring. Once the power adapter has been connected, the Power LED will become illuminated; similarly, when the unit is in use (i.e. transmitting a signal), the Active LED will become illuminated.
- Page 9 Instruction Manual S S p p e e c c i i f f i i c c a a t t i i o o n n s s VGA CAT5 Extender ST1214T ST121R ST121EXT Maximum 70 - 100m...
- Page 10 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,...
- Page 11 Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT solution. Find out for yourself why our products lead the industry in performance, support, and value.
