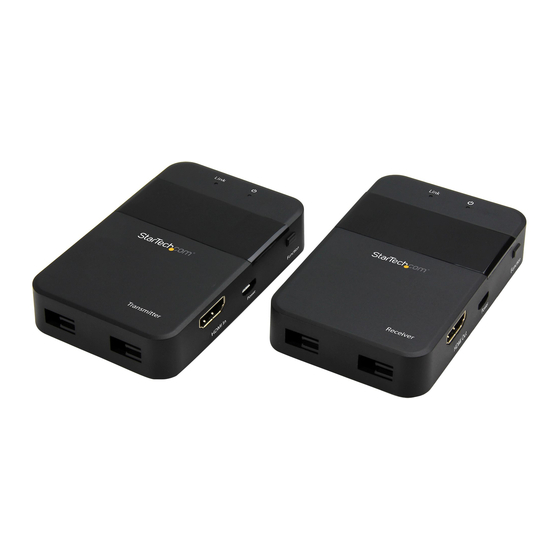

WHDI Wireless HD Extender - 1080p
Wireless High Definition
ST121WHD
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/16/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ST121WHD
Summary of Contents for StarTech.com ST121WHD
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/16/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Preparing Your Site ................2 Hardware Installation ................2 Additional Operation................4 IR Remote Control ............................. 4 LED Indicator Status Table ..............8 Specifications ..................8 Technical Support ..................9 Warranty Information ................9 Instruction Manual... -
Page 4: Introduction
HD display or projector up to 30m (100ft) away from the HD source wirelessly. The ST121WHD is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source to display connection. This wireless HD extender eliminates the need for expensive cable infrastructure, and provides a wireless solution where cabling is undesirable, i.e. -
Page 5: Preparing Your Site
Preparing Your Site 1. Determine where the local video source (i.e. computer, Blu-ray Player) will be located and set up the device. 2. Determine where the remote display will be located and place/ mount the display appropriately. Notes: This product includes optional bases allowing for horizontal or veridical positioning. - Page 6 (Optional) If using the ST121WHD to extend an infrared (IR) device signal. Connect the IR remote extension connector to the IR remote signal output port on the Transmitter Unit, and Position the extended IR sensor directly in front of the video source’s IR sensor. Check the manual of your video source device for the IR sensor location.
-
Page 7: Additional Operation
Add Additional Video Transmitter Sources (Must have multiple transmitting units) By default the ST121WHD’s transmitter and receiver units are paired together. If you have more than one transmitter, you can add additional transmitters to one receiver and switch between video sources. - Page 8 2. Please Activate Registration on Transmitter Unit will now appear on the display. Physically return to the transmitter unit hold down the reset button on the transmitter for 3 seconds to activate registration. 3. The additional transmitter is now registered. This action can be performed for up to 2 additional transmitters for a total of 3.
- Page 9 Trouble Shooting 1. Improve Signal Quality Environments with large amounts of 5GHz wireless traffic (such as an office), DFS1 (5150-5250 MHz -non DFS band) and DFS4 (5725-5850 MHz-non DFS band) should be disabled by setting to ON in the Advanced Settings to yield better performance. a.
- Page 10 2. Review Wireless Link Quality You can view the wireless link quality to determine if there may be interference preventing the signal from completing, or occasional signal loss. a. Using the IR remote control, press MENU-> Advanced Settings -> Status - > Link Quality b.
-
Page 11: Led Indicator Status Table
LED Indicator Status Table Indicator LED Activity Status The transmitter is connected successfully On (Green) Wireless in the wireless mode Connection Status The transmitter has failed to connect in Indicator the wireless mode (Transmitter Unit) Flash rapidly The Device is faulty The video source is connected On (Green) Video indicator... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
