Summary of Contents for StarTech.com ST122UTPA

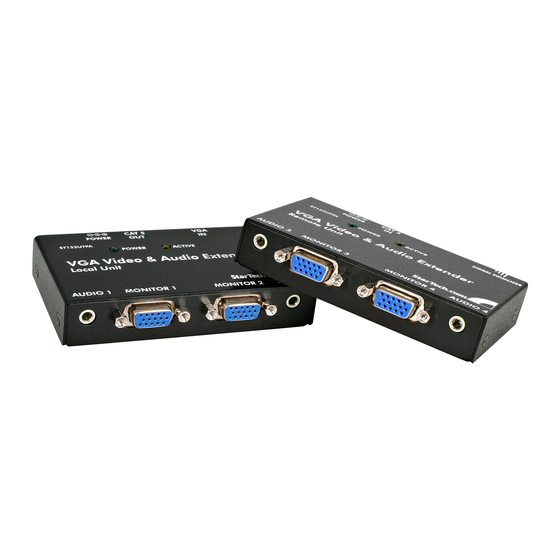

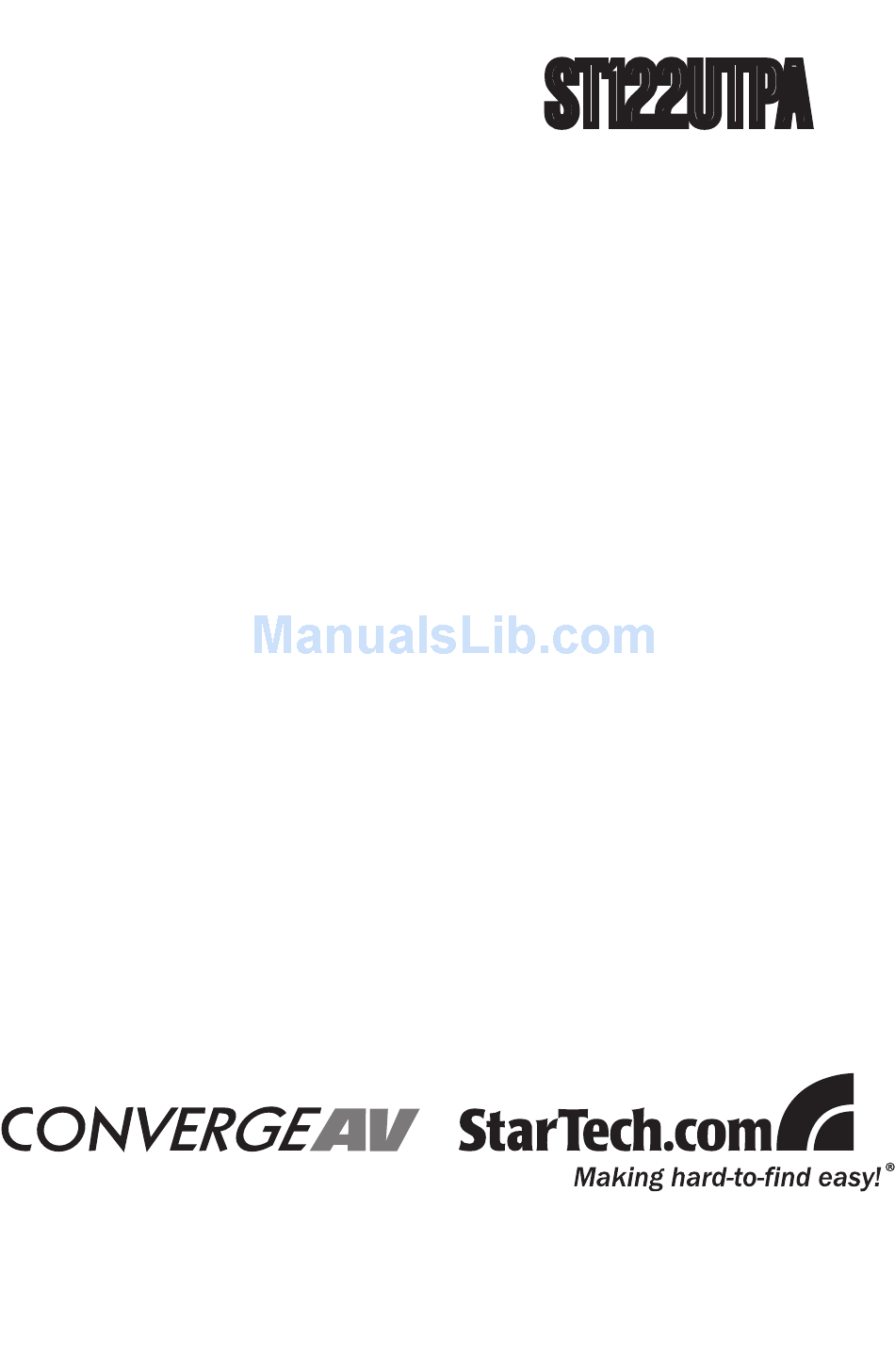

- Page 1 ST122UTPA Instruction Manual VGA Video Extender VGA Video Extender over Cat5 with Audio...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............1 Local Unit..................2 Remote Unit.................2 Troubleshooting .............. 5 Wiring Diagram ............... 6 Specifications ..............7 Technical Support ............8 Warranty Information ............8... -
Page 4: Introduction
Introduction Packaging Contents • 1 x ST122UTPA Local Unit • 1 x ST122UTPA Remote Unit • 1 x Mounting Bracket kit • 2 x Power Adapters • 1 x Instruction Manual System Requirements • VGA enabled video source and display device •... -
Page 5: Local Unit
Local Unit VGA input Power connector RJ45 (male) output Audio input (3.5mm) Audio output Audio output VGA output (3.5mm) (3.5mm) (female) Remote Unit Power RJ45 Signal Equalizer connector output switch Audio output Audio output VGA output (3.5mm) (3.5mm) (female) - Page 6 Preparing Your Site Determine where the local computer will be located and set up the computer. Determine where the remote display(s) will be located and place/ mount them appropriately. If you are using surface cabling, ensure you have enough Cat5 unshielded twisted pair (UTP) Ethernet cabling to connect the Local Unit to the Remote Unit’s location, and that each end is terminated with a RJ45 connector.
- Page 7 Connect a 3.5mm mini-jack cable (not included) from the audio output on the source device to the “Audio IN” port on the Local Unit. Connect the Cat5 cable connection to the “CAT5 OUT” on the Local Unit. Connect the Power Adapter (provided) into an appropriate power source and plug the opposite end into the power connector on the Local Unit.
-
Page 8: Troubleshooting
If you continue to have difficulties after attempting the solutions in this section, please contact StarTech.com technical support. Symptom: The remote displays are black or display a “no signal”... -
Page 9: Wiring Diagram
Remedy: Adjust the local computer to a lower resolution and refresh rate until the remote display shows an image. Gradually increase the resolution and refresh rate on the local computer until the remote displays ceases to display an image. Return the resolution and refresh rate on the local computer to the highest resolution and refresh rate setting that displayed an image on the remote display. -
Page 10: Specifications
Specifications 1 x DE-15 VGA male 1 x DE-15 VGA female Connectors (Local) 2 x 3.5mm stereo mini-jack 1 x RJ45 1 x Power Connector 2 x DE-15 VGA female 2 x 3.5mm stereo mini-jack Connectors (Remote) 1 x RJ45 1 x Power Connector LEDs 1 x Power, 1 x Activity... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 12 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
