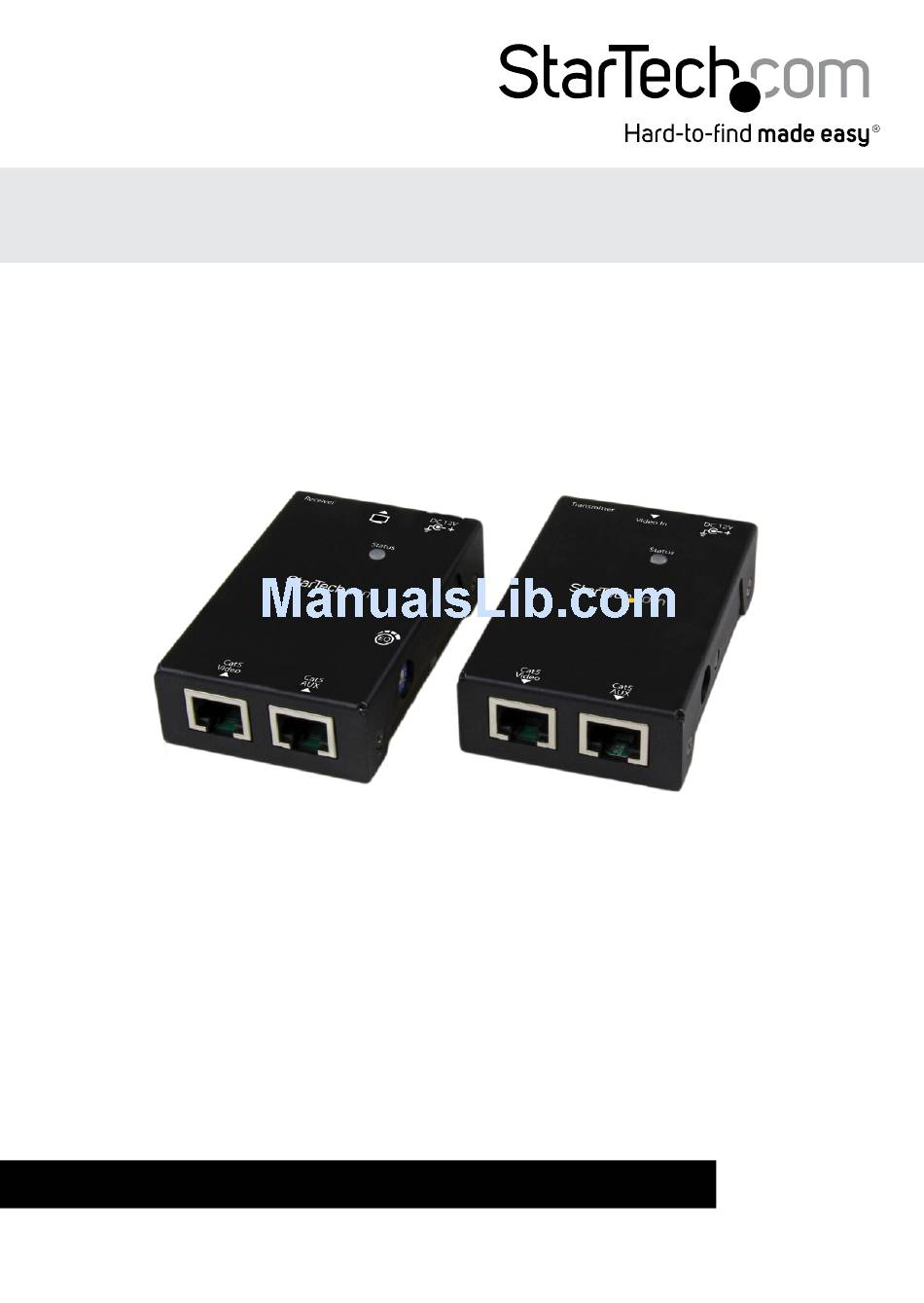

User Manual
HDMI® over Cat 5e/6 Extender - 50m
ST121SHD50
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/31/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com ST121SHD50
Summary of Contents for StarTech.com ST121SHD50
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/31/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Top View ............................... 1 Rear View ..............................1 Front View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 LED Indicator .............................. 3 Installation ....................4 Preparing Your Site ........................... 4 Hardware Installation ..........................4 Operation ....................5 Video Adjustment (Receiver Unit Only) .................... -
Page 4: Product Diagram

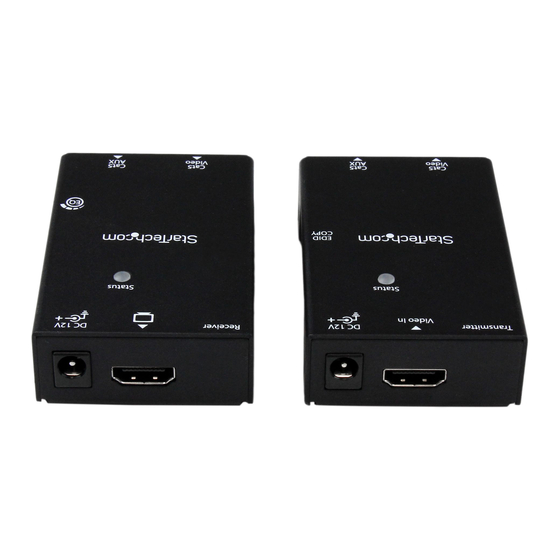

Product Diagram Top View 1. LED Indicator 1. LED Indicator 2. EDID Copy Button 2. EQ Selector Rear View 1. Power Jack 1. Power Jack 2. HDMI In 2. HDMI Out Front View 1. LINK OUT A (RJ-45 Connector) 1. LINK IN A (RJ-45 Connector) 2. -
Page 5: Introduction
Introduction The ST121SHD50 HDMI® over CAT5e/6 Video Extender kit lets you extend HDMI® video and audio up to 165 feet (50 Meters)(1080i) over 2 CAT5e Ethernet cables, or up to 130 Feet (40 Meters)(1080p) over 2 CAT6 Ethernet cables. For added versatility both the Transmitter and Receiver can be powered by the same single power source using Power Over Cable (POC). -
Page 6: Led Indicator
LED Indicator Status Transmitter DVI EDID content configured *Emit blue with green flashing twice HDMI EDID content configured *Emit blue with green flashing three times HDCP syncing **Purple Status Receiver Video Linking ***Steady Blue Video unlinking Steady Red *It is suggested replacing cables with better quality ones if the LED emits blue without video displaying. -
Page 7: Installation
Installation Preparing Your Site 1. Determine where the local video source (i.e. computer, Blu-ray Player) will be located and set up the device. 2. Determine where the remote display will be located and place/ mount the display appropriately. NOTE: This HDMI® extender kit features Power over cable, allowing both the Transmitter and Receiver to be powered from a single power source that can be connected at either end of the connection. -
Page 8: Operation
c) Connect the other end of the Cat5e/6 cable (from LINK OUT A) to the LINK IN A (RJ-45 connector) on the Receiver Unit. d) Connect the other end of the Cat5e/6 cable (from LINK OUT B) to the LINK IN B (RJ-45 connector) on the Receiver Unit. -
Page 9: Edid Configuration
The following is the test result while using different types of CATx cables Cable Type Resolution Cable Length (max.) 1080i CAT6 1080p 1080i CAT5 (solid) 1080p 1080i CAT5 (stranded) 1080p EDID Configuration In some cases display problems may occur due to incorrect EDID communication between the display monitor and the unit or inappropriate EDID data programmed by display manufactures. - Page 10 EDID Factory Default Setting To avoid confusion in which EDID information has been copied or for more purposes, this function enables to reset the state to factory default. Step 1. Use CATx cable for connection between Tx & Rx on Aux RJ-45 Jack. Apply power to Receiver Unit.
-
Page 11: Specifications
Specifications AV Input HDMI® AV Output HDMI® Cabling Cat 5e/6 UTP Audio 1x HDMI® (19 pin) Female Local Unit Connectors 2x RJ-45 Female 1x HDMI® (19 pin) Female Remote Unit Connectors 2x RJ-45 Female Maximum Data Transfer Rate HDMI® - 1.656Gbps Max Distance 50 m / 165 ft(1080i) Maximum Digital Resolutions... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
