Operator's Manual
Operator's Manual
Manual de
instrucciones
Manuel de
l'utilisateur
U.S. Patent No. 6,105,192; No. 6,493,896; No. 6,557,207; and Patents Pending
READ THIS BOOK
CAUTION: Read the Operator's Manual before using the appliance.
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your Clarke machine
could result in injury to you or to other personnel; damage to the machine or to other property could occur
as well. You must have training in the operation of this machine before using it. If operator(s) cannot
read this manual, have it explained fully before attempting to operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente antes
de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books write to: Clarke, 2100 Highway 265, Springdale, Arkansas 72764.
Form No. 70879A
12/04
®
Clarke
Rider

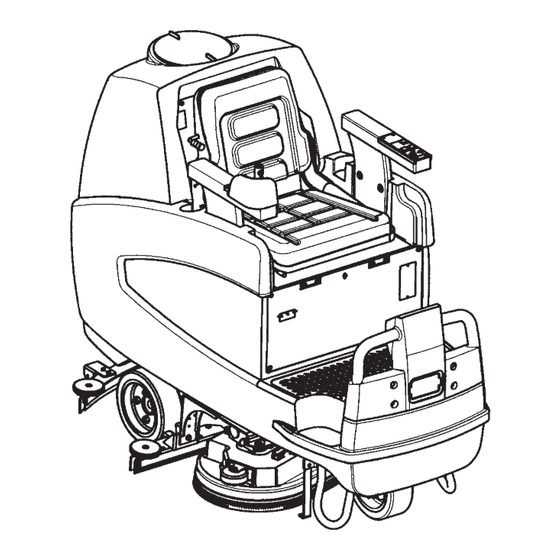

Scrubber
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Clarke Focus
Summary of Contents for Clarke Focus
- Page 1 This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.
- Page 2 Este manual contiene información importante para el uso y la seguridad de la máquina. Si no lee el manual antes de utilizar su máquina Clarke o de intentar realizar los procedimientos de reparación o mantenimiento de la misma, usted o el resto del personal podrían sufrir lesiones; asimismo, podrían producirse daños a la máquina o a otras propiedades.
-
Page 3: Table Of Contents
Table of Contents Operator Safety Instructions ..........................6 Introduction & Machine Specifications ......................12 Symbols Used on Focus ..........................14 Display Screens for Focus ..........................17 Machine Control Panel ............................. 20 Joystick Controls .............................. 22 Machine Controls and Features ........................22 How to Prepare the Machine for Operation ...................... - Page 4 Índice Instrucciones de seguridad para el operador ....................6 Introducción y especificaciones de la máquina ....................12 Símbolos utilizados en el modelo Focus ......................15 Pantalla del modelo Focus ..........................18 Panel de control de la máquina ........................21 Controles de palanca ............................23 Controles y funciones de la máquina ......................
- Page 5 Plan de montage du bras articulé gauche et nomenclature des pièces ............85 Montage du moteur d’aspiration ........................87 Schéma de connexion électrique ........................88 Schéma du circuit électrique ..........................92 Clarke ® Operator's Manual - Focus Rider Scrubber Page -5-...
-
Page 6: Operator Safety Instructions
La non-lecture et le non-respect des MISES EN GARDE risquent d’endommager la machine ou de provoquer d’autres dégâts matériels. Lisez et respectez toutes les MISES EN GARDE se trouvant dans le Manuel de l’utilisateur et sur la machine. ® Clarke Page Operator's Manual -Focus Rider Scrubber... - Page 7 Failure to read the Operator’s Manual prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it.
- Page 8 ADVERTENCIA:No mueva la máquina con un elevador de horquilla. Se podría dañar la máquina. AVERTISSEMENT :Ne pas déplacer la machine à l’aide d’un chariot élévateur à fourche. Vous risqueriez d’endommager la machine. ® Clarke Page Operator's Manual -Focus Rider Scrubber...
- Page 9 No las cubra por ningún motivo. Si se pierden o dañan etiquetas o calcomanías, obtenga las de reemplazo de inmediato a través de su distribuidor de Clarke. AVERTISSEMENT :L’utilisation d’une machine sans respecter les autocollants de sécurité et les instructions risque de provoquer un accident ou des dégâts matériels.
- Page 10 Your machine warranty will be voided if anything other than genuine Clarke parts are used on your machine. Always use Clarke parts for replacement. PRECAUCIÓN: Si no utiliza los repuestos originales de Clarke la garantía de la máquina se anulará. Utilice siempre repuestos de Clarke.
- Page 11 • Ne lavez pas la machine directement avec un jet d’eau, avec un nettoyeur haute pression ou avec des produits corrosifs. • La machine doit être révisée par un technicien agréé toutes les 200 heures d’utilisation. Clarke ® Operator's Manual - Focus Rider Scrubber Page -11-...
-
Page 12: Introduction & Machine Specifications
36 volt (6-6V batteries) 250AH 36 volt (6-6V batteries) 250AH Machine Weight w/Batteries *** 1425 lbs. (532 kg) 1445 lbs. (540 kg) **** 330, 370 Available Shipping Weight w/Batteries 1590 lbs. (594 kg) 1610 lbs. (600 kg) ® Clarke Page -12- Operator's Manual -Focus Rider Scrubber... - Page 13 36 volts (6 batteries de 6V) 250 Ah 36 volts (6 batteries de 6V) 250 Ah **** 330, 370 Poids de la machine avec batteries *** 532 kg 540 kg également Poids d’expédition avec batteries *** 594 kg 600 kg disponibles Clarke ® Operator's Manual - Focus Rider Scrubber Page -13-...
-
Page 14: Symbols Used On Focus
Symbols Used On FOCUS 28 & 34 Horn Button One Touch Brush Up/Down Traverse Speed On/Off Switch Squeegee Up/Down i-Drive Directional Guide Solution Flow Switch Recovery / Solution LED Battery Meter Warning Label LCD Display Button ® Clarke Page -14-... - Page 15 Símbolos usados en el modelo FOCUS 28 & 34 Botón de la bocina Pulsación única Cepillo Arriba/ Abajo Velocidad de desplazamiento Interruptor On/Off (encendido/ Escobilla de goma apagado) Arriba/ Abajo i-Drive Guía Direccional Interruptor del flujo de solución DEL de Recuperación /...
-
Page 16: Zoom Sur Les Symboles Utilisés
Marche/Arrêt Relèvement de la raclette Commandes directionnelles i-Guide Commutateur d’écoulement de la solution Voyant DEL Récupération / Solution Indicateur du niveau de charge des batteries Autocollant Bouton de sécurité Afficheur LCD ® Clarke Page -16- Operator's Manual -Focus Rider Scrubber... -
Page 17: Display Screens For Focus
Display Screens For FOCUS 28 & 34 Traverse speed indicator Position arrow indicating current position 1 = low 0-2 mph of squeegee (up or down) 2 = med 0-3 mph 3 = high 0-4 mph Indicators are on all the time showing current settings. - Page 18 Pantallas de visualización para FOCUS 28 & 34 Indicador de la velocidad de Flecha de posición que indica la posición desplazamiento actual de la escobilla de goma (arriba o 1 = baja 0-2 mph abajo) 2 = media 0-3 mph...
-
Page 19: Zoom Sur Les Écrans D'affichage
ECRAN 2 Exemple ECRAN 3 (Diagnostic) Destiné au diagnostic uniquement. Reste éteint tant que la machine ne présente pas de panne. Lorsque l’erreur se produit, l’icône et le code d’erreur s’affichent. Clarke ® Operator's Manual - Focus Rider Scrubber Page -19-... -
Page 20: Machine Control Panel
The circuit breaker reset buttons are located on the back side of the front cover below front display. The breakers are as follows: Item A - Main (5 amp) Item B - Key Switch (5 amp) ® Clarke Page -20- Operator's Manual -Focus Rider Scrubber... -
Page 21: Panneau De Commande De La Machine
à l’arrière du capot avant situé sous l’afficheur avant. Les coupe-circuits sont les suivants : Elemento B – Interruptor de llave (5 amperes) Disjoncteur A - Secteur (5 A) Disjoncteur B - commutateur à clé (5 A) Clarke ® Operator's Manual - Focus Rider Scrubber Page -21-... -
Page 22: Joystick Controls
Machine Controls and Features Recovery Tank Float The FOCUS Rider Scrubber is equipped with a float that shuts the vacuum off when the recovery tank is full. The squeegee will no longer pick up water. If this should happen, raise the squeegee and empty the recovery tank. -
Page 23: Fonctions Du Levier De Commandes
Flotador del depósito de recuperación L’autolaveuse auto-portée FOCUS est équipée d’un flotteur qui La fregadora FOCUS de conductor a bordo está equipada coupe le système d’aspiration lorsque le réservoir de con un flotador que cierra el vacío cuando el depósito de récupération est plein. -
Page 24: How To Prepare The Machine For Operation
250 Ah, 6 Volts (Batterie n°881317 à liquide) Lower the base support of the seat. (Batterie n°881318 sèche) NOTE: Charge the batteries before using. Trois (3) entretoises 70222A Figure 4 ® Clarke Page -24- Operator's Manual -Focus Rider Scrubber... -
Page 25: Préparation De La Machine Avant Son Utilisation
Baje el apoyo de la base del asiento. Abaissez le support du siège. NOTA: Cargue las baterías antes del uso. REMARQUE : charger les batteries avant utilisation. ® Clarke Operator's Manual - Focus Rider Scrubber Page -25-... -
Page 26: Battery Maintenance
To clean the terminals and connectors, use a terminal and connector cleaning tool. Do not allow ammonia or bicarbonate of soda to get into the batteries. Keep the batteries charged. ® Clarke Page -26- Operator's Manual -Focus Rider Scrubber... -
Page 27: Entretien Des Batteries
Ne laissez pas l’ammoniaque ou le bicarbonate de soude pénétrer dans les batteries. Mantenga las baterías cargadas. Veillez à ce que les batteries soient chargées. Clarke ® Operator's Manual - Focus Rider Scrubber Page -27-... -
Page 28: How To Charge The Batteries
(see figure 6, A - Red, B - Yellow, C - Green ). For color indications see figure Recharging the Batteries The Focus Rider Scrubber comes with an on board charger. Plug into any wall socket and charging is automatic. -
Page 29: Chargement Des Batteries
6A. d’indications sur les couleurs, voir la figure 6A. Recarga de las baterías Rechargement des batteries La fregadora Focus de conductor a bordo viene provista L’autolaveuse autoportée Focus est livrée avec un con un cargador incorporado. chargeur intégré. -
Page 30: How To Install The Squeegee
NOTE: As the rear squeegee blade wears, it can be rotated and/or flipped to obtain four good edges before having to change blades. ® Clarke Page -30- Operator's Manual -Focus Rider Scrubber... -
Page 31: Installation De La Raclette
NOTA: A medida que se gasta la hoja de la escobilla de goma trasera, se la puede girar y/ o dar vuelta para obtener cuatro bordes buenos antes de tener que cambiar las hojas. Clarke ® Operator's Manual - Focus Rider Scrubber Page -31-... -
Page 32: How To Operate The Machine
One Touch Operation Figure 11 One touch cleaning is a feature on the new Focus Rider Scrubber. The factory defaults for this setting are two bars of brush pressure and four bars for solution flow and squeegee in the down position. -
Page 33: Fonctionnement De La Machine
La limpieza de pulsación única es una función de la nueva fregadora l’autolaveuse autoportée Focus. Les réglages d’usine par défaut Focus de conductor a bordo. El valor por omisión de fábrica para esta sont : 2 barres pour la pression des brosses, 4 barres pour le débit configuración es de 2 barras de presión de cepillo y cuatro barras... -
Page 34: How To Return One Touch To Factory Default Settings
Directional Control (see figure 12, A and B) The Focus Rider Scrubber is equipped with a joystick for controlling speed and direction of the machine. Simply point the joystick in the direction you want the machine to go (figure 12, A). -
Page 35: Restauration Des Paramètres Par Défaut D'un Bouton One Touch
Control direccional (consulte la figura 12, A y B) L’autolaveuse autoportée Focus est équipée d’un La fregadora FOCUS de conductor a bordo está equipada joystick permettant de contrôler la vitesse et la direction con una palanca de control para controlar la velocidad y de la machine. -
Page 36: Seat Adjustment
The bottom position is for heavy weight operators. See figure 15, B. NOTE: The lever must be pressed firmly to change positions. Figure 14 Figure 15 ® Clarke Page -36- Operator's Manual -Focus Rider Scrubber... -
Page 37: Réglage Du Siège
15, B.REMARQUE : Appuyez fermement sur la Consulte la figura 15, B. NOTA: Para cambiar las manette pour la changer de position. posiciones se debe oprimir la palanca con firmeza. ® Clarke Operator's Manual - Focus Rider Scrubber Page -37-... -
Page 38: How To Read The Battery Meter
The vacuum motors will shut down a few moments later. NOTE: Recovery times will vary depending on solution Figure 18 flow setting and floor type. ® Clarke Page -38- Operator's Manual -Focus Rider Scrubber... -
Page 39: Lecture De L'indicateur Du Niveau De Charge Des Batteries
REMARQUE : Les intervalles entre les vidanges solución y según el tipo de piso. dépendent du réglage de l’écoulement de la solution et du type de sol. Clarke ® Operator's Manual - Focus Rider Scrubber Page -39-... -
Page 40: How To Operate The Squeegee And The Vacuum Motor
1. Press the “ - “ side of the switch (figure 22). Figure 22 2. Press and hold the “ - “ side of the switch to achieve the desired level of pressure. ® Clarke Page -40- Operator's Manual -Focus Rider Scrubber... -
Page 41: Utilisation De La Raclette Et Du Moteur D'aspiration
Oprima el lado “ - ” del interruptor y manténgalo así para alcanzar el nivel deseado de presión. Maintenez le côté « - » du commutateur enfoncé jusqu’à atteindre la pression d’applique désirée. ® Clarke Operator's Manual - Focus Rider Scrubber Page -41-... -
Page 42: How To Fill The Solution Tank
2. Stop the machine safely. 3. Turn the machine both left and right and return to a straight direction. 4. Turn a 180 turn where one rear wheel just pivots. ® Clarke Page -42- Operator's Manual -Focus Rider Scrubber... -
Page 43: Remplissage Du Réservoir De Solution
Dar un giro de 180 grados de manera que sólo use como eje de rotación una rueda trasera. Faire un virage à 180° sur place (une roue arrière doit rester sur place). Clarke ® Operator's Manual - Focus Rider Scrubber Page -43-... -
Page 44: Do These Procedures When You Begin Your Work Period
7. Make sure that the brushes/pads are in position and installed correctly. 8. Make sure the brush housings are in position on the brush head. 9. Check the installation of the squeegee and squeegee hose. ® Clarke Page -44- Operator's Manual -Focus Rider Scrubber... -
Page 45: Procédures À Appliquer Au Début De La Session De Travail
Vérifiez l’installation de la raclette et de son flexible. Verifique la instalación de la escobilla de goma y de la manguera de la misma. Clarke ® Operator's Manual - Focus Rider Scrubber Page -45-... -
Page 46: How To Clean A Floor
2 inches (5 cm) of the area already cleaned by the brush. NOTE: During most cleaning procedures, apply and remove the solution in one operation. ® Clarke Page -46- Operator's Manual -Focus Rider Scrubber... -
Page 47: Nettoyage D'un Sol
NOTA: Durante la mayoría de los procedimientos de limpieza aplique REMARQUE : Lors de la plupart des opérations de nettoyage, y saque la solución en una operación. vous appliquerez et retirerez la solution en une seule et même opération. ® Clarke Operator's Manual - Focus Rider Scrubber Page -47-... -
Page 48: How To Clean A Very Dirty Floor
10. Empty the recovery tank. NOTE: When hose is lowered below water level, water will flow. WARNING: Use gloves to protect your hands from contact with dangerous solutions when preforming the steps listed above. ® Clarke Page -48- Operator's Manual -Focus Rider Scrubber... -
Page 49: Nettoyage D'un Sol Très Sale
AVERTISSEMENT : Utilisez des gants pour protéger manos del contacto con vos mains de tout contact avec soluciones peligrosas cuando des solutions dangereuses siga los pasos enumerados lorsque vous effectuez les anteriormente. opérations suivantes. ® Clarke Operator's Manual - Focus Rider Scrubber Page -49-... - Page 50 NO SMOKING. Always wear eye protection and protection clothing when working near batteries. 18. Charge the batteries. See the instructions in the section of this book called “How to Charge the Batteries”. ® Clarke Page -50- Operator's Manual -Focus Rider Scrubber...
- Page 51 18. Chargez les batteries. Consutez les instructions incluidas en la sección de este manual llamada données dans la section de ce Manuel intitulée “Carga de las baterías”. « Rechargement de la batterie ». Clarke ® Operator's Manual - Focus Rider Scrubber Page -51-...
-
Page 52: Maintenance
(see figure 30). NOTE: Make sure that the tank is empty first. 4. Rinse the tank and clean the drain plug. ® Clarke Page -52- Operator's Manual -Focus Rider Scrubber... -
Page 53: Tâches De Maintenance À Effectuer Quotidiennement
(voir figure 30). REMARQUE : avant toute chose, assurez-vous que le réservoir est vide. Enjuague el depósito y limpie el tapón de drenaje. Rincez le réservoir et nettoyez le bouchon de vidange. Clarke ® Operator's Manual - Focus Rider Scrubber Page -53-... -
Page 54: Cleaning The Solution Tank And Filter
To replace the front squeegee blade, follow this procedure: 1. Remove the squeegee assembly from the machine. 2. Remove clamp and front squeegee blade. 3. Install new front squeegee blade and reinstall clamp. 4. Replace squeegee on machine. ® Clarke Page -54- Operator's Manual -Focus Rider Scrubber... -
Page 55: Nettoyage Du Réservoir De Solution Et Du Filtre
Installez un nouveau balai de raclette avant et Vuelva a colocar la escobilla de goma en la remettez la fixation en place. máquina. Remontez la raclette sur la machine. Clarke ® Operator's Manual - Focus Rider Scrubber Page -55-... -
Page 56: Rear Squeegee Blade Replacement
1. Remove 4 screws holding foot plate to solution tank (see figure 35). 2. Locate two black wires tied together and marked “reset sw” (see figure 36). Figure 36 ® Clarke Page -56- Operator's Manual -Focus Rider Scrubber... -
Page 57: Remplacement De La Lame De La Raclette Arrière
2. Localisez les deux câbles noirs attachés en- semble et portant l’indication « reset sw » (voir Coloque los dos cables negros unidos juntos y figure 36). marcados “reajuste sw” (consulte la figura 36). Clarke ® Operator's Manual - Focus Rider Scrubber Page -57-... - Page 58 6. Key machine on. If machine drives straight, then proceed to step 7. If not, then repeat steps 2-5. 7. Replace foot plate and screws. 8. Key machine on. Figure 38 Figure 39 ® Clarke Page -58- Operator's Manual -Focus Rider Scrubber...
- Page 59 7. Vuelva a colocar la placa del pedal y los tornil- 7. Replacez la plaque de plancher ainsi que les vis. los. 8. Allumez la machine à l’aide de la clé. 8. Conecte la máquina. Clarke ® Operator's Manual - Focus Rider Scrubber Page -59-...
-
Page 60: How To Correct Problems In The Machine
Poor electrical connection at the brush head Connect the electrical connection at the brush unit. head unit. ® Clarke Page -60- Operator's Manual -Focus Rider Scrubber... -
Page 61: Corrección De Problemas De La Máquina
La conexión eléctrica en la unidad del Realice la conexión eléctrica en la unidad del cabezal del cepillo no es buena. cabezal del cepillo. Clarke ® Operator's Manual - Focus Rider Scrubber Page -61-... -
Page 62: Résoudre Les Problèmes Rencontrés Avec La Machine
Les batteries ne sont pas rechargées ou ne sont pas correctement connectées et rechargez-les si que lorsque la machine com- connectées correctement. nécessaire. mence à avancer. Branchez la connexion électrique des Mauvaise connexion électrique des brosses. brosses. ® Clarke Page -62- Operator's Manual -Focus Rider Scrubber... - Page 63 9000 Brushes not fitted. Brushes 2F01 Release traverse switch and reactivate. Drive system activated prior to turning key switch "ON". Clarke ® Operator's Manual - Focus Rider Scrubber Page -63-...
-
Page 64: Accesories And Options
Off Aisle Spray Tool and Vac Wand (includes pump) 10876A Solution and Recovery Tank Level Indicator Lights 10877A Caution Strobe Light (Amber) 10878A Deluxe Seat 10879A Head Light 53390A CBMS - Clarke Battery Maintenance System ® Clarke Page -64- Operator's Manual -Focus Rider Scrubber... -
Page 65: Section Ii Parts And Service Manual
Rider Scrubber Section II Parts and Service Manual (70879A) U.S. Patent No. 6,105,192; No. 6,493,896; No. 6,557,207; and Patents Pending Clarke ® Operator's Manual - Focus Rider Scrubber Page -65-... -
Page 66: Final Assembly Drawing 12/04
Clarke ® FOCUS Rider Scrubber Final Assembly Drawing 12/04 12 13 ® Clarke Page -66- Operator's Manual -Focus Rider Scrubber... -
Page 67: Parts List
Pack, Battery 370 AH 60256A Bracket, Pivot 53491A Pin, Quick Release 40895A Positive Cable 40896A Negative Cable 40882A Cable Fuse 40726A Fuse, 200 Amp 41217A Cable, Series NI= Not illustrated Clarke ® Operator's Manual - Focus Rider Scrubber Page -67-... -
Page 68: Main Frame Assembly Drawing 6/04
® Clarke FOCUS Rider Scrubber Main Frame Assembly Drawing 6/04 Drawing #10778A ® Clarke Page -68- Operator's Manual -Focus Rider Scrubber... -
Page 69: Parts List
Screw, 1/4 - 20 x 3/4 Hex Head 50248A Hose Clamp 962430 Screw, 1/4 - 20 x 1/2 HHCS 87026A Washer, 1/4 Flat SS 30558A Pad, Brush Carriage Stop 30453A Hose, Clear Vinyl 59614A Valve, Battery Drain Clarke ® Operator's Manual - Focus Rider Scrubber Page -69-... -
Page 70: Front Wheel Assembly Drawing And Parts List 6/04
Screw, 3/8 -16 x 7/8 Hex Hd. 80268A Nut, .750 ESNA 61483A Spacer, Center 81221A Nut, 1/2 -20 Lug 61382A Wheel, Anti-Skid 61474A Hub, Front Wheel 53437A Bearing 61484A Spacer, Outside 85838A Bolt, 1/2 -20 Hex ® Clarke Page -70- Operator's Manual -Focus Rider Scrubber... -
Page 71: Squeegee Lift Assembly Drawing And Parts List 6/04
Bracket, Squeegee Mount 170915 Screw, 1/4 - 20 x 3/4 Hex HD 85813A Screw, 5/16 - 18 x 1 Hex HD 962620 Screw, 5/16 - 24 x 3/4 Hex HD Clarke ® Operator's Manual - Focus Rider Scrubber Page -71-... -
Page 72: Recovery Tank Assembly Drawing 6/04
® Clarke FOCUS Rider Scrubber Recovery Tank Assembly Drawing 6/04 Drawing #10783A ® Clarke Page -72- Operator's Manual -Focus Rider Scrubber... -
Page 73: Parts List
40876A Sensor, Water Level 52560A O-Ring, .103 x 7.99 ID 30227A Housing, Drain 30568A Hose, Squeegee 30567A Hose, Vac 30448A Hose, Exhaust NOTE: * Optional accessories NI = Not illustrated Clarke ® Operator's Manual - Focus Rider Scrubber Page -73-... -
Page 74: Solution Tank Assembly Drawing 6/04
Clarke ® FOCUS Rider Scrubber Solution Tank Assembly Drawing 6/04 Drawing # 10784A See Detail A ® Clarke Page -74- Operator's Manual -Focus Rider Scrubber... -
Page 75: Parts List
Stop, Seat 81112A Nut, 5/16 - 18 Thin ESNA 30534A Chair, Asm. 962086 Screw, 1/4 - 20 x 3/4 Hex Head 87026A Washer, 1/4 Flat SS 980657 Washer, Lock 1/4 Clarke ® Operator's Manual - Focus Rider Scrubber Page -75-... -
Page 76: 28" Rotary Brush Head Assembly Drawing And Parts List 6/04
Housing, 28” Brush Right Main 81104A Nut, 1/4 Nylock 84200A Screw, 8 - 32 FHCS 30536A Housing, 28” Left Brush 920148 Nut, 3/8 - 16 Hex Jam 30535A Housing, 28” Right Brush ® Clarke Page -76- Operator's Manual -Focus Rider Scrubber... -
Page 77: 34" Rotary Brush Head Assembly Drawing And Parts List
Housing, 34” Brush Right Main 81104A Nut, 1/4 Nylock 84200A Screw, 8 - 32 FHCS 30538A Housing, 34” Left Brush 920148 Nut, 3/8 - 16 Hex Jam 30537A Housing, 34” Right Brush Clarke ® Operator's Manual - Focus Rider Scrubber Page -77-... - Page 78 Clarke ® FOCUS Rider Scrubber ® Clarke Page -78- Operator's Manual -Focus Rider Scrubber...
-
Page 79: Plan De Montage De La Raclette
® Clarke FOCUS Rider Scrubber Ref Part No. Description Clarke ® Operator's Manual - Focus Rider Scrubber Page -79-... -
Page 80: Squeegee Assembly Drawing 9/04
® Clarke FOCUS Rider Scrubber Squeegee Assembly Drawing 9/04 Drawing # 10802A ® Clarke Page -80- Operator's Manual -Focus Rider Scrubber... - Page 81 Blade, Front Ribbed 39” 30066A Blade, Front Ribbed 32” 80011A Screw, -16 x 3 81301A Nut, -16 Jam SS 34260B Gasket 25201A Knob 60358A Shim, Squeegee Wheel 61370A Weight 80280A Nut, Squeegee Backup Clarke ® Operator's Manual - Focus Rider Scrubber Page -81-...
-
Page 82: Front Squeegee Assembly Drawing And Parts List 6/04
Rivet, 3/16 x .450 Pan HD 61495A Strap, Squeegee Weldment 53444A Wedge, Secondary Squeegee 53443A Spacer, Secondary Squeegee 30541A Blade, Squeegee 80270A Screw, 1/4 - 20 Shoulder 30569A Hose, Sec. Squeegee ® Clarke Page -82- Operator's Manual -Focus Rider Scrubber... -
Page 83: Electrical Panel Assembly Drawing And Parts List 6/04
Cable, 32” Neg. Battery 41802A Contactor, Main 40595A Cable, 24” Pos. Battery 962430 Screw. 1/4 - -20 x 1/2 HHCS 40872A Harness, Main Power 40878A TRIO 150 NI = Not illustrated Clarke ® Operator's Manual - Focus Rider Scrubber Page -83-... -
Page 84: Right Arm Control Assembly Drawing And Parts List 6/04
Screw, 10 - 32 x .50 PH 962738 Screw, 6 - 32 x 5/8 PH 61555A Panel, Arm Rest Right Control 30532A Arm, Control Right 70807A Label, i-Drive NI = Not illustrated ® Clarke Page -84- Operator's Manual -Focus Rider Scrubber... -
Page 85: Left Arm Control Assembly Drawing And Parts List 6/04
Switch, Momentary Push 40890A Switch, Maintained Rocker 84237A Screw, 10 - 32 x .50 PH 61554A Panel, Arm Rest 30533A Arm, Control Left 70806A Label, Control Panel NI = Not illustrated Clarke ® Operator's Manual - Focus Rider Scrubber Page -85-... - Page 86 Clarke ® FOCUS Rider Scrubber ® Clarke Page -86- Operator's Manual -Focus Rider Scrubber...
-
Page 87: Vac Motor Assembly
658201 Spacer 51914A Clamp 53908A Fan - Stationary 50618A Bracket 658506 Shell 53100A Disc 53995A Fan, Air Seal 902679 Bearing - Ball 53996A Fan, Stationary 902648 Bearing - ball, radial Clarke ® Operator's Manual - Focus Rider Scrubber Page -87-... -
Page 88: Electrical Connection Diagram 9/04
® Clarke FOCUS Rider Scrubber Electrical Connection Diagram 9/04 Drawing # 70794A (pages 52-55) ® Clarke Page -88- Operator's Manual -Focus Rider Scrubber... - Page 89 ® Clarke FOCUS Rider Scrubber Electrical Connection Diagram 9/04 Drawing # 70794A (pages 52-55) Clarke ® Operator's Manual - Focus Rider Scrubber Page -89-...
- Page 90 Clarke ® FOCUS Rider Scrubber Electrical Connection Diagram 9/04 Drawing # 70794A (pages 52-55) ® Clarke Page -90- Operator's Manual -Focus Rider Scrubber...
- Page 91 ® Clarke FOCUS Rider Scrubber Electrical Connection Diagram 9/04 Drawing # 70794A (pages 52-55) ® Clarke Operator's Manual - Focus Rider Scrubber Page -91-...
-
Page 92: Electrical Schematic
Clarke ® FOCUS Rider Scrubber Electrical Schematic (pages 56-57) 9/04 Rider Electrical Options ® Clarke Page -92- Operator's Manual -Focus Rider Scrubber... - Page 93 Clarke ® FOCUS Rider Scrubber Electrical Schematic (pages 56-57) 9/04 Rider Electrical Options ® Clarke Operator's Manual - Focus Rider Scrubber Page -93-...
- Page 94 NOTES ® Clarke Page -94- Operator's Manual -Focus Rider Scrubber...
- Page 95 S-431 04 Molndal 2100 Highway 265 +46 31 706 73 00 Springdale, Arkansas 72764 (479) 750-1000 ALTO Norge A/S, Oslo (Norway) Bjornerudveien 24 Technical Service N-1266 1-800-356-7274 +47 2275 1770 ® Clarke Operator's Manual - Focus Rider Scrubber Page -95-...
- Page 96 STATED WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED Clarke's liability under this warranty is limited to repair of the product and/or replacement of parts and is given to purchaser in lieu of all other remedies, including INCIDENTAL AND CONSEQUENTIAL DAMAGES.
