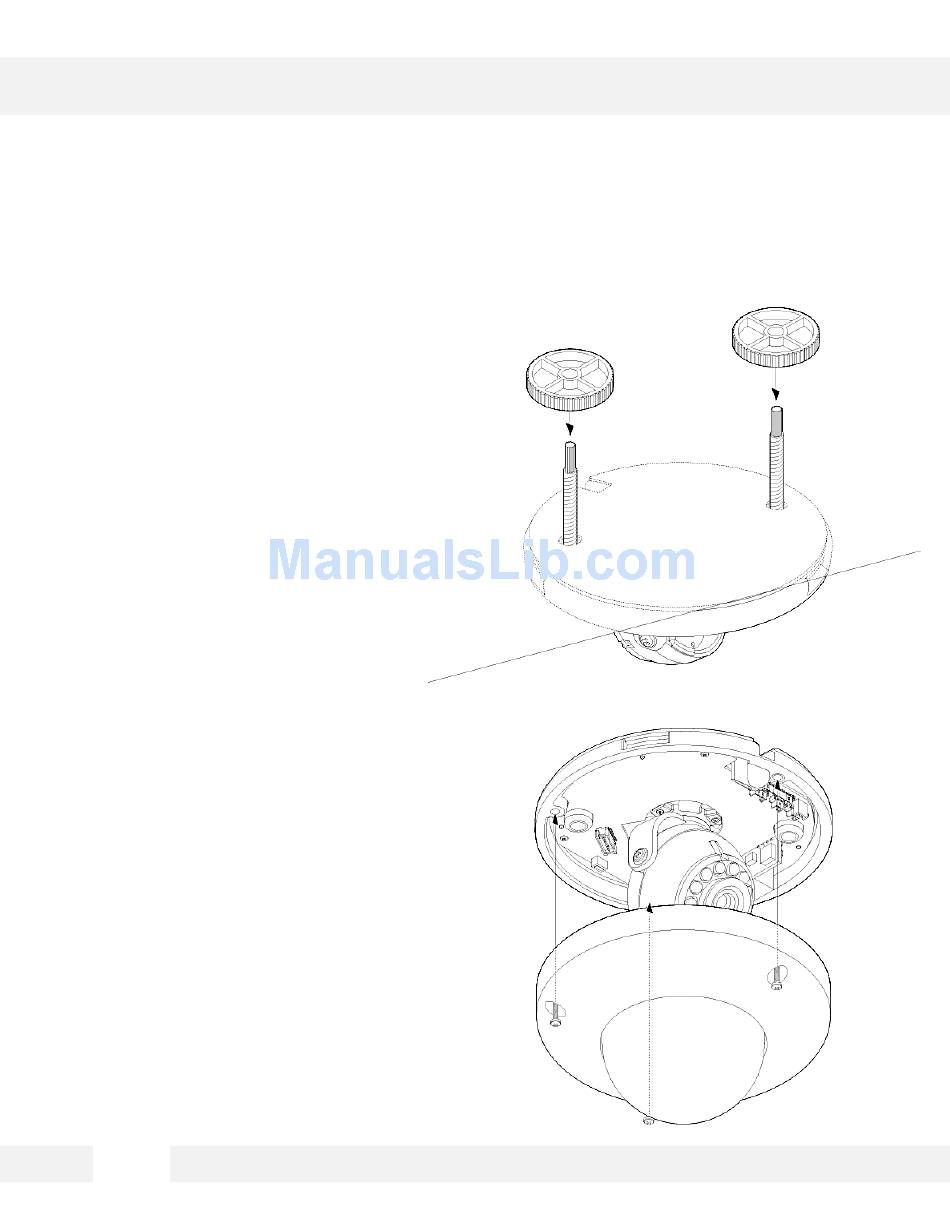

INSTALLATION USING MOUNT BOLT & NUT*
Detach the camera's cover dome from
1.
the camera's module by unscrewing
the three cover dome screws.
2. Using the camera or mounting
template, mark and drill the necessary
holes in the wall or ceiling.
3. Secure the two long mounting screws
to the camera's base.
4. Pull wires through and make
connections.
5. Mount the camera to the mounting
surface using the 2 mounting nuts.
Secure the camera's cover dome onto
6.
the camera base to complete the
installation.
