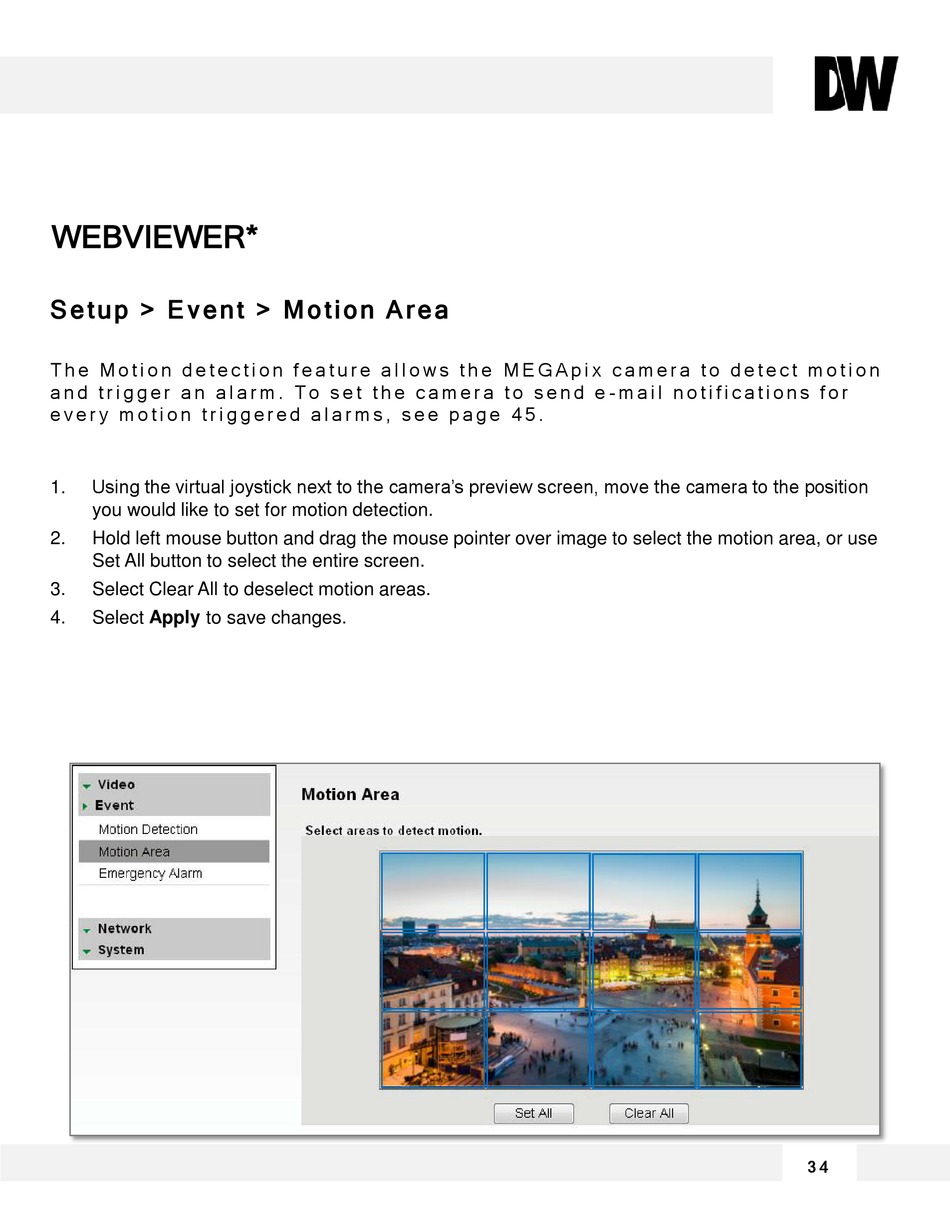

Digital Watchdog MEGApix DWC-MF21M4TIR Manual page 34

WEBVIEWER*
S e t u p > E v e n t > M o t i o n A r e a
T h e M o t i o n d e t e c t i o n f e a t u r e a l l o w s t h e M E G A p i x c a m e r a t o d e t e c t m o t i o n
a n d t r i g g e r a n a l a r m . T o s e t t h e c a m e r a t o s e n d e - m a i l n o t i f i c a t i o n s f o r
e v e r y m o t i o n t r i g g e r e d a l a r m s , s e e p a g e 4 5 .
Using the virtual joystick next to the camera's preview screen, move the camera to the position
1.
you would like to set for motion detection.
2. Hold left mouse button and drag the mouse pointer over image to select the motion area, or use
Set All button to select the entire screen.
3. Select Clear All to deselect motion areas.
4. Select Apply to save changes.
