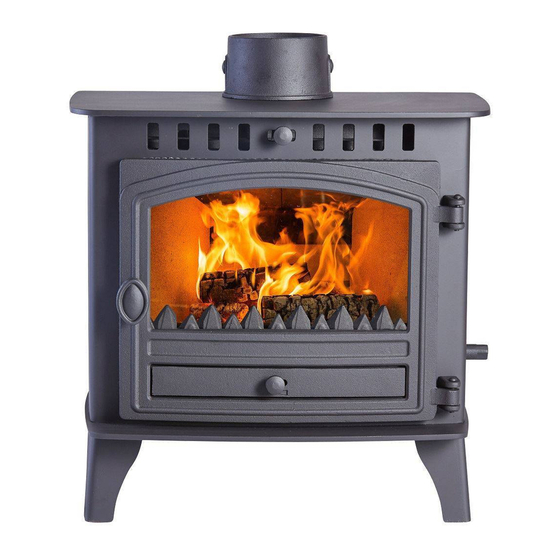

H E R A L D 5
H E R A L D 5
H E R A L D 5
H E R A L D 5
S L I M L I N E
S L I M L I N E
S L I M L I N E
S L I M L I N E
C L E A N B U R N
C L E A N B U R N
C L E A N B U R N
C L E A N B U R N
Installation and Operating Instructions
A Hetas certified engineer must carry out the installation of this appliance;
alternatively, your local Building Control Officer can approve the completed
installation, should a non-certified engineer undertake the installation. It is an
offence, under UK law, not to comply with this advice. Please hand these
instructions to the stove user when the installation is complete. Leave the
system ready for operation and instruct the user in the correct use of the
appliance and operation of controls.
C E
C E
C E
C E
S T O V E
S T O V E
S T O V E
S T O V E
I I
I I
I I
I I
V V V V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HERALD 5 SLIMLINE CE VII and is the answer not in the manual?

Questions and answers

Related Manuals for Hunter Stoves HERALD 5 SLIMLINE CE VII

Summary of Contents for Hunter Stoves HERALD 5 SLIMLINE CE VII

  • Page 1 H E R A L D 5 H E R A L D 5 H E R A L D 5 H E R A L D 5 S L I M L I N E S L I M L I N E S L I M L I N E S L I M L I N E V V V V...
  • Page 2 Herald 5 Slimline CE Technical Specification Stove Mass 88 kg Wood Total Efficiency 72.5 % Nominal Heat Output 4.5 KW Mean CO Emission (at 13% O2) 0.27 % Mean Flue Gas Temperature 270 °C Flue Gas Mass Flow 5.7 g/s This appliance is not suitable for use in a shared flue This appliance is suitable for intermittent burning...

  • Page 3: Flue Collar

    Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect use or installation. Flue Collar Place the Flue Gasket on the top, or rear outlet as required. Place the Flue Collar on top of the Gasket.

  • Page 4: Fire Bricks

    Fire Bricks The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Hunter stove. Baffle Remove the Riddling Bars, Cam Bar and Catch Bar. Remove the ash pan.

  • Page 5: Installation Instructions

    Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws, European and national standards and other specifications or regulations as they affect the installation of the stove.

  • Page 6: Installation

    Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 125mm and not more than 200mm. If any of these requirements are not met, the chimney should be lined by a suitable method.

  • Page 7: Material Clearances

    Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top and at least 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove.

  • Page 8: Commissioning And Handover

    Commissioning and Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere. Do not run the stove at full output for at least 24 hours.

  • Page 9: Operating Instructions

    Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove.

  • Page 10: Notes On Wood Burning

    Grate Your Hunter Stove is fitted with a locomotive type grate. So that de- ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. To burn wood, push the operating tool up and away from you. When left in this position, air is restricted through the bed of the fire providing a solid base to build up a bed of ash.

  • Page 11: Reduced Combustion

    Recommended Fuels Hunter Stoves recommend that wood logs be burnt in this appliance. Only authorised smokeless fuels may be used in smoke control areas. Warning!- Petroleum coke fuels or household waste must not be burnt on this appliance. This appliance should not be used as an incinerator.

  • Page 12: Safety Notes For Your Guidance

    Safety notes for your guidance FIRES CAN BE DANGEROUS – Always use a fireguard in the presence of children, the elderly or the infirm. The fireguard should be manufactured in accordance with BS 6539 – Fireguards for use with solid fuel appliances. DO NOT OVERFIRE –...

  • Page 13: General Maintenance

    Rope Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from...

  • Page 14: Chimney And Flue Ways

    Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels.

  • Page 15: Stove Spares

    STOVE SPARES Only Hunter Stoves authorised spares should be used with this stove. RIGHT HAND DOOR Right Hand Door (HHR06/005) Glass Clip (HHR08/046) Glass Clip Screw (FSJM05008SS) Door Glass (HH06/060) Door Slider (HHR06/006) Door Knob (HCR06/059) Slider Knob (HHR08/045) 8mm Flat Washer (FWFM08-17)
  • Page 16 STOVE BODY ASSEMBLY - PART SECTION - MULTIFUEL Flue Collar (HHR06/001) Flue Cover (HHR06/002) Baffle Side Brick (HHW05/063) (HHW05/056) Turbo Bar (HH06/101) Rear Brick – M/F (HHW05/055) Riddling Support (HH06/022) Ashpan (not shown) Riddling Bar – Lower (HHW05/015) (HCR06/020) Riddling Bar – Upper Cam Bar (HCR06/019) Catch Bar –...
