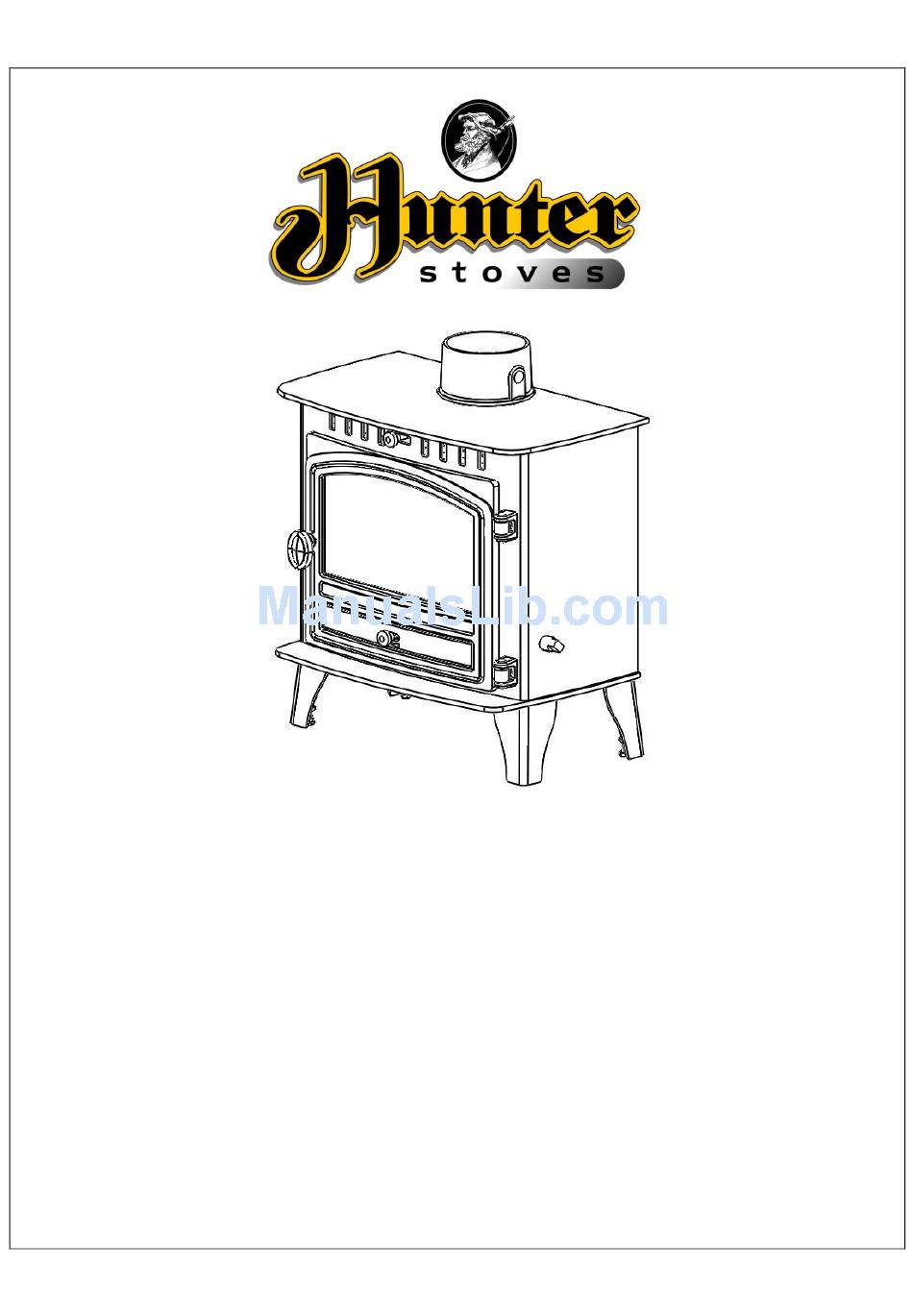

- Page 1 HERALD SLIMLINE 5 CleanBurn Stove Installation and Operating Instructions JINHHW05 RevF 27/04/12...
- Page 2 Herald Slimline 5 Technical Specification Appliance Mass 88 kg Total Efficiency 74.1 % 4.2 kW Nominal Heat Output 0.32 % Mean CO Emission (@13% O Mean Flue Gas Temperature 268 °C Flue Gas Mass Flow 5.0 g/s This appliance is not for use in shared flue This appliance is suitable for intermittent burning JINHHW05 RevF 27/04/12...
-
Page 3: General Guidance
Some types of fire cement are caustic and Competent Persons Scheme should not be allowed to come into contact Hunter Stoves recommend that this stove is with the skin. In case of contact, wash installed by a member of an accredited immediately with plenty of water. -
Page 4: Metal Parts
Never leave the stove unattended for long Metal Parts periods without first adjusting the controls to a When installing or servicing this stove, care safe setting. should be taken to avoid the possibility of personal injury. Careful air supply control should be exercised at all times. -
Page 5: In The Event Of A Chimney Fire
advise on solutions to this problem (e.g. anti- downdraught cowl). Do not fit an extractor fan in the same room as this appliance. CO Alarm Your installer should have fitted a CO alarm in the same room as the appliance. If the alarm sounds unexpectedly, follow the instructions given under “Warning Note”... -
Page 6: Fire Bricks
Fire Bricks Assembly The Fire Bricks, in this appliance, are factory Instructions fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Hunter Stove. Side Bricks OLLAR AND LANKING LATE Remove all the Riddling Bars, Cam Bar and Wind the eight M6 studs supplied into the fixing Catch Bar. - Page 7 Baffle / Throat Plate Lift the Baffle and slide to the left. When the right side of the Baffle clears the Baffle Support, lower the Baffle into the Fire Box and remove. Slide the base of the Side Brick towards the centre of the stove and remove.
-
Page 8: Installation Instructions
Connection to the Chimney Installation The chimney must be swept before connection Instructions to the stove. An existing fireplace opening can be bricked up or sealed with a register plate. Chimney The chimney height and the position of the A short length of flue pipe of minimum 125mm chimney terminal should conform to Building internal diameter may then be used to connect Regulations. -
Page 9: Air Supply
combustible hearth, at least 125 mm thick (this Minimum Draught – 1.2mm Water Gauge may include the thickness of a solid floor). Maximum Draught – 2.5mm Water Gauge If the stove is not to stand in an appliance recess, it may stand wholly above a hearth Air Supply made of non-combustible board / sheet material or tiles, at least 12mm thick. -
Page 10: Commissioning & Handover
Commissioning & Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere. -
Page 11: Aerosol Sprays
Secondary Air Operating Secondary air is controlled via the slider above the door; it is this “Airwash” that keeps a clean Instructions and uninterrupted view of the fire. The amount of air can be increased by moving the slider to the right. -
Page 12: Notes On Wood Burning
To burn wood, push the operating tool up and too few embers, add some kindling to prevent away from you. excessive smoke. When left in this position, air is restricted through the bed of the fire providing a solid IGHTING THE TOVE base to build up a bed of ash. -
Page 13: Reduced Combustion
Recommended Fuels the authority to be a smoke control area. It is an Hunter Stoves recommend that wood logs are offence to emit smoke from a chimney of a burnt in this appliance. -
Page 14: General Maintenance
Warning! - Petroleum coke fuels or household The finish can be renovated with Hunter Stoves waste must not be burnt on this appliance. paint. Glass Panel This appliance should not be used as an Clean the glass panel when cool with Hunter incinerator. -
Page 15: Troubleshooting
The glass gasket will have to be replaced when condition, a replacement rope kit may be a new piece of glass is fitted as the gaskets ordered from the Hunter Stoves spares range. become brittle after firing the stove. Over time you may also find that the gasket Chimney and Flueways changes colour. -
Page 16: Spares Information
Spares Information Single Door spares Single Door (HH06/067) Door Glass (HH06/069) Glass Clip (HHR08/46) Glass Gasket (HH06/070) Glass Clip Screw (FSJM05008SS) Door Handle (HCR06/059) Door Catch Assembly (DCH4) Door Slider Slider Knob (CH08/003) (HHR08/045) Rope Sealing Kit (SCPH6SDSK) Door Cover (HH06/068) JINHHW05 RevF 27/04/12... - Page 17 Double Door spares Right Hand Door Right Hand Door (HH06/081) Door Glass (HH06/083) Glass Clip Glass Gasket (HHR08/046) (HH06/084) Glass Clip Screw RH Door Cross (FSJM05008SS) (HH06/082B) Slider Knob Door Handle (HHR08/045) (HCR06/059) Door Slider (HH06/098) Door Catch Assembly (DCH4) Rope Sealing Kit (SCPHH06NDSK) Left Hand Door...
- Page 18 Body Assembly Spares – Multi-Fuel Flue Gasket (CH05/042) Recouping Baffle (HHW05/063) Hinge Tertiary Air Bar (HH06/050) (HH06/101) Rear Brick Hinge Pin (CNS05/006) (FRRE08-1.75) Side Brick Riddling Support (CNS05/007) (HH06/022) Catch Bar Single Door Riddling Bar (Upper) (HH06/134) (HHW05/034) Double door (HH06/085 Riddling Bar (Lower) (HHW05/033)
