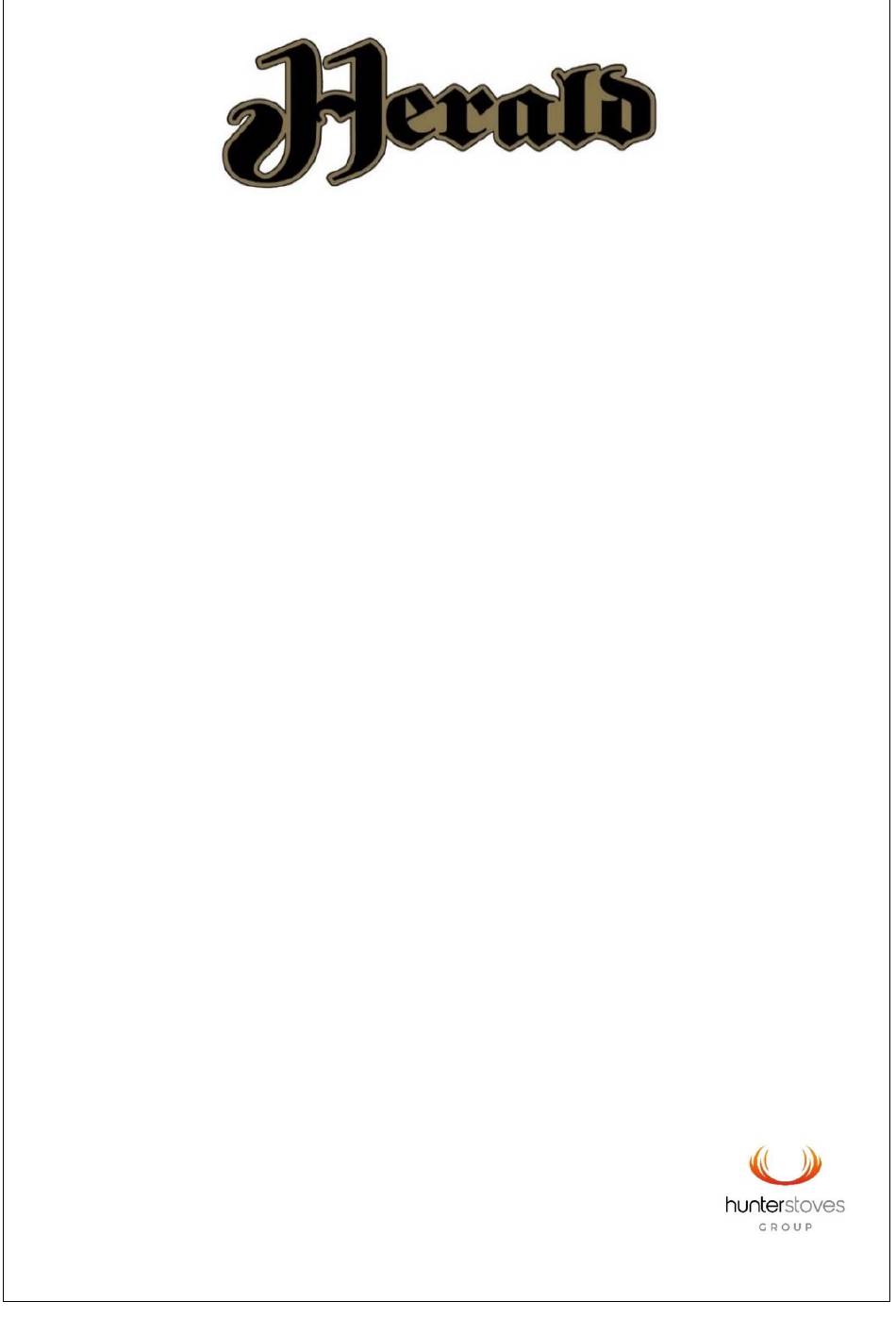

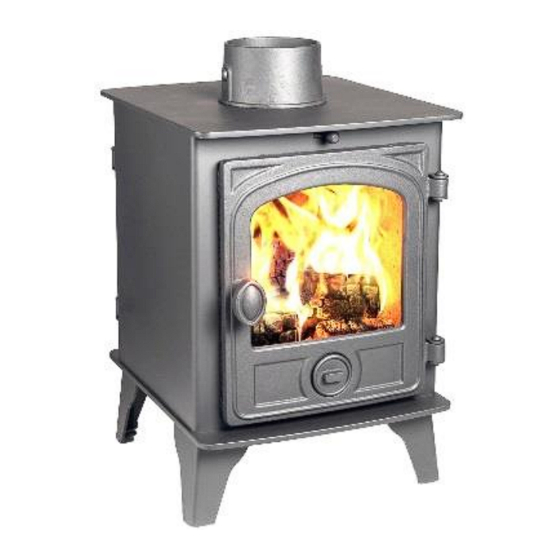

- Page 1 DOUBLE SIDED MULTIFUEL AND WOOD STOVES HAWK 4 & 4D HERALD 6 HERALD 8 HERALD 14/ CE VII MODELS Instructions for: Installation/Operating/Maintenance/Servicing JINHDDDS REV B 06/06/2019...
-
Page 2: Stove Models
STOVE MODELS HAWK 4 4/4D DOUBLE SINGLE HAWK 4/4D DOUBLE DOUBLE CVDSHK04FM/CVDSHK04FW CVDDHK04FM/CVDDHK04FW CVDSHK04DFM/CVDSHK04DFW CVDDHK04DFM/CVDDHK04DFW HERALD 6 DOUBLE SINGLE HERALD 6 DOUBLE DOUBLE CVDSHH06FMN/CVDSHH06FM/CVDSHH06FWN CVDDHH06FMN/CVDDHH06FM/CVDDHH06FWN CVSDSHH06FW/CVDSHH06LMN/CVSDSHH06LM CVSDDHH06FW/CVDDHH06LMN/CVSDDHH06LM CVDSHH06LWN/CVSDSHH06LW/CVDSHH06HMN CVDDHH06LWN/CVSDDHH06LW/CVDDHH06HMN CVSDSHH06HMN/CVDSHH06HWN/CVSDSHH06HW CVSDDHH06HM/CVDDHH06HWN/CVDDHH06HW HERALD 8 DOUBLE SINGLE HERALD 8 DOUBLE DOUBLE CVDSHH08FMN/CVDSHH08FM/CVDSHH08FWN... -
Page 3: Table Of Contents
Welcome to the Hunter Stoves family and thank you for purchasing a Herald stove. This stove was designed and built to be a high-performance heating appliance, and we hope it will bring you great enjoyment. The natural environment is important to us, so our stoves are manufactured to provide you with a clean and efficient burn that will keep you warm through cold winter nights. -
Page 4: Techincal Specification
Technical Specification Herald 6 Hawk 4/4D Hawk 4/4D Herald 6 Double Double Double Single Double Double Single Double Energy Efficiency Class Nominal Heat Output Wood 6.0kW 10.6kW 6.5kW 10.5kW Nominal Heat Output Ancit 5.1kW Energy Efficiency Efficiency Wood 72.7% 75.4% 75.8%... - Page 5 Technical Specification Herald 8 Herald 8 Herald 14 Herald 14 Double Single Double Double Double Single Double Double Energy Efficiency Class Nominal Heat Output Wood 8.9kW 11.5kW 12.5kW 17.8kW Nominal Heat Output Ancit 7.6kW 13.3kW Energy Efficiency Efficiency Wood 74.3% 75.7% 71.1% Efficiency...
-
Page 6: Important Information
COMPLETED PRIOR TO USE. General Guidance It is important that your stove is correctly installed and operated as Hunter Stoves Group cannot accept responsibility for any fault arising through incorrect installation, use, maintenance or servicing. These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. -
Page 7: Safety
Carbon Monoxide Detector Hunter Stoves recommend a Carbon Monoxide Detector that conforms to the latest issue of BS EN 50292 is placed in the same room as the appliance. The installation of such an alarm is not considered as a substitute for regular maintenance or servicing or the appliance and Flue system. -
Page 8: Remove Internal Components
Removing Internal Components All internal components must be removed prior to fitting the stove. This will make handling the stove easier; allow access to fixings and the flue outlet; as well as protect the internal components from damage during the installation process 1. -
Page 9: Appliance Dimensions
(head side upwards). Then tighten by using supplied nuts from inside stove. RE-ASSEMBLING THE STOVE Refit all the internal parts by following the ‘removing internal component’ instructions in reverse order. Appliance Dimensions HAWK 4/4D DOUBLE SINGLE HAWK 4/4D DOUBLE DOUBLE... - Page 10 HERALD 6 DOUBLE SINGLE HERALD 6 DOUBLE DOUBLE HERALD 8 DOUBLE SINGLE...
- Page 11 HERALD 8 DOUBLE DOUBLE HERALD 14 DOUBLE SINGLE HERALD 14 DOUBLE DOUBLE...
-
Page 12: Pre Installation Requirments
The diameter of the Flue should not be less than Ø125mm (Hawk 4) and Ø150mm (Herald 6, 8 and 14) and not more than Ø200mm. Do not connect to systems that have large voids or spaces. If any of these requirements are not met, the chimney should be lined by a suitable method. -
Page 13: Legal Requirements
0800 013 0900 Air Supply The room or space containing this appliance does not need a permanent, unobstructed air opening (Hawk 4/4D). The following stoves need a permanent, unobstructed air opening of – Herald 6 Double Single – 110mm²... -
Page 14: Clearances
Please check that all components are correctly assembled and working correctly. Ensure the Air Controls are working correctly. Hunter Stoves Group recommend that you carry out a smoke draw test to check the soundness of the chimney/flue system and seals: Place a Smoke Pellet in the centre of the Grate, ensure that all of the Air Controls are fully open and close the Door. -
Page 15: Operating Instructions
The user should be warned to use a fireguard to BS 8423 in the presence of children, aged and/or infirm persons. Hunter Stoves Group also recommend that a CO alarm is fitted into the room where the appliance is located. - Page 16 The primary and secondary air inlets must be kept clear from obstruction and blockage. Primary Air This provides a conventional air draught to the bed of the fire. Hawk 4/4D only. Primary air is controlled via the spinner in the door.
- Page 17 Lighting the Stove To light the stove, open the primary and secondary air controls fully. Light one or two firelighters placed centrally on the grate, allowing the flames to become established before placing several pieces of small dry kindling in a criss-cross fashion above the firelighters, taking care not to smother the fire. Close the stove door.
- Page 18 (When refuelling it is important to have a damper in the open position if you have one.) Recommended Fuels Hunter Stoves Group recommend that only wood logs with a moisture content of less than 20% and anthracite or a manufactured briquette smokeless fuel which is suitable for closed door appliances are used on this appliance.
-
Page 19: Maintenance & Servicing
Rope Check the rope around the door. If rope is becoming detached, use rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from the Hunter Stoves Group spares range. - Page 20 Annual Service Hunter Stoves Group recommend that this appliance is serviced annually, preferably prior to the start of the heating season, thus avoiding any delay in receiving replacement components, should you need them.
-
Page 21: Troubleshooting
TROUBLESHOOTING ISSUE CAUSE RESOLUTION Problem starting the fire and Low flue draught Speak to your installer keeping it burning Wood with moisture content over 20% Ensure use of dry seasoned wood with less than 20% moisture content Unable to control fire High flue draught Speak to your installer Short burn time... - Page 22 ISSUE CAUSE RESOLUTION Creosote build-up in chimney Wood with moisture content over 20% Use dry seasoned wood (less than 20% moisture content). Operate at a high temperature for short periods each time the appliance is used to avoid large build-ups of tars and creosotes.
-
Page 23: Optional Extras
Herald 6 SCPH6NDSK (DOUBLE DOOR) SCPH6SDSK (SINGLE DOOR) Herald 8 & 14 SCPH8NDSK (DOUBLE DOOR) SCPH8SDSK (SINGLE DOOR) ACCESSORIES Brass Handle (Not Hawk 4/4D) HCR06059B Brass Slider Knob (All) HHR08045B Cross Kit – Herald 6 CKH56 Cross Kit – Herald 8/14... - Page 24 HAWK 4D – CONTEMPORARY D DOOR HERALD 6 (BOTH) – RIGHT HAND DOOR HERALD 6 (BOTH) – LEFT HAND DOOR...
- Page 25 HERALD 6 (BOTH) – SINGLE DOOR HERALD 8/14 (ALL) – RIGHT HAND DOOR HERALD 8/14 (ALL) – LEFT HAND DOOR...
- Page 26 HERALD 8/14 (ALL) – SINGLE DOOR HAWK 4/4D DOUBLE SINGLE - MULTIFUEL HAWK 4/4D DOUBLE SINGLE - WOOD...
- Page 27 HAWK 4/4D DOUBLE DOUBLE - MULTIFUEL HAWK 4/4D DOUBLE DOUBLE - WOOD HERALD 6 DOUBLE SINGLE - MULTIFUEL...
- Page 28 HERALD 6 DOUBLE SINGLE - WOOD HERALD 6 DOUBLE DOUBLE - MULTIFUEL HERALD 6 DOUBLE DOUBLE - WOOD...
- Page 29 HERALD 8 DOUBLE SINGLE - MULTIFUEL HERALD 8 DOUBLE SINGLE - WOOD HERALD 8 DOUBLE DOUBLE - MULTIFUEL...
- Page 30 HERALD 8 DOUBLE DOUBLE - WOOD HERALD 14 DOUBLE SINGLE - MULTIFUEL HERALD 14 DOUBLE SINGLE - WOOD...
- Page 31 HERALD 14 DOUBLE DOUBLE - MULTIFUEL HERALD 14 DOUBLE DOUBLE WOOD...
-
Page 32: Installation & Commissioning Checklist
INSTALLATION & COMMISSIONING CHECKLIST PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Address Telephone Number Email APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number COMMISSIONING CHECK (Complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the flue draught test? Please write down the flue draught reading:... -
Page 33: Service Records
SERVICE RECORDS... -
Page 34: Full Warranty Information
This is needed in the event of a claim during the warranty period. 4. Only genuine Hunter Stoves spare parts or consumables can be used in the servicing and maintenance of the appliance during any standard or extended warranty period. These can be sourced from your authorised supplier directly or through our website spares portal. - Page 35 7. Cost associated with the removal and re-installation of an appliance subject to a warranty claim. Hunter Stoves Group total liability will only extend to the total purchase price paid for the goods in any warranty claim. Hunter Stoves Group reserve the right to replace, repair or refund to value of goods purchased.
- Page 36 Further Information For extra guidance on using your stove, please visit our YouTube channel by searching ‘Hunter Stoves Group’ or see the helpful hints section of our website; www.hunterstoves.co.uk. This appliance is suitable for intermittent burning. This appliance should not be used in a shared flue.
