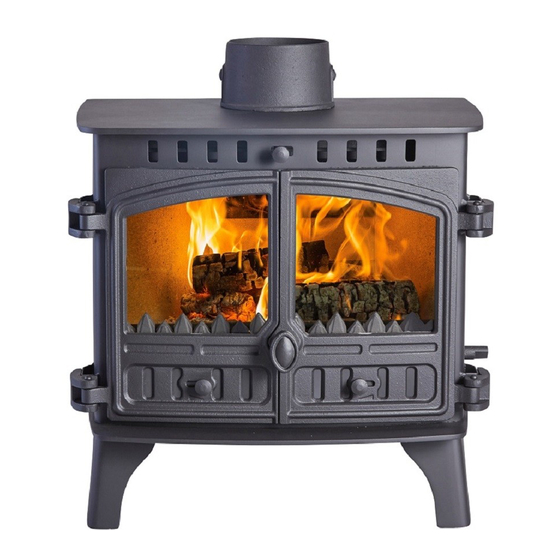

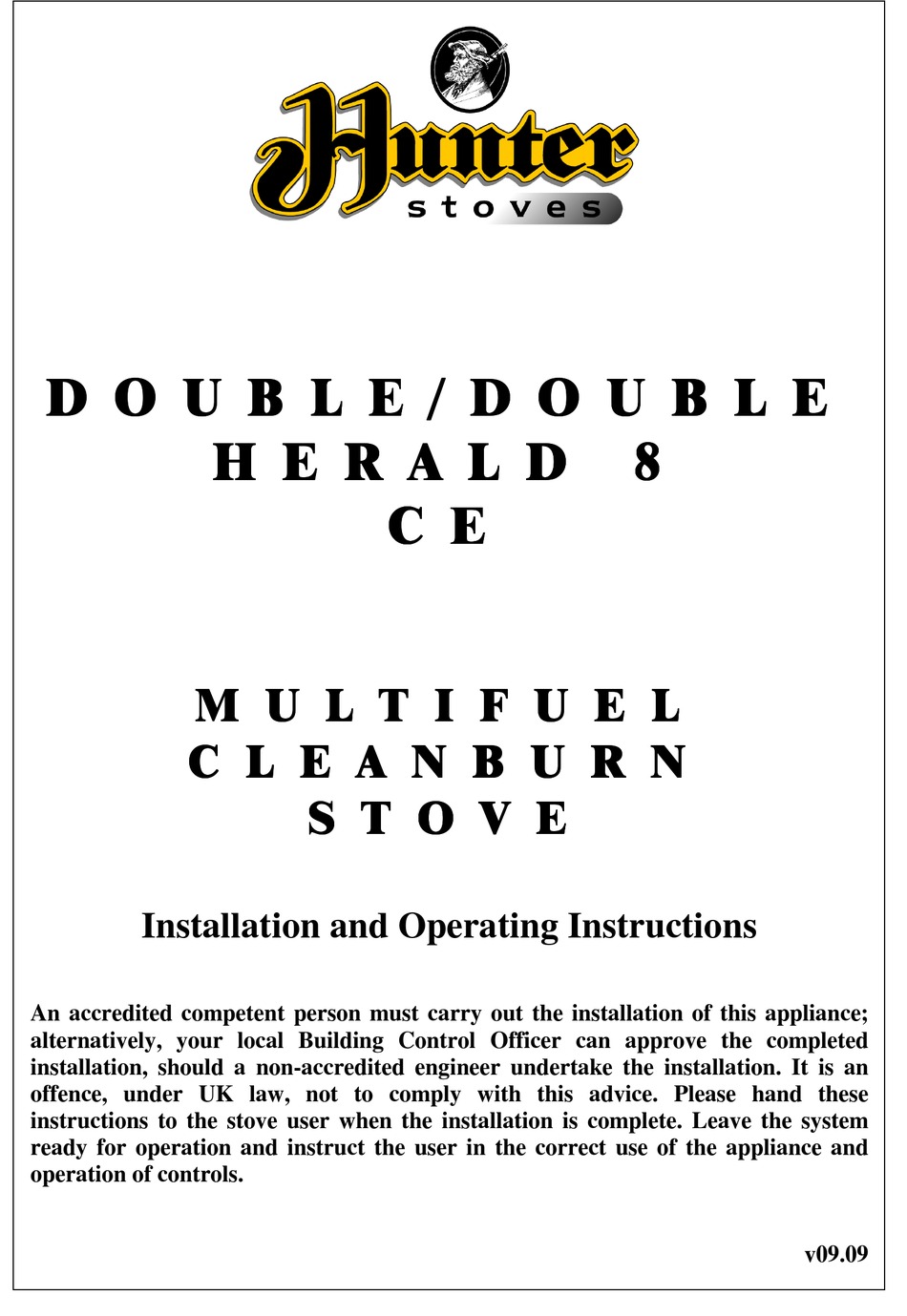

D O U B L E / D O U B L E
D O U B L E /
D O U B L E /
D O U B L E /
M U L T I F U E L
M U L T I F U E L
M U L T I F U E L
M U L T I F U E L
C L E A N B U R N
C L E A N B U R N
C L E A N B U R N
C L E A N B U R N
Installation and Operating Instructions
An accredited competent person must carry out the installation of this appliance;
alternatively, your local Building Control Officer can approve the completed
installation, should a non-accredited engineer undertake the installation. It is an
offence, under UK law, not to comply with this advice. Please hand these
instructions to the stove user when the installation is complete. Leave the system
ready for operation and instruct the user in the correct use of the appliance and
operation of controls.
H H H H E R A L D
E R A L D
E R A L D
E R A L D
S T O V E
S T O V E
S T O V E
S T O V E
D O U B L E
D O U B L E
D O U B L E
C E
C E
C E
C E
8 8 8 8
v09.09
Advertisement
Table of Contents
Related Manuals for Hunter Stoves Herald 8 Double-Double CE
Summary of Contents for Hunter Stoves Herald 8 Double-Double CE
- Page 1 D O U B L E / D O U B L E / D O U B L E D O U B L E / D O U B L E / D O U B L E D O U B L E D O U B L E H H H H E R A L D...
-
Page 2: Technical Specification
Herald 8 Double-Double CE Technical Specification Stove Mass 240 kg Wood Total Efficiency 79.0% Nominal Heat Output 11 KW Mean CO Emission (at 13% O2) 0.36 % Mean Flue Gas Temperature 309 °C Flue Gas Mass Flow 7.5 g/s This appliance is not suitable for use in a shared flue... -
Page 3: Important Warning
Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect use or installation. Important Warning This stove must not be installed into a chimney that serves any other heating appliance. -
Page 4: Fire Bricks
Fire Bricks The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Hunter Stove. Side Bricks Remove the outer 3 Riddling Bars (each side), Slide out the Side Bricks from base, into the Stove. -
Page 5: Installation Instructions
Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove. -
Page 6: Flue Draught
Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 152mm and not more than 200mm. If any of these requirements are not met, the chimney should be lined by a suitable method. -
Page 7: Material Clearances
Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top to obtain maximum heat output. All non-combustible walls closer than 300mm to the stove should be at least 75mm thick. Allow an apron of a least 300mm at the fronts of the stove and 150mm on either side. -
Page 8: Air Controls
Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove. -
Page 9: Multifuel Grate
Multifuel Grate Your Hunter Stove is fitted with a locomotive type grate. So that de- ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. To burn wood, push the operating tool up and away from you so that the front faces of the riddling Bars are inline. -
Page 10: Recommended Fuels
Recommended Fuels Hunter Stoves recommend that wood logs be burnt in this appliance. Only authorised smokeless fuels may be used in smoke control areas. Warning!- Petroleum coke fuels or household waste must not be burnt on this appliance. Should any difficulties arise over fuel quality or suitability, consult your local approved coal merchant or: HETAS Ltd.–... -
Page 11: General Maintenance
Rope Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from the Hunter... -
Page 12: Chimney And Flue Ways
Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels. The baffle brick will need to be removed from its supports in order to sweep the chimney (see assembly instructions). -
Page 13: Stove Spares
STOVE SPARES Only Hunter Stoves authorised spares should be used with this stove RIGHT HAND DOOR Right Hand Door (HHR08/084) Door Glass (HHR08/082) Glass Gasket Glass Clip (HHR08/081) (HHR08/046) Glass Clip Screw (FSJM05008SS) Door Knob (HCR06/059) M8 Full Nut (FNFN08) - Page 14 STOVE BODY ASSEMBLY – PART SECTION - MULTIFUEL Flue Collar (CH08/030) Flue Gasket (CH08/032) Baffle (HHR08DD/030) Turbo Bar Pin Side Bricks (Not Shown) (HHR08DD/024) (HCR06DD/024) Turbo Bar Side Plates (HHR08DD/025) (HHR08DD/029) Cam Bar (HHR08/008) Catch Bar Riddling Bar - Upper (HHR08/030) (HHR08/083) Riddling Bar - Lower...
