Hawk 3 MKI
Hawk 3D MKI
Installation and Operating Instructions
Please hand these instructions to the stove user when the installation
is complete. Leave the system ready for operation and instruct the
user in the correct use of the appliance and operation of controls.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hawk 3 MKI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hunter Stoves Hawk 3 MKI

Summary of Contents for Hunter Stoves Hawk 3 MKI

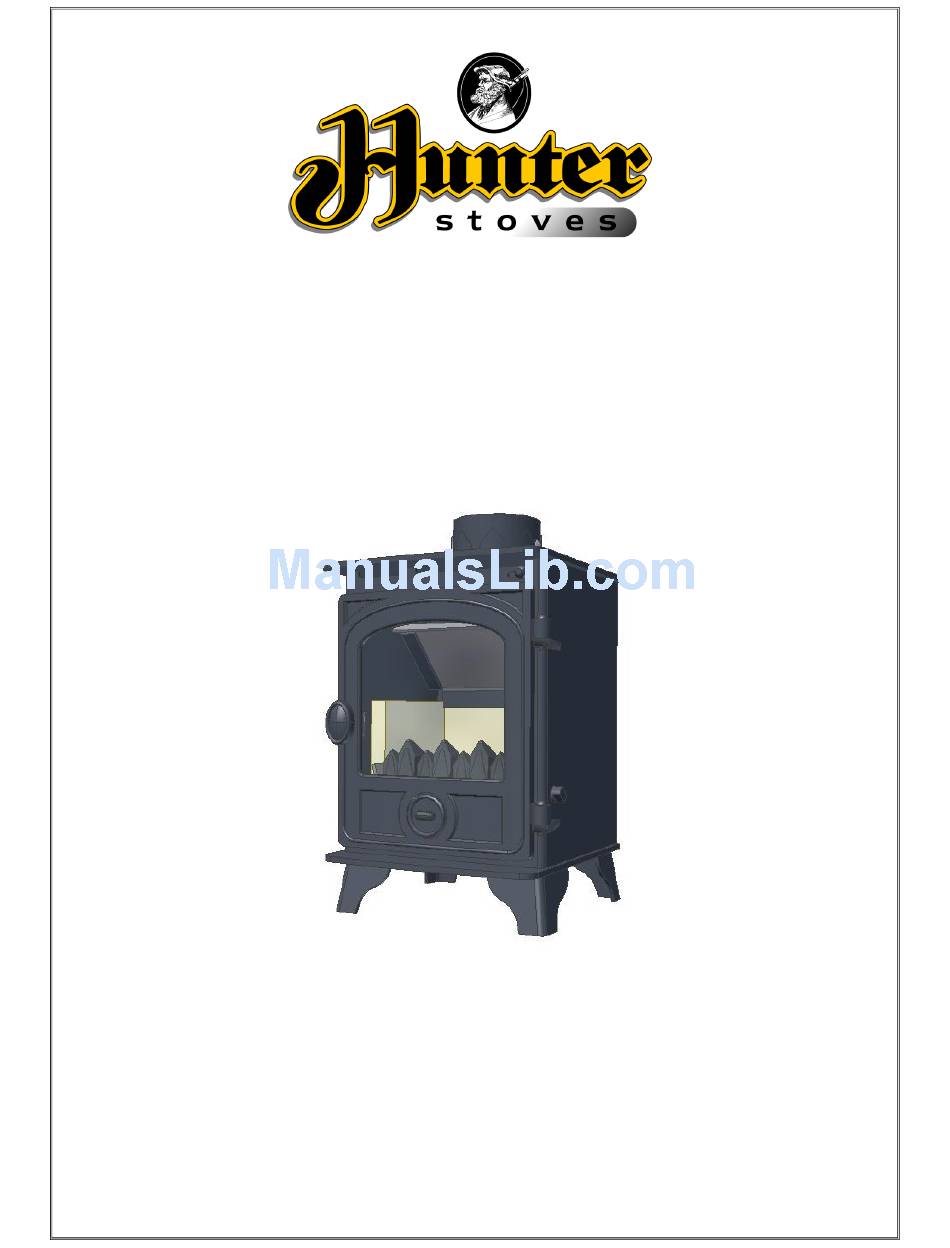

  • Page 1 Hawk 3 MKI Hawk 3D MKI Installation and Operating Instructions Please hand these instructions to the stove user when the installation is complete. Leave the system ready for operation and instruct the user in the correct use of the appliance and operation of controls.

  • Page 2: Blanking Plate

    PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect installation. HAWK 3 STOVE ASSEMBLY Flue Collar Place the flue collar on the top or rear outlet as required and secure to the four locating tabs inside the flue outlet using the 6mm nuts &...

  • Page 3: Installation Instructions

    Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove.

  • Page 4: Installation

    Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 125mm and not more than 230mm. If any of these requirements are not met, the chimney should be lined by a suitable method.

  • Page 5: Material Clearances

    It is essential that all connections between the stove and chimney-flue are sealed and made airtight. Both the chimney and flue pipe must be accessible for cleaning and if ANY parts of the chimney cannot be reached through the stove (with throat plate removed), a soot door must be fitted in a suitable position to enable this to be done.

  • Page 6: Operating Instructions

    Operating Instructions This appliance is not suitable for use in a shared flue Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove.

  • Page 7: Multifuel Grate

    Multifuel Grate Your Hunter Herald is fitted with a locomotive type grate. So that de-ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. The grate is designed to burn both wood and solid fuels.

  • Page 8: Lighting The Stove

    out the grate bars is nearly always caused by ash being allowed to build up to the underside of the grate. Notes on Woodburning With a full load of wood, the stove will need to be refuelled approximately once every 1.5 hours.
  • Page 9 Warning!- The stove will remain hot for a considerable time after the fire has been extinguished. Recommended Fuels Anthracite is an approved natural smokeless fuel (not processed) and therefore can vary greatly in quality and performance. It generally requires excellent air supply and above average fire-bed temperatures to maintain maximum performance and with experience we would suggest that it is used in conjunction with other approved manufactured smokeless fuels as per the HETAS approved list.

  • Page 10: Safety Notes For Your Guidance

    Safety notes for your guidance FIRES CAN BE DANGEROUS – Always use a fireguard in the presence of children, the elderly or the infirm. The fireguard should be manufactured in accordance with BS 6539 – Fireguards for use with solid fuel appliances. DO NOT OVERFIRE –...

  • Page 11: General Maintenance

    Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from the Hunter Stoves spares range.

  • Page 12: Troubleshooting

    Troubleshooting Fire will not burn Check that: 1. The air inlet is not obstructed in any way 2. Chimneys and flueways are clear 3. A suitable fuel is being used 4. There is an adequate air supply into the room 5.
  • Page 13 HCR03014 Side Firebrick (Multifuel) HCR03015 Wood Front (Woodburner) HCR03021 Operating/Riddling Tool HFR07040 Side Plate (RHS) HCR03016 Side Plate (LHS) HCR03017 Top Brick Bar HCR03011 Lower Brick/ Grate Support Bar HCR06014 Throat Plate HCR03013 Use only Hunter Stoves Ltd spare parts...
