Hunter Stoves Herald 4 CE Installation And Operating Instructions Manual

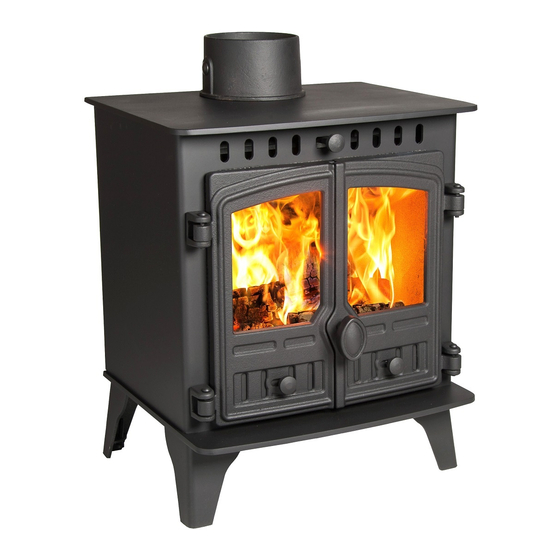

Clean burn multifuel stove
Hide thumbs Also See for Herald 4 CE:
Table of Contents

Advertisement

Quick Links

H E R A L D
H E R A L D
H E R A L D
H E R A L D
C L E A N
C L E A N
C L E A N
C L E A N
M U L T I F U E L
M U L T I F U E L
M U L T I F U E L
M U L T I F U E L
Installation and Operating Instructions
An accredited competent person must carry out the installation of this
appliance; alternatively, your local Building Control Officer can approve the
completed installation, should a non-accredited engineer undertake the
installation. It is an offence, under UK law, not to comply with this advice.
Please hand these instructions to the stove user when the installation is
complete. Leave the system ready for operation and instruct the user in the
correct use of the appliance and operation of controls.
4 C E
4 C E
4 C E
4 C E
S T O V E
S T O V E
S T O V E
S T O V E
B U R N
B U R N
B U R N
B U R N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Herald 4 CE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hunter Stoves Herald 4 CE

Summary of Contents for Hunter Stoves Herald 4 CE

  • Page 1 H E R A L D H E R A L D H E R A L D H E R A L D 4 C E 4 C E 4 C E 4 C E C L E A N C L E A N C L E A N C L E A N...

  • Page 2: Technical Specification

    Herald 4 CE Technical Specification Stove Mass 88 kg Wood Total Efficiency 78.3 % Nominal Heat Output 4.0 KW Mean CO Emission (at 13% O2) 0.27 % Mean Flue Gas Temperature 270 °C Flue Gas Mass Flow 5.7 g/s Ancit Total Efficiency 66.6 %...

  • Page 3: Important Warning

    Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect use or installation. Important Warning This stove must not be installed into a chimney that serves any other heating appliance.

  • Page 4: Fire Bricks

    Fire Bricks The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Hunter Stove. Side Bricks Remove all the Riddling Bars, Cam Bar and Catch Bar. Slide out both Side Plates.

  • Page 5: Installation Instructions

    Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove.

  • Page 6: Installation

    Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 125mm and not more than 200mm. If any of these requirements are not met, the chimney should be lined by a suitable method.

  • Page 7: Material Clearances

    Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top and at least 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove.

  • Page 8: Commissioning And Handover

    Commissioning and Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere.

  • Page 9: Air Controls

    Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove.

  • Page 10: Multifuel Grate

    Multifuel Grate Your Hunter Stove is fitted with a locomotive type grate. So that de-ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. The grate is designed to burn both wood and solid fuels. To burn solid mineral fuels place the operating tool over the riddling spigot and pull it down towards you.

  • Page 11: Lighting The Stove

    Notes on Wood burning Wood burns best on a bed of ash and it is therefore only necessary to remove surplus ash from the stove occasionally. Burn only dry, well-seasoned wood, which should have been cut, split and stacked for at least 12 months, with free air movement around the sides of the stack to enable it to dry out.

  • Page 12: Safety Notes For Your Guidance

    Recommended Fuels Only authorised smokeless fuels may be used in smoke control areas. Warning!- Petroleum coke fuels or household waste must not be burnt on this appliance. Should any difficulties arise over fuel quality or suitability, consult your local approved coal merchant or: HETAS Ltd.–...

  • Page 13: General Maintenance

    Rope Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from...

  • Page 14: Chimney And Flue Ways

    Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels.

  • Page 15: Stove Spares

    STOVE SPARES LEFT HAND DOOR Left Hand Door Glass Clip (HH04/070) (HHR08/046) Cross (Removable) (HH04/071B) Glass Clip Screw FSJM05008SS Door Glass (HH04/073) Slider (not shown) Glass Gasket (HH04/091) (HH04/072) Slider Knob (HHR08/045) RIGHT HAND DOOR Right Hand Door (HH04/069) Cross (Removable) Door Glass (HH04/071A) (HH04/030)
  • Page 16 STOVE BODY ASSEMBLY – PART SECTION – MULTIFUEL Flue Collar (HHR06/001) Flue Cover (HHR06/002) Side Brick (HH04/116) Baffle Brick (HH04/107) Side Plate (HH04/117 A/B) Turbo Bar (HH04/105) Cam Bar (HH04/015) Rear Brick – M/F (HH04/109) Riddling Support (HH04/022) Ashpan (HH04/027) Riddling Bar - Upper (HCR06/019) Catch Bar...
