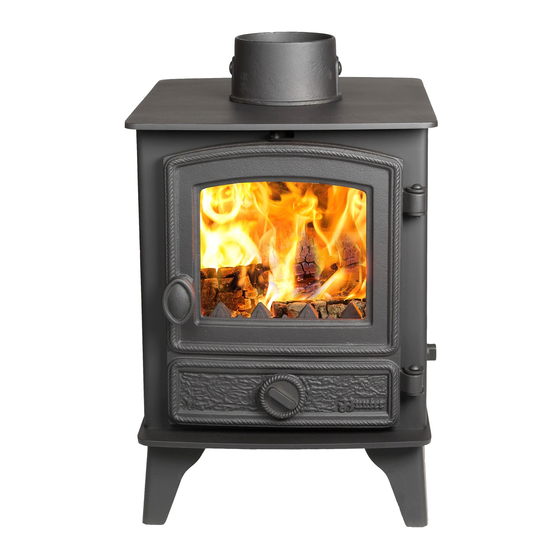

Hunter Stoves Double Hawk 4 CE Installation And Operating Instructions Manual

Multifuel cleanburn stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

D O U B L E / S I N G L E
D O U B L E / S I N G L E
D O U B L E / S I N G L E
D O U B L E / S I N G L E
M U L T I F U E L
M U L T I F U E L
M U L T I F U E L
M U L T I F U E L
C L E A N B U R N
C L E A N B U R N
C L E A N B U R N
C L E A N B U R N
Installation and Operating Instructions
An accredited competent person must carry out the installation of this appliance;
alternatively, your local Building Control Officer can approve the completed
installation, should a non-accredited engineer undertake the installation. It is an
offence, under UK law, not to comply with this advice. Please hand these
instructions to the stove user when the installation is complete. Leave the system
ready for operation and instruct the user in the correct use of the appliance and
operation of controls.
H A W K
H A W K
H A W K
H A W K
C E
C E
C E
C E
S T O V E
S T O V E
S T O V E
S T O V E
4
4
4
4
v09.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Double Hawk 4 CE and is the answer not in the manual?

Questions and answers

Related Manuals for Hunter Stoves Double Hawk 4 CE

Summary of Contents for Hunter Stoves Double Hawk 4 CE

  • Page 1 D O U B L E / S I N G L E D O U B L E / S I N G L E D O U B L E / S I N G L E D O U B L E / S I N G L E H A W K H A W K H A W K...
  • Page 2 Double/Single Hawk 4 CE Technical Specification Stove Mass 71 kg Wood Total Efficiency 72.7 % Nominal Heat Output 5.5 KW Mean CO Emission (at 13% O2) 0.46 % Mean Flue Gas Temperature 344 °C Flue Gas Mass Flow 5.3 g/s Ancit Total Efficiency 68.8 %...

  • Page 3: Important Warning

    Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect use or installation. Important Warning This stove must not be installed into a chimney that serves any other heating appliance.

  • Page 4: Fire Bricks

    Fire Bricks The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Hunter Stove. Side Bricks Remove The Ashpan, all of the Riddling Bars, Cam Bars and Catch Bars.

  • Page 5: Installation Instructions

    Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove.

  • Page 6: Flue Draught

    Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 125mm and not more than 200mm. If any of these requirements are not met, the chimney should be lined by a suitable method.

  • Page 7: Material Clearances

    Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top to obtain maximum heat output. All non-combustible walls closer than 300mm to the stove should be at least 75mm thick. Allow an apron of a least 300mm at the fronts of the stove and 150mm on either side.

  • Page 8: Clean Glass

    Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove.

  • Page 9: Multifuel Grate

    Multifuel Grate Your Hunter Stove is fitted with a locomotive type grate. So that de- ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. The grate is designed to burn both wood and solid fuels.

  • Page 10: Lighting The Stove

    Wood burns best on a bed of ash and it is therefore only necessary to remove surplus ash from the stove occasionally. Burn only dry, well-seasoned wood, which should have been cut, split and stacked for at least 12 months, with free air movement around the sides of the stack to enable it to dry out. Burning wet or unseasoned wood will create tar deposits in the stove and chimney and will not produce a satisfactory heat output.

  • Page 11: Safety Notes For Your Guidance

    Safety notes for your guidance FIRES CAN BE DANGEROUS – Always use a fireguard in the presence of children, the elderly or the infirm. The fireguard should be manufactured in accordance with BS 6539 – Fireguards for use with solid fuel appliances. DO NOT OVERFIRE –...

  • Page 12: General Maintenance

    Rope Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from the Hunter...

  • Page 13: Chimney And Flue Ways

    Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels. The baffle brick will need to be removed from its supports in order to sweep the chimney (see assembly instructions).

  • Page 14: Stove Spares

    STOVE SPARES Only Hunter Stoves authorised spares should be used with this stove STANDARD DOOR Door – Standard (HCR06/037) Fan Catch (HCR06/047) Door Glass (HCR06/039) Glass Clip (HHR08/046) Door Handle Glass Clip Screw (HCR06/059) (FSJM05008SS) Primary Air Spinner (HCR06/028) CONTEMPORARY DOOR Door –...
  • Page 15 STOVE BODY ASSEMBLY – PART SECTION - MULTIFUEL Flue Collar (CH05/010) Recouping Baffle (HCR06DS/034) Side Bricks Turbo Bar Pin (HCR06DS/021) (HCR06DD/024) Turbo Bar Side Plates (HCR06DD/021) (HCR06DS/033) Cam Bar (HCR06/021) Door Seal Bar Riddling Bar - Upper (HHR08DS/022) (HCR06/094) Riddling Bar - Lower (HHR08DS/021) Ashpan (HCR06DS/014)
