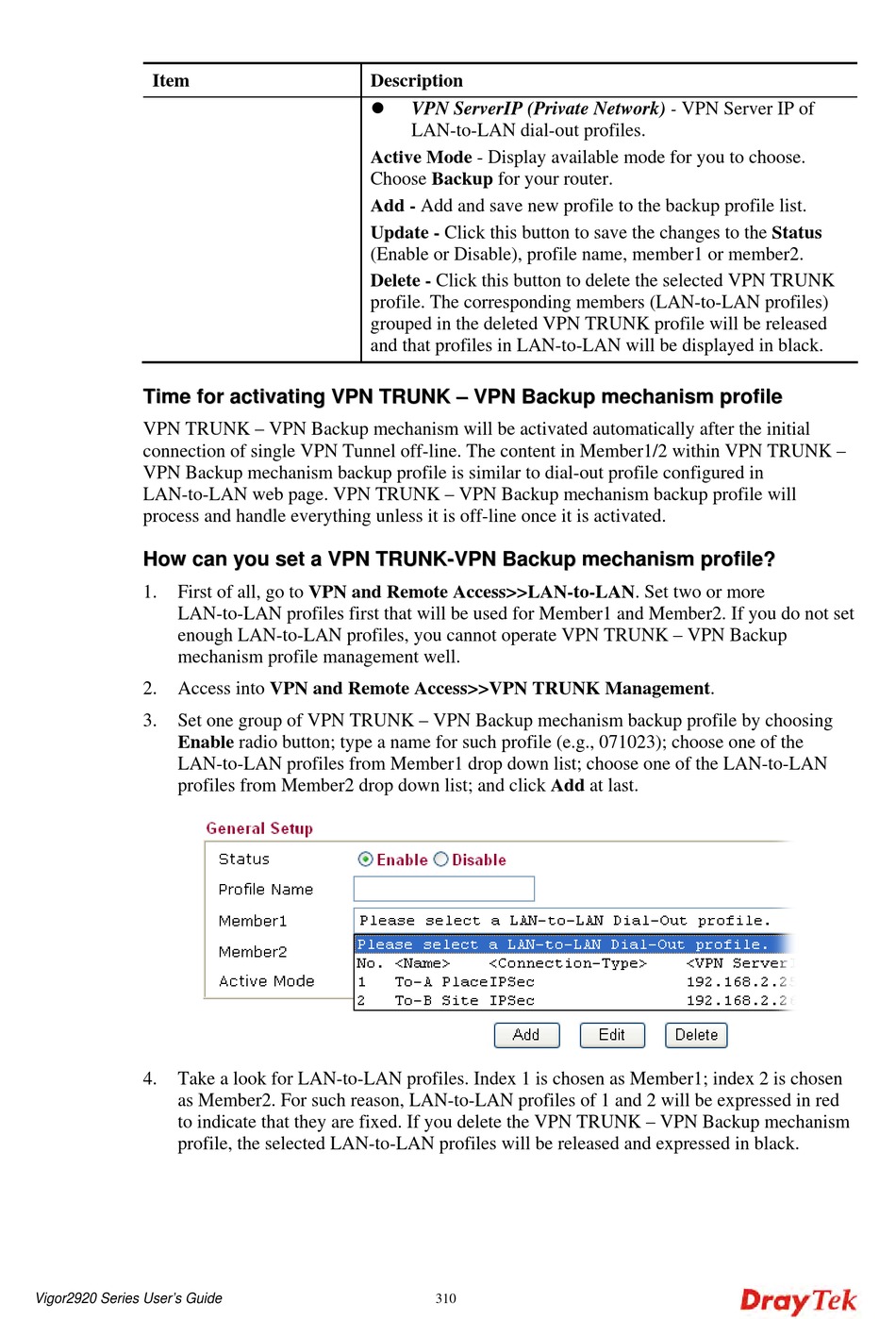

VPN TRUNK – VPN Backup mechanism will be activated automatically after the initial
connection of single VPN Tunnel off-line. The content in Member1/2 within VPN TRUNK –
VPN Backup mechanism backup profile is similar to dial-out profile configured in
LAN-to-LAN web page. VPN TRUNK – VPN Backup mechanism backup profile will
process and handle everything unless it is off-line once it is activated.
H
o
w
c
H
o
w
c
1.
First of all, go to VPN and Remote Access>>LAN-to-LAN. Set two or more
LAN-to-LAN profiles first that will be used for Member1 and Member2. If you do not set
enough LAN-to-LAN profiles, you cannot operate VPN TRUNK – VPN Backup
mechanism profile management well.
2.
Access into VPN and Remote Access>>VPN TRUNK Management.
3.
Set one group of VPN TRUNK – VPN Backup mechanism backup profile by choosing
Enable radio button; type a name for such profile (e.g., 071023); choose one of the
LAN-to-LAN profiles from Member1 drop down list; choose one of the LAN-to-LAN
profiles from Member2 drop down list; and click Add at last.
4.
Take a look for LAN-to-LAN profiles. Index 1 is chosen as Member1; index 2 is chosen
as Member2. For such reason, LAN-to-LAN profiles of 1 and 2 will be expressed in red
to indicate that they are fixed. If you delete the VPN TRUNK – VPN Backup mechanism
profile, the selected LAN-to-LAN profiles will be released and expressed in black.
Vigor2920 Series User's Guide
Description
Active Mode - Display available mode for you to choose.
Choose Backup for your router.
Add - Add and save new profile to the backup profile list.
Update - Click this button to save the changes to the Status
(Enable or Disable), profile name, member1 or member2.
Delete - Click this button to delete the selected VPN TRUNK
profile. The corresponding members (LAN-to-LAN profiles)
grouped in the deleted VPN TRUNK profile will be released
and that profiles in LAN-to-LAN will be displayed in black.
