Status
Local Address
Remote Address
DiffServ CodePoint
Service Type

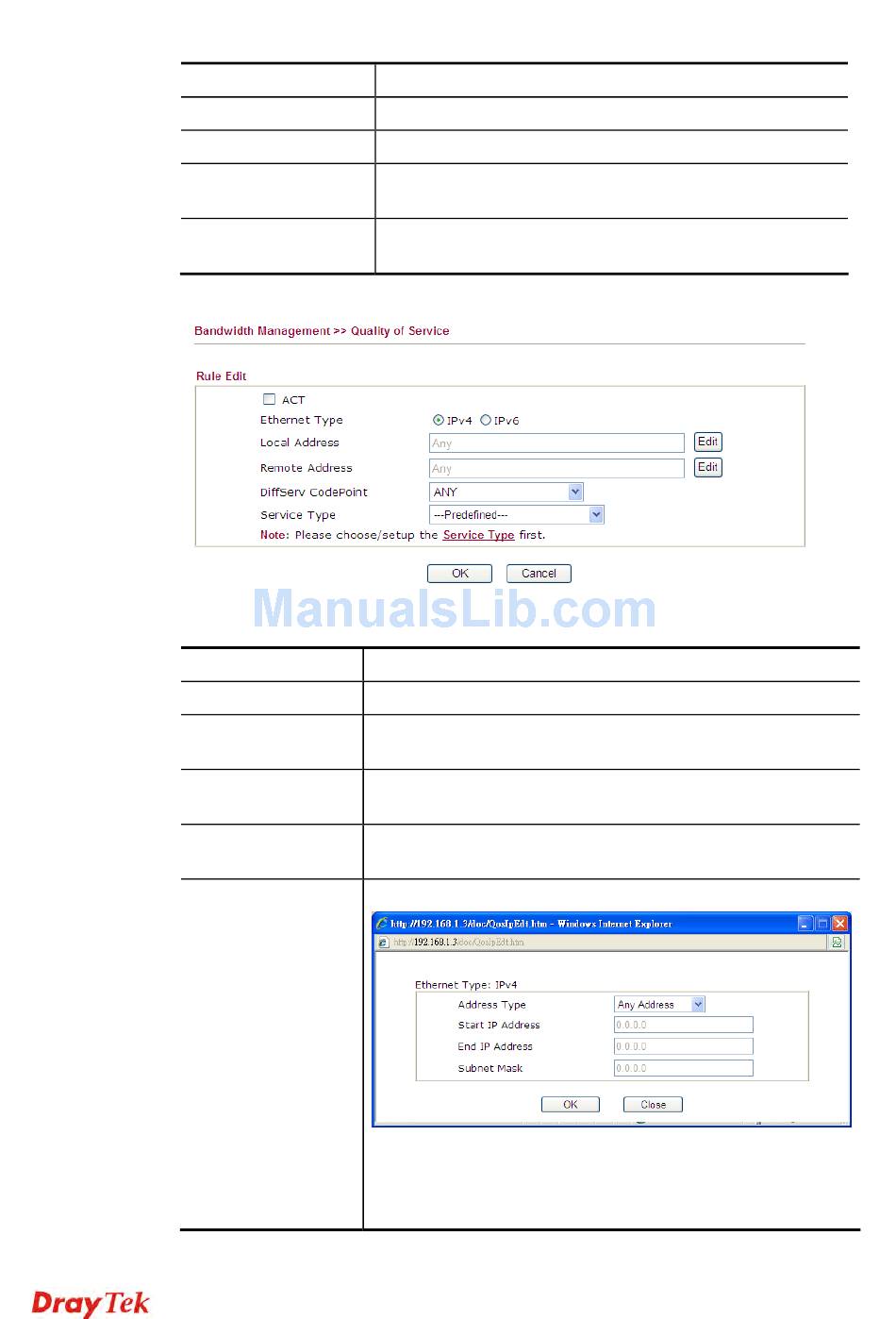

3. For adding a new rule, click Add to open the following page.
Available settings are explained as follows:
Item
ACT
Ethernet Type
Local Address
Remote Address
Edit
Display if such rule is enabled (Active) or not.
Display the local IP address (on LAN) for the rule.
Display the remote IP address (on LAN/WAN) for the rule.
Display the levels of the data for processing with QoS
control.
Display the service type of the data for processing with QoS
control
Description
Check this box to invoke these settings.
Please specify which protocol (IPv4 or IPv6) will be used for
this rule.
Click the Edit button to set the local IP address (on LAN) for
the rule.
Click the Edit button to set the remote IP address (on
LAN/WAN) for the rule.
It allows you to edit source address information.
Address Type – Determine the address type for the source
address.
For Single Address, you have to fill in Start IP address.
For Range Address, you have to fill in Start IP address and
