4 . 2 . 4 V L A N
4 . 2 . 4 V L A N
Virtual LAN function provides you a very convenient way to manage hosts by grouping them
based on the physical port. You can also manage the in/out rate of each port. Go to LAN page

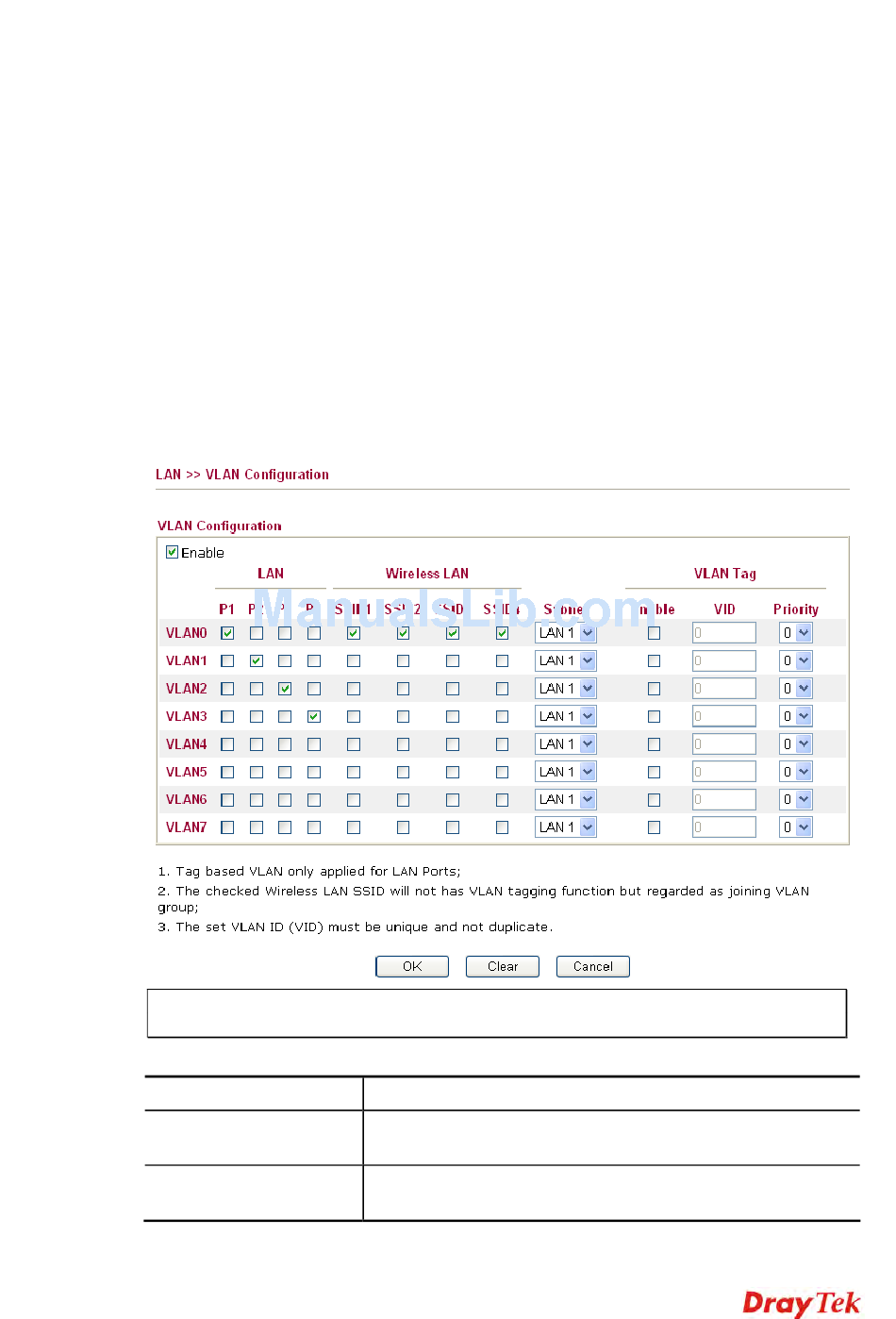

and select VLAN. The following page will appear. Click Enable to invoke VLAN function.
T a g g e
T a g g e
The tagged VLANs (802.1q) can also mark data with a VLAN identifier. This identifier can be
carried through an onward Ethernet switch to specific ports. The specific VLAN clients can
also pick up this identifier as it passes to the LAN. Users can set the priorities for LAN-side
QoS and can assign each of the VLANs to each of the different IP subnets that the router may
also be operating in order to provide even more isolation. This functionality is tag-based
multi-subnet.
P o r t - B
P o r t - B
Relative to tag-based VLAN which groups clients with an identifier, port-based VLAN uses
physical ports to separate the clients into different VLAN group.
Note: Such page will be different slightly in accordance with the type of the router you
have and settings in this page only applied to LAN port but not WAN port.
Available settings are explained as follows:
Item
LAN
Wireless LAN
Vigor2920 Series User's Guide
d V L A N
d V L A N
a s e d V L A N
a s e d V L A N
Description
P1 – P4 – Check the LAN port(s) to be grouped under the
selected VLAN.
SSID1 – SSID4 – Check the SSID box (es) for the wireless
clients to be grouped under the selected VLAN.
164
