Direct vent gas stove

Advertisement

INSTALER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING:
If the information in these
instructions is not followed exactly a fire or
explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapours and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier
from a neighbour's phone. Follow the
gas supplier's instructions.
 If you cannot reach your gas supplier
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an
aftermarket permanently located,
manufacture home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with
other gases unless a certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
300914
G958

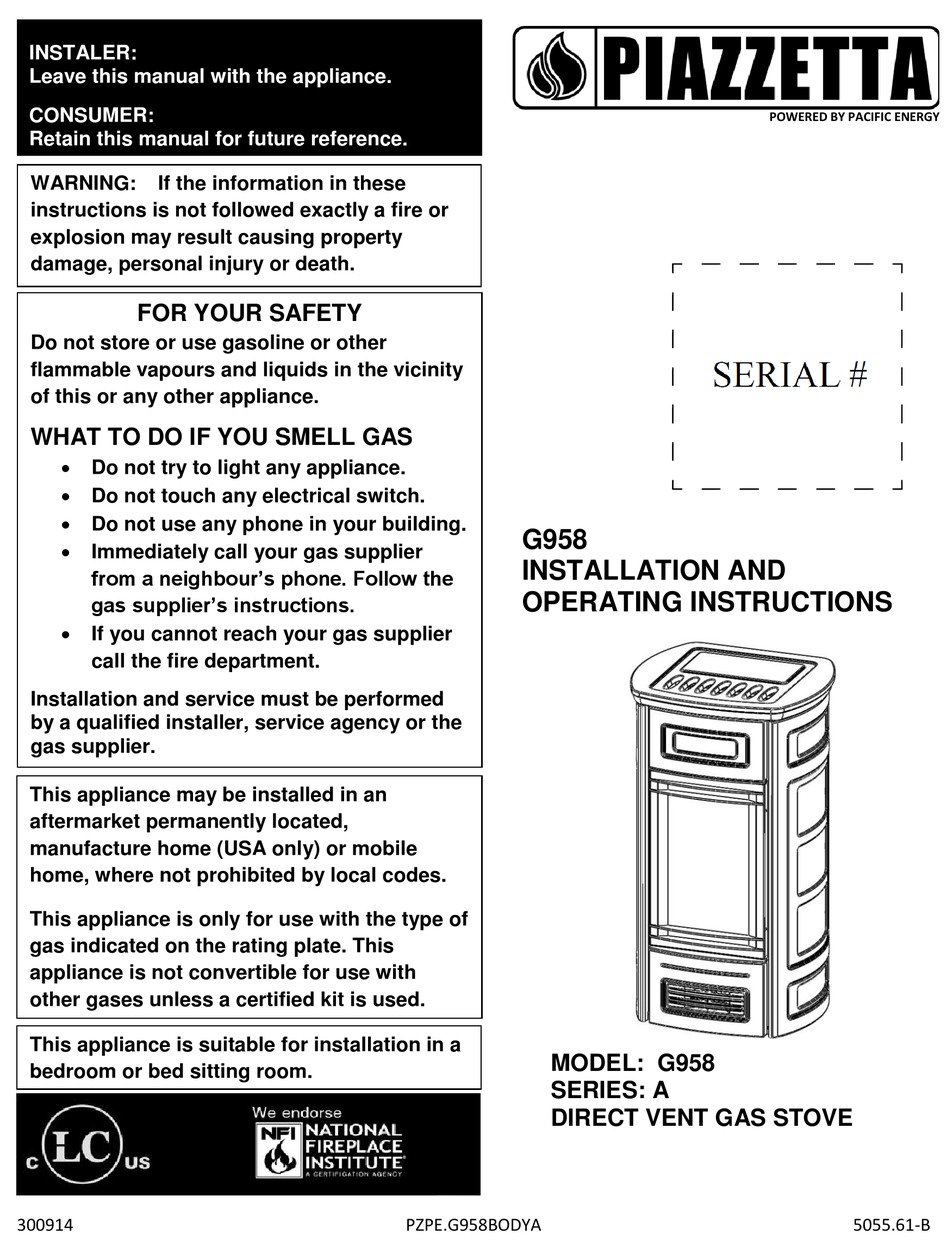

INSTALLATION AND

OPERATING INSTRUCTIONS

MODEL: G958
SERIES: A
DIRECT VENT GAS STOVE
PZPE.G958BODYA
POWERED BY PACIFIC ENERGY
5055.61-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G958 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Piazzetta G958

  • Page 1: Operating Instructions

    This appliance is not convertible for use with other gases unless a certified kit is used. This appliance is suitable for installation in a MODEL: G958 bedroom or bed sitting room. SERIES: A DIRECT VENT GAS STOVE 300914 PZPE.G958BODYA...
  • Page 3: Table Of Contents

    Table of Contents Caution Safety Owners Information First Fire Remote Control Operation Maintenance Lighting Instructions Installer information Fireplace Dimensions Clearances to Combustibles Locating the Fireplace Venting Plumbing and Electrical Gas Supply Gas Pressure Check Gas Pressure Testing Procedure Pilot Adjustment Propane Conversion Door Installation / Removal Fan Installation/ Removal...
  • Page 4: Caution

    Caution FOR YOUR SAFETY - Do not install or operate your Pacific Energy gas fireplace without first reading and understanding this manual. Any installation or operational deviation from the following instructions voids the Pacific Energy Fireplace Products Warranty and may prove hazardous.
  • Page 5: Safety

    Safety  Due to high temperatures, this gas appliance should be located out of traffic and away from furniture and draperies.  Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition. ...
  • Page 6: Owners Information

    OWNER’S INFORMATION Congratulations on your purchase of a Pacific Energy Gas Fireplace. Your fireplace has been professionally installed by: Dealer name: ___________________ Phone Number: _________________ If you discover any problems with your gas fireplace contact your dealer immediately to have the unit repaired.
  • Page 7: Remote Control Operation

    OWNER’S Remote Control Operation INFORMATION System Description The Proflame Remote Control System consists of two elements: 1. Proflame Transmitter. 2. Proflame Integrated Fireplace Control (IFC) board and a wiring harness to connect the IFC to the gas valve and stepper motor. Transmitter (Remote Control with LCD Display) The Proflame Transmitter uses a streamline design with a simple button layout and informative LCD display (Figure 1).
  • Page 8 OWNER’S INFORMATION IFC Module The Proflame 2 Integrated Fireplace Control (IFC) board is a device that allows the automatic ignition and pilot flame supervision, to command the functions of a hearth appliance. It’s configured to control the ON/OFF main burner operation, giving the choice of both IPI (intermittent pilot ignition), and CPI (continuous pilot ignition) modes.
  • Page 9 OWNER’S INFORMATION Temperature indication Display With the system in the “OFF” position, press the thermostat key and the mode key at the same time. Look at the LCD screen on the transmitter to verify that a C or F is visible to the right of the room temperature display. (Figure 3 &...
  • Page 10 OWNER’S INFORMATION Remote Flame Control The Proflame has six (6) flame levels. With the system on, and the flame level at the maximum in the appliance, pressing the down arrow key once will reduce the flame height by one step until the flame is turned off.
  • Page 11 OWNER’S INFORMATION Comfort Fan Speed Control If the appliance is equipped with a hot air circulating fan, the speed of the fan can be controlled by the Proflame System. The fan speed can be adjusted through six (6) speeds. To activate this function use the Mode Key (Figure 1) to index to the fan control icon (Figure 10).
  • Page 12: Warnings And Cautions

    OWNER’S INFORMATION Low Battery Power Detection Transmitter The life span of the remote control batteries depends on various factors: quality of the batteries used, the number of ignitions of the appliance, the number of changes to the room thermostat set point, etc.
  • Page 13: Maintenance

    OWNER’S Maintenance INFORMATION Turn off gas and electrical power supply (if applicable) and allow ample time for unit to cool before servicing appliance. It is recommended that the fireplace and its venting should be inspected at least once a year by a qualified service person. Glass Door: Warning: Do not operate fireplace with glass door removed, cracked or broken.
  • Page 14: Lighting Instructions

    OWNER’S Lighting Instructions INFORMATION...
  • Page 15: Installer Information

    INSTALLER Fireplace Dimensions INFORMATION MIRAGE: Figure 13: Fireplace dimensions...
  • Page 16: Clearances To Combustibles

    INSTALLER Clearances to Combustibles INFORMATION Minimum Clearance to Combustible Materials Mirage INTERIOR SIDE WALL 4” INTERIOR BACK WALL 4 “ INTERIOR CEILING 36” IN FRONT OF APPLIANCE 36” EXTERIOR SIDE WALL 8” VENTING CLEARANCE 1” EXTERIOR SOFFIT 30” *NCR STANDS FOR NO CLEARANCE REQUIRED; YOU MAY USE COMBUSTIBLE CONSTRUCTION MATERIALS IN DIRECT CONTACT WITH THE APPLIANCE ON THESE SURFACES.
  • Page 17: Venting

    INSTALLER Venting INFORMATION Note: The vent must not exceed a total length of 28 feet. Any combination of rise and run may be used but must be constrained to the boundaries of this chart. A Maximum of three (3) 90° elbows may be used.
  • Page 18 INSTALLER INFORMATION Figure 17: Venting This fireplace is certified for use with 4” x 6-5/8”coaxial venting components only. It is permitted to only use certified venting for this appliance. See charts on page 29 for a list of approved venting components.
  • Page 19: Plumbing And Electrical

    INSTALLER Plumbing and Electrical INFORMATION Figure 14: Gas and Electrical Connections Gas connection To make the required electrical and gas connections, start by positioning the gas fireplace. Connect the gas supply line to the 1/2” flare fitting at the rear of the unit as seen in Figure 14.
  • Page 20: Gas Supply

    INSTALLER Gas Supply INFORMATION Servicing of the appliance can be performed from the rear of the unit by removing the access panel from the unit. Caution: The gas line should be installed by a qualified service person in accordance with all building codes.
  • Page 21: Gas Pressure Testing Procedure

    INSTALLER Gas Pressure Testing Procedure INFORMATION Note: To test the gas pressure, turn off the gas supply to the appliance before loosening test point screws. Verify gas pressures with the fireplace lit and at the highest setting. 1. Remove back panel and locate the valve as seen in Figure 15. 2.
  • Page 22: Propane Conversion

    INSTALLER Propane Conversion INFORMATION Before starting the conversion make sure to shut off the gas supply to the unit and allow fireplace to cool to room temperature. To convert the gas fireplace insert from natural gas to propane the (GASC.LPKIT) kit is required. This kit comes with new pilot and burner orifices as well as a new pressure modulator for the valve.
  • Page 23: Door Installation/Removal

    INSTALLER Door Installation/Removal INFORMATION Installation 1. Position the glass retainer’s frame so that the studs on unit align with holes in frame. Secure using 12 11/32” nuts as shown in Figure 20. CAUTION: Over tightening of nuts could result in glass fracturing. 2.
  • Page 24: Panel Installation/Removal

    INSTALLER Panel Installation / Removal INFORMATION Note: The burner tray needs to be removed before installation or removal of panels, see page Installation 1. Insert lower back panel so that it is sitting on the ledge at the back of the firebox as shown in Figure 23.
  • Page 25: Burner Kit Installation/Removal

    INSTALLER Burner Kit Installation / Removal INFORMATION Burner Tray Installation / Removal Installation Place the burner tray in the firebox so that the venturi is over top of the orifice. To secure the burner tray, insert the 4 screws using a screwdriver, as seen in Figure 27.
  • Page 26: Cladding Installation/Removal

    INSTALLER Cladding Installation / Removal INFORMATION Installation 1. Slide back the top cladding piece into the top of the fireplace as seen in Figure 30. Fasten using screws on front of fireplace as shown in Figure 31. 2. Place metal grill onto lower front cladding as seen in Figure 32.
  • Page 27: Venturi Adjustment

    INSTALLER INFORMATION Figure 35: Side Cladding Stand Figure 34: Front Cladding Securement Figure 36: Side Cladding Figure 37: Side Cladding Securement Venturi Adjustment To adjust the venturi the lower front piece of cladding needs to be removed, please refer to appropriate section of manual for removal instructions.
  • Page 28: Replacement Parts

    9. Replacement Door Screen GMIR.5002.50 10. Replacement Aluker Panel Set GMIR.5099.G958 Aesthetic Components Description Order Number Exterior Ceramic Panels by Piazzetta Mirage Surround Classic Bordeaux PZSY.P958CBX Mirage Surround Classic Oriental Sand PZSY.P958COS Mirage Surround Classic Off White PZSY.P958CWH Mirage Surround Modern Stone PZSY.P958MST...
  • Page 29: Venting Components

    INSTALLER Venting Components INFORMATION NOTE: Mixing venting components from different manufacturers is inadvisable. Figure 39: 4”x6-5/8" Rigid Piping Cross Reference Chart Figure 40: 4”x6-5/8" Rigid Pipe Components Cross Reference Chart...
  • Page 30: Wiring Diagram

    INSTALLER Wiring Diagram INFORMATION Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.
  • Page 31: Installation Notes

    INSTALLER Installation Notes INFORMATION...
  • Page 32 Technical support: 1-250-748-1184 Web site: www. pacificenergy.net 2975 Allenby Rd., Duncan, BC V9l 6V8...
