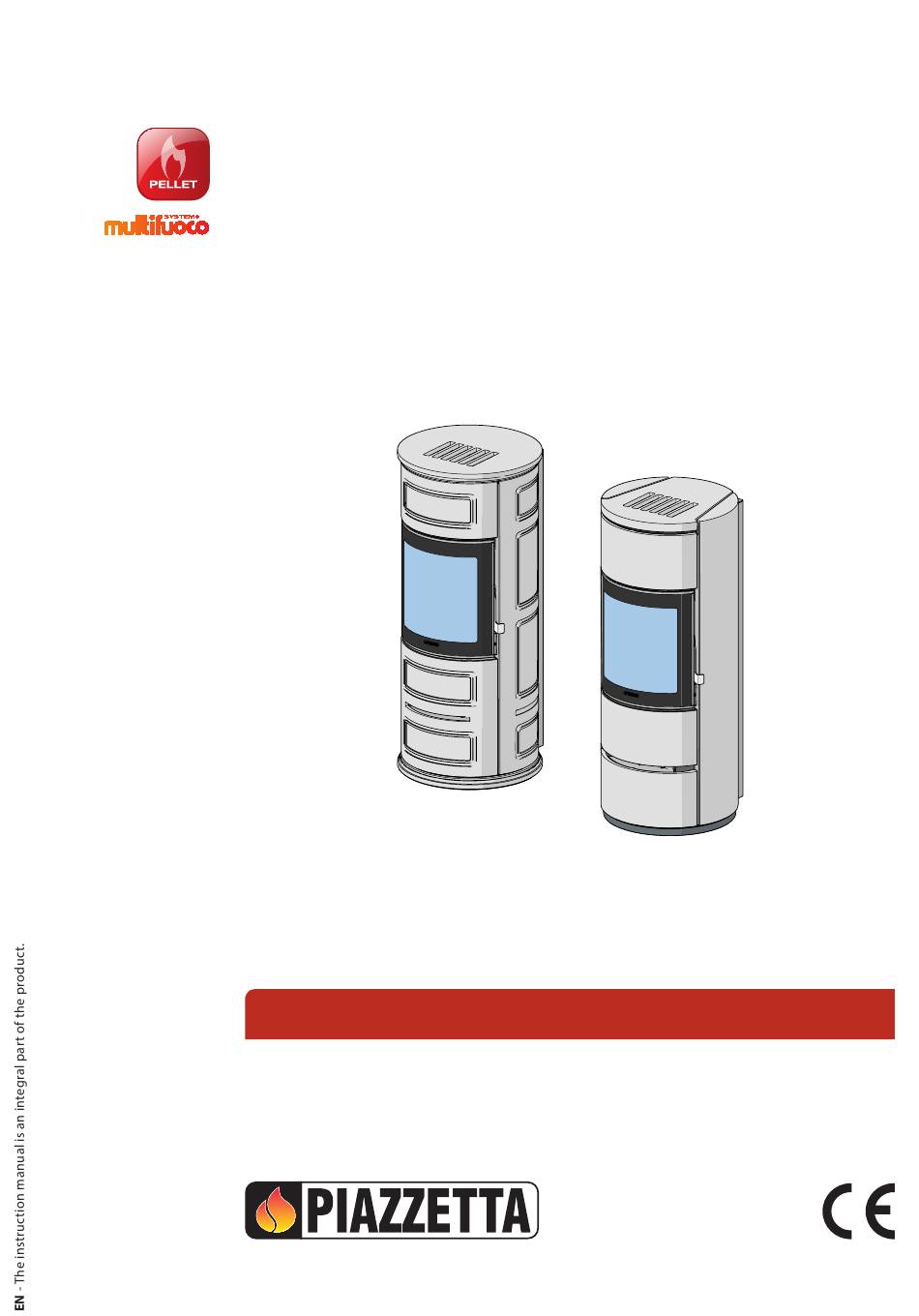

- Page 1 Pellet Stove P943 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE The instruction manual is an integral part of the product...
-
Page 2: Table Of Contents
The images shown in this manual are for explanatory purposes and at times may not accurately depict the product. This document is the property of Gruppo Piazzetta S.p.A. and no part of it may be reproduced or disclosed to third parties, whol- ly or in part, without written permission All rights reserved by Gruppo Piazzetta S.p.A.. -
Page 3: General Information
Do not stand or place objects which are not heat-resist- thorized T.A.C. (authorized technical assistance centre). ant within the prescribed minimum safety distance. - Gruppo Piazzetta S.p.A.cannot be held liable for situations of Do not install the product near walls or objects in ■ ■... -
Page 4: Product Information
- suitability of the room where the appliance is to be installed as well as any restrictions Piazzetta products, always at the forefront and in line with the - the existence of any other appliances most stringent requirements in terms of thermal power and envi-... -
Page 5: Part Identification
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PART IDENTIFICATION Pellet hopper cover 17 Combustion chamber Left panel 18 Right panel Top surface 19 Inspection plug Humidifier 20 Pellet hopper 21 Pellet sensor Smoke deflector 22 Environment fan/s Upper smoke chamber 23 Electronic control unit Door 24 Smoke intake/Extractor fan Ceramic glass... -
Page 6: Safety Devices
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Firebox door opening sensor: SAFETY DEVICES if the firebox door is opened during operation, an acoustic alarm signal is activated. The electronic control unit isolates the supply The appliance is equipped with the following safety and check voltage to the auger, thus stopping pellet feed to the grate and devices which stop the stove from operating if any faults occur. -
Page 7: Product Identification Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT IDENTIFICATION DATA CHARACTERISTICS Cladding: Each product is identified in the following way: - IDENTIFICATION DATA PLATE (1) with the model (A) and ap- - tiles Structure: pliance performance specifications - SERIAL NUMBER PLATE (2) with the serial number of the ap- - in steel Firebox: pliance (B) -
Page 8: Technical Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE TECHNICAL DATA Model P943 P943 Product type SP230-01 SP230-03 Unit of meas- at nominal at reduced at nominal at reduced Description urement heat output heat output heat output heat output Fuel natural pure wood pellets... -
Page 9: Sizes
(values in cm) SIZES P943 Fig. 5 8 cm 7.5 cm 6 cm A Smoke outlet Ducting outlet Combustive air duct P943 M Fig. 6 8 cm 7.5 cm 6 cm A Smoke outlet Ducting outlet Combustive air duct DT2002575_H072127UK0_03... -
Page 10: Fuel
Under no circumstances use fuel other than pellets. tance centre) or by specially qualified personnel au- thorised by Gruppo Piazzetta S.p.A.. There are various types of pellet on the market with qualities and Using pellets that are out of date or not in conformity ■... -
Page 11: General Information Regarding The System
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE GENERAL INFORMATION The installation room must not be used to store flam- REGARDING THE SYSTEM mable material. Below is some general information regarding the system, appli- Further limitations for NON airtight installations and installa- ance installation and products manufactured by Gruppo Piazzet- tions which do not have combustion air intake from outside ta S.p.A. -
Page 12: Chimney
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE The airflow needed for the firebox can be obtained in different - must be attached to one individual appliance, whether that ways, for example: be a stove, a wood-burning stove or an extraction hood unless otherwise specified in the section "... -
Page 13: Chimney Terminal
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE The connection for the combustion product outlet must comply with local regulations. In other European countries combustion products ■ ■ must be discharged through the roof and it is forbid- den to discharge combustion products directly on the wall or towards closed spaces even if in the open air. - Page 14 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Additional requirements for the flue pipe To ensure correct product operation, where not specified under items " TECHNICAL DATA " and " CONNECTION TO THE SMOKE OUTLET ", the connection to the flue pipe must have the follow- ing characteristics: length of the flue pipe (a) maximum 7.5 m...
-
Page 15: Preparation For Installing
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PREPARATION FOR INSTALLING HANDLING In order to prevent any accidents or damage to the product, please follow the recommendations below. - Unpacking and installation must be carried out by at least two people - the product must always be moved and handled with suitable equipment in full compliance with current safety regulations - the packaged product must be kept in the position according Fig. -
Page 16: Installation
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Positioning the smoke deflector INSTALLATION After having completed the appliance positioning operations and before starting it: - remove the fastening screws (1) of the upper smoke chamber cover (2) MINIMUM SAFETY DISTANCES The position of the product inside the room must take into ac- count not only the regulations, heating requirements, the shape of the installation and adjoining rooms but also accessibility dur- ing installation, use and maintenance operations. -
Page 17: Installation Kit And Accessories
“Multifuoco System” is a system for channelling hot ventilated air into a designated room. In this EXCLUSIVE system PATENTED by Gruppo Piazzetta S.p.A., heat produced by the firebox is distributed from bottom-up with- in the room by means of one or more than one fan. - Page 18 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Knockout opening Hot air outlet only ducted from standard opening Proceed as follows: - remove the knockout (1) using a 6mm bit to drill through the prearranged holes (2): make sure that the product is not scratched or misshapen in the process Fig.
- Page 19 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE First deviation connected directly to the fan outlet For this appliance, in order to carry out diversions directly to the fan outlet, a section of flexible pipe (F) must be placed before con- necting the Y element. Fig.
-
Page 20: Combustion Air Connection
Please refer to and carefully read the section "Fresh air intake". Additional requirements for the flue pipe Gruppo Piazzetta S.p.A. supplies pipes and bends for the flue pipe, all of which are approved and specifically sized for the smoke out- For the installation of any KITs and ACCESSORIES, let of its products. -
Page 21: Electrical Connections
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.6.3 External environment thermostat ELECTRICAL CONNECTIONS The appliance allows for connection to an external thermostat (not supplied as standard). This allows operation to be deter- mined on the basis of the room temperature detected by the thermostat. -
Page 22: Start-Up And Operating Test
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE START-UP AND OPERATING TEST Do not fill the humidifier beyond the level marked "MAX". If any water were to leak out, it could damage A start-up and operational test must be carried out by a special- the appliance. -
Page 23: Scheduled Maintenance
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE The following interventions are included in maintenance: - checking the components for wear and ensuring they are inte- At the end of maintenance operations: gral and operate correctly restore and replace all worn or damaged parts with ■... -
Page 24: Cleaning The Painted Metal Parts
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Do not soak the ceramic cladding or clean it with cold Recommended cleaning frequency: refer to the section water when it is still hot as the thermal shock could " SCHEDULED MAINTENANCE ". cause it to crack. The glass should be cleaned when cold using ammo- nia-based non-corrosive degreasing agents (for exam- 10.3 CLEANING THE PAINTED METAL PARTS... -
Page 25: Cleaning The Combustion Chamber
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Proceed as follows: - remove the Aluker back panel (3) lifting it slightly and removing - remove the grate deflector(1) it from the bottom - release the grate (2) from its housing - remove all ash and any deposits which may have formed, mak- ing sure that any clogged holes are cleared using an appropri- ate tool - free the clogged holes on the top section (5) of the grate... -
Page 26: Cleaning The Extractor Fan
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - using a vacuum cleaner which is suitable for use with ash, re- move all the residue deposited in the smoke chamber - if necessary, remove the smoke deflector (6), clean it and repo- sition it in its seat Fig. -
Page 27: Cleaning The Room Fan
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Recommended cleaning frequency: refer to the section " SCHEDULED MAINTENANCE ". The fan must be cleaned with the fire out, the appliance completely cold and with the power cable disconnect- The extractor fan is only to be cleaned by a T.A.C. (Tech- ■... -
Page 28: Replacing The Fuses
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE To remove al pellets, proceed as follows: 10.14 REPLACING THE FUSES - remove the pellets which are in the hopper, as far as the protec- tion grille, when the fire is out and the appliance is completely FUSE ON THE IEC POWER SOCKET cold Extract the fuse box drawer (1) in the power socket and replace... -
Page 29: Reference Standards
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 12 REFERENCE STANDARDS Country of application: The European Union EN 14785 Residential space heating appliances fired by wood pellets - Requirements and test methods EN 60335-1 Household and similar electrical appliances. Safety - Part 1: General requirements EN 60335-2-102 Household and similar electrical appliances. - Page 30 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE DT2002575_H072127UK0_03...
- Page 31 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE DT2002575_H072127UK0_03...
- Page 32 Via Montello, 22 31011 Casella d’Asolo (TV) - ITALY Tel. +39.04235271 - Fax +39.042355178 www.piazzetta.it e-mail:infopiazzetta@piazzetta.it...
