Summary of Contents for Piazzetta P220 C

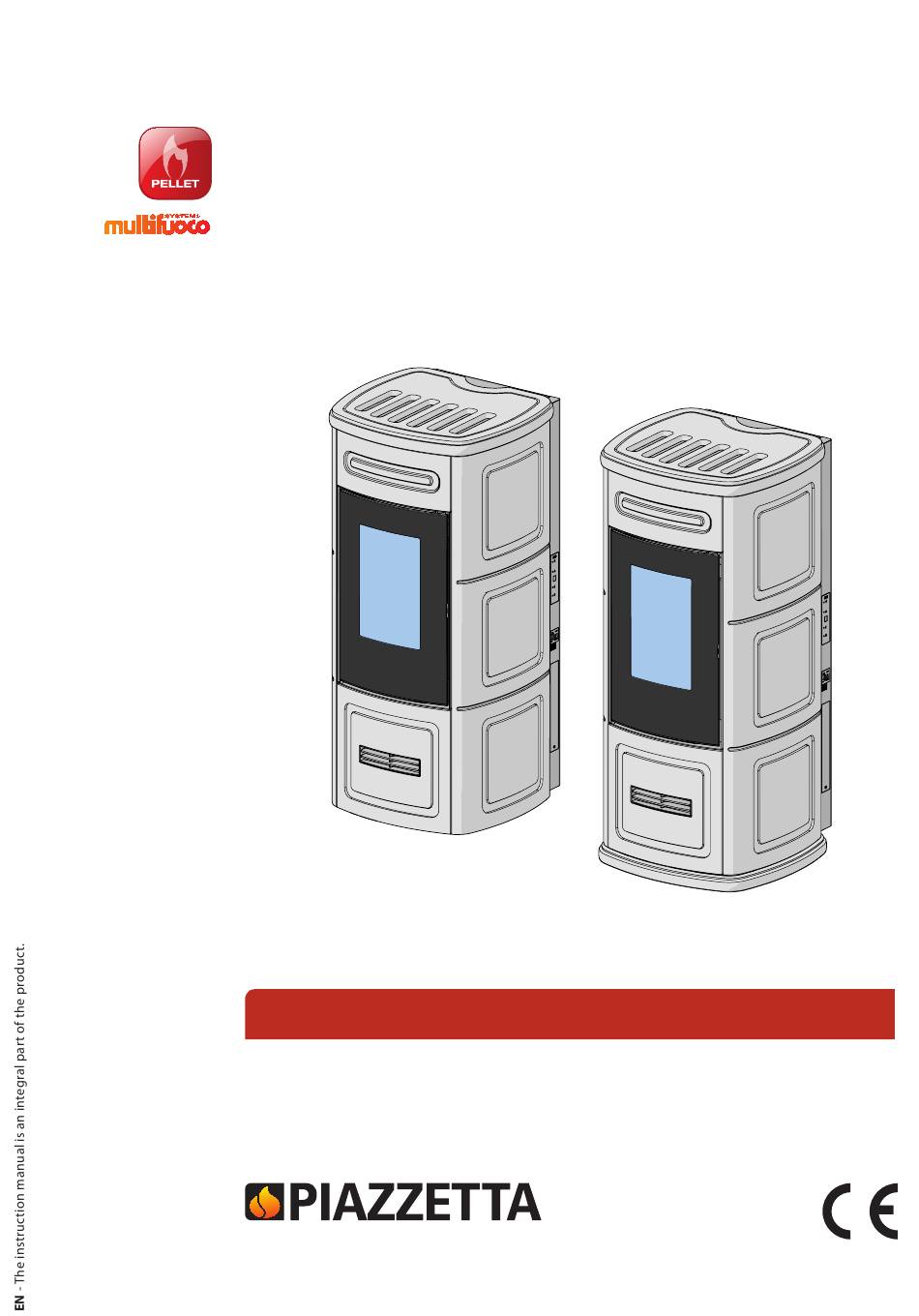

- Page 1 The instruction manual is an integral part of the product Pellet stoves P220 C P220 C W/B PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE...
- Page 2 TRONIC FORMAT on our company website (www.piazzetta.com), under “Products”, on the specific product characteristics page. This document is the property of Gruppo Piazzetta S.p.A. and no part of it may be reproduced or disclosed to third parties, whol- ly or in part, without written permission All rights reserved by Gruppo Piazzetta S.p.A..
-
Page 3: Table Of Contents
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE CONTENTS GENERAL INFORMATION PRODUCT INFORMATION Product description Part identification Safety devices Check devices Product identification data Characteristics Accessories upon request Technical data Sizes FUEL Pellet specifications Information regarding pellet loading GENERAL INFORMATION REGARDING THE SYSTEM Installation room Fresh air intake Chimney... -
Page 4: General Information
(authorized technical assistance centre). in the sections " FAULTS " or " MESSAGES - - Gruppo Piazzetta S.p.A. cannot be held liable for situations of SAFETY WARNINGS - ANOMALIES ". risk, defects, damage, product malfunctioning or for damage... - Page 5 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Product use may cause some surfaces to During the operation and/or cooling phase, become extremely hot (the glass, the exter- slight creaking noises may be heard. This nal surfaces, the handles, the smoke outlet is not considered a defect, but is a conse- passage).
-
Page 6: Product Information
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT INFORMATION Do not use the appliance as an incinerator or in any way other than that for which it was designed. PRODUCT DESCRIPTION Do not use the appliance if the glass or seals ■ on the door are damaged. -
Page 7: Part Identification
12 WiFi equipment for remote control 13 Grate deflector 14 Appliance control panel 15 Pellet delivery hole 16 Combustion chamber 17 Cladding (example for P220 C model) 18 Pellet hopper 19 Pellet sensor 20 Pressure switch 21 Safety thermostat 22 Electronic control unit Fig. -
Page 8: Safety Devices
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Electronic control unit: SAFETY DEVICES the electronic control unit signals and controls a series of events including power and ignition failure. The appliance is equipped with the following safety and check devices which stop the stove from operating if any faults occur. Pellet hopper cover open sensor: If any safety warnings or alarms are activated, please consult the if the cover of the pellet hopper is left open for a time exceeding... -
Page 9: Product Identification Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT IDENTIFICATION DATA CHARACTERISTICS Each product is identified in the following way: Structure: - IDENTIFICATION DATA PLATE (1) with the model (A) and ap- - in steel pliance performance specifications Cladding: - SERIAL NUMBER PLATE (2) with the serial number of the ap- - majolica pliance (B) Firebox:... -
Page 10: Technical Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE TECHNICAL DATA Model P220 C, P220 C W/B Type SP400-02 Unit of meas- at nominal at part load Description urement heat output heat output Fuel natural pure wood pellets Heat Output Hourly fuel consumption kg/h... -
Page 11: Sizes
10,9 114,3 51,2 41,1 52,6 8 cm 7,5 cm 6 cm A Smoke outlet Ducting outlet Combustion air duct P220 C W/B Fig. 6 10,9 53,9 43,8 11,8 52,6 8 cm 7,5 cm 6 cm A Smoke outlet Ducting outlet... -
Page 12: Fuel
Only keep the cover of the pellet hopper open for as ■ thorised by Gruppo Piazzetta S.p.A.. long as it takes to complete the refill operation. To en- Using pellets that are out of date or not in conformity ■... -
Page 13: General Information Regarding The System
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE GENERAL INFORMATION Do not install type A and B gas appliances in rooms REGARDING THE SYSTEM where there are also heat generators powered by wood (or solid fuels in general) or in adjoining rooms (in line Below is some general information regarding the system, appli- with UNI standards). -
Page 14: Fresh Air Intake
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE The connecting pipe for the combustion air inlet of the appliance must comply with the following requirements: The existence of more than one appliance is only per- - have a diameter equal to or greater than the diameter of the mitted if allowed by the regulations and manufacturer inlet on the appliance of each individual appliance. -
Page 15: Chimney Terminal
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - must be constructed in such a way as to ensure that in the event of winds from all directions and angle, discharge of the combustion products is assured (chimney terminal with anti downdraught cowl) - must be positioned outside the reflux area - must be positioned taking into account the roof inclination and respect the distances in relation to buildings, plants, aerials or... - Page 16 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE In particular, remember that the connecting flue pipe: Some systems – particularly those with appliances equipped with - must be in compliance with regulations, equipped with CE a boiler – may cause condensation to form, even if you abide by marking and be made respecting all safety requirements the indications provided.
- Page 17 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Fig. 11 Fig. 12 DT2004857_H072475EN0_02...
-
Page 18: Preparations For Installation
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PREPARATIONS FOR INSTALLATION Product installation and maintenance must be carried out exclusively by qualified personnel with sufficient knowledge of the product itself. This work must also be carried out using suitable equip- ■ ment and in full compliance with all health and safety regulations. -
Page 19: Installation
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE INSTALLATION Keep any combustible or heat-sensitive products such as wooden furniture, curtains, carpets, fabric, clothing, ornaments and flammable liquids well away from the For all installation and maintenance interventions product while it is in operation (where not indicated, which require access to inside the cladding, the smoke minimum of 100 cm). -
Page 20: Installation Kit And Accessories
“Multifuoco System” is a system for channelling hot ventilated air into a designated room. In this EXCLUSIVE system PATENTED by Gruppo Piazzetta S.p.A., Insulation, the ducting path and the position of the air heat produced by the firebox is distributed from bottom-up with- vents affect the optimal heating of the environment. - Page 21 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.3.3 Examples of ducting Below are some examples of hot air ducting. In order to create some solutions, the installer needs not only the flexible duct of a suitable diameter but also air vents and Y-ele- ments and/or connectors, neither of which are provided but may be purchased separately.
- Page 22 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Hot air outlet only ducted in one direction 6.3.4 Connection between flexible pipes If hot air ducting is carried out without connection to the stand- To facilitate installation and maintenance operations, when the ard opening, a maximum length of 1 m from the outside of the flexible pipe passes through the holes to the outside of the ap- product is permitted.
-
Page 23: Combustion Air Connection
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.3.6 Hot air outlet heating area Securing the appliance Proceed as follows: An area in which combustible or heat-sensitive objects (wooden - unscrew the nuts (A) furniture, curtains, carpets, fabric, clothing, ornaments, flamma- - insert the gasket (1) and the combustion air fitting (2) supplied, ble liquids, etc.) are forbidden is to be provided around the hot into the pins (B) air outlet (1). -
Page 24: Electrical Connections
ELECTRICAL CONNECTIONS Fig. 30 Additional requirements for the connecting flue pipe Gruppo Piazzetta S.p.A. supplies pipes and bends for the connect- ing flue pipe, all of which are approved and specifically sized for the smoke outlet of its products. Pipes approved by other manufacturers may also be applied as... - Page 25 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.6.2 Room temperature probe Connect the room temperature probe which is provided to the designated connector (1) on the appliance. The bulb of the probe must be in position as shown in the figure. If the probe is not connected, an acoustic signal is giv- en (refer to the manual "...
-
Page 26: Start-Up And Operating Test
Fig. 35 DT2035272-1 For information regarding operation, please refer to Only connect devices approved by Gruppo Piazzetta the manual " OPERATING INSTRUCTIONS ". S.p.A.. For more information on installation and opera- tion, please contact a T.A.C. (Technical Assistance Cen- tre) or qualified technician. -
Page 27: Cleaning And Maintenance
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10 CLEANING AND MAINTENANCE The time intervals are merely an indication: these inter- vals may need to be shorter depending on the frequen- cy of use and the type of fuel used. For all installation and maintenance interventions which require access to inside the cladding, the smoke chamber or access to electrical and electronic parts, the After installation, cleaning and maintenance work:... -
Page 28: Cleaning The Ceramic Cladding
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.2 CLEANING THE CERAMIC CLADDING The ceramic cladding (where present) must be cleaned with a soft, dry cloth. If more strenuous interventions are required, use products which are suitable for cleaning ceramics as well as con- centrated products for cleaning porcelain to remove oil, ink, cof- fee and wine stains etc. -
Page 29: Cleaning The Grate And Grate Support
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.7 CLEANING THE GRATE AND GRATE 10.8 CLEANING THE COMBUSTION CHAMBER SUPPORT The grate area must be cleaned. Recommended cleaning frequency: refer to the section " SCHEDULED MAINTENANCE ". Recommended cleaning frequency: refer to the section Proceed as follows: "SCHEDULED MAINTENANCE". -
Page 30: Cleaning The Smoke Chamber
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - clean the slots (5) with the supplied designated ramrod (6) Fig. 44 Fig. 43 - clean the hole for the vacuum detection (3) inside the smoke chamber as indicated in the figure: for the appliance to operate - clean the parts which have been removed and then refit them correctly, the hole must always be free of dust and ash in the reverse order in which they were removed... -
Page 31: Cleaning The Room Fan
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.12 CLEANING THE SMOKE OUTLET The appliance must be cleaned with the fire out, the The frequency with which the smoke outlet is to be cleaned de- appliance completely cold and with the power cable pends on the how much the appliance gathers dirt. -
Page 32: When Not In Use
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE To remove all pellets, proceed as follows: - remove the pellets which are in the hopper, as far as the protec- tion grille, when the fire is out and the appliance is completely cold - switch on the appliance, allow it to operate until all the pellets have been depleted and the appliance switches off - wait for the appliance to cool down completely. -
Page 33: Electrical And Electronic Waste
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 12.1 ELECTRICAL AND ELECTRONIC WASTE When the symbol is shown on the appliance, accessories, packaging or documentation, this indicates that the appliance, accessories, batteries/accumulators and any related elec- trical/electronic parts MUST NOT be disposed of as normal household waste. Instead, they must be taken to a suitable recycling centre for electrical and electronic appliances. -
Page 34: Reference Standards
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 13 REFERENCE STANDARDS Country of application: The European Union EN 14785 Residential space heating appliances fired by wood pellets - Requirements and test methods EN 60335-1 Household and similar electrical appliances. Safety - Part 1: General requirements EN 60335-2-102 Household and similar electrical appliances. -
Page 35: Appendix
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 14 APPENDIX Identification data plate: key Please read and comply with the instructions for installation, use and maintenance. Model = Model Type = Type DoP = Declaration of performance N.Body = Notified laboratory Pn = Nominal heat output Pp = Part load heat output Pnom = Nominal space heat output Ppart = Part load space heat output... - Page 36 Via Montello, 22 31011 Asolo (TV) - ITALY Tel. +39.04235271 - Fax +39.042355178 www.piazzetta.com e-mail:infopiazzetta@piazzetta.it...
