Summary of Contents for Piazzetta P158

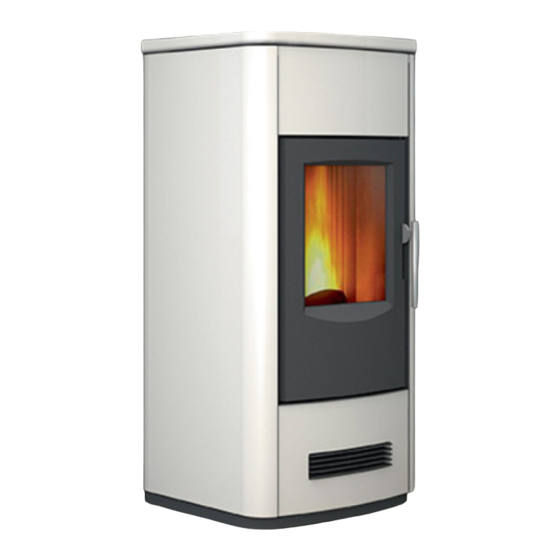

- Page 1 The instruction manual is an integral part of the product Pellet Stove P158 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE...
- Page 2 TRONIC FORMAT on our company website (www.piazzetta.it), under “Products”, on the specific product characteristics page. This document is the property of Gruppo Piazzetta S.r.l. and no part of it may be reproduced or disclosed to third parties, wholly or in part, without written permission All rights reserved by Gruppo Piazzetta S.r.l..
-
Page 3: Table Of Contents
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE CONTENTS GENERAL INFORMATION PRODUCT INFORMATION Product description Part identification Safety devices Check devices Product identification data Characteristics Accessories upon request Technical data Sizes FUEL Pellet specifications Information regarding pellet loading GENERAL INFORMATION REGARDING THE SYSTEM Installation room Fresh air intake Chimney... -
Page 4: General Information
T.A.C. (authorized technical assistance centre). - Gruppo Piazzetta S.r.l. cannot be held liable for situations of In the event of fire in the flue, stop using the risk, defects, damage, product malfunctioning or for damage... - Page 5 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Product use may cause some surfaces to be- It is forbidden any unauthorized modification come extremely hot (the glass, the external of the appliance. surfaces, the handles, the smoke outlet pas- sage). Any contact between clothing or body parts and these surfaces, including where ac- Do not stand or place objects which are not cidental, may cause burns or fires.
-
Page 6: Product Information
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Before carrying out any assembly, installation or ignition proce- PRODUCT INFORMATION dures, the enabled installer must check that the system has been manufactured in compliance with the applicable instructions provided by the manufacturer and in compliance with all relevant regulations. -
Page 7: Part Identification
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PART IDENTIFICATION Pellet hopper cover 16 Combustion chamber Pellet hopper grille 17 Electrical power cable Door 18 Smoke outlet Ceramic glass 19 Auger motor Door handle 20 Pellet indicator Ash drawer 21 Pellet hopper Smoke chamber 22 Metal structure Smoke intake/Extractor fan 23 Appliance control panel... -
Page 8: Safety Devices
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Electronic control unit: SAFETY DEVICES the electronic control unit signals and controls a series of events including power and ignition failure. The appliance is equipped with the following safety and check devices which stop the stove from operating if any faults occur. Electrical safety: If any safety warnings or alarms are activated, please consult the the appliance is protected by fuses in the event of a power surge. -
Page 9: Product Identification Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT IDENTIFICATION DATA CHARACTERISTICS Each product is identified in the following way: Cladding: - IDENTIFICATION DATA PLATE (1) with the model (A) and ap- - in painted steel pliance performance specifications - majolica - SERIAL NUMBER PLATE (2) with the serial number of the ap- Structure: pliance (B) - in steel... -
Page 10: Technical Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE TECHNICAL DATA Model P158 Product type Unit of meas- at nominal at reduced Description urement heat output heat output Fuel natural pure wood pellets Heat Output 8,61 2,75 Hourly fuel consumption kg/h 1,960 0,632 Efficiency... -
Page 11: Sizes
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE (values in cm) SIZES P158 Fig. 6 45,5 19,5 19,5 8 cm 7.5 cm 6 cm A Smoke outlet Combustive air duct Ducting outlet standard position DT2003282_H072229EN0_02... -
Page 12: Fuel
Gruppo Piazzetta S.r.l.. compliance with the requirements of class A1 (EN 17225-2). Using pellets that are out of date or not in conformity ■... - Page 13 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 3.2.1 Pellet indicator When the red reload indicator can be seen inside the hopper, it is possible that the auger is not perfectly loaded which would cause irregular pellet unloading in the grate and start-up failure. Fig.
-
Page 14: General Information Regarding The System
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE GENERAL INFORMATION Do not install type A and B gas appliances in rooms REGARDING THE SYSTEM where there are also heat generators powered by wood (or solid fuels in general) or in adjoining rooms (in line Below is some general information regarding the system, appli- with UNI standards). -
Page 15: Fresh Air Intake
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE In brief: FRESH AIR INTAKE - the chimney must be comply with the regulations, bear the CE marking and be made respecting all safety requirements In order to operate normally, each appliance must be provided - the chimney must be suitable for the specific operating condi- with the air needed for combustion. -
Page 16: Chimney Terminal
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE If the chimney does not meet the requirements, consult with spe- cialised personnel regarding adjustment of the current chimney, for example, by providing adequate piping. The connection for the combustion product outlet must comply with local regulations. In Italy and other European countries combustion ■... - Page 17 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Additional requirements for the flue pipe To ensure correct product operation, where not specified under items " TECHNICAL DATA " and " CONNECTION TO THE SMOKE OUTLET ", the connection to the flue pipe must have the follow- ing characteristics: maximum length of the flue pipe (a)
-
Page 18: Preparation For Installing
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PREPARATION FOR INSTALLING HANDLING In order to prevent any accidents or damage to the product, please follow the recommendations below. - Unpacking and installation must be carried out by at least two people - the product must always be moved and handled with suitable equipment in full compliance with current safety regulations - the packaged product must be kept in the position according to the directions shown by the diagrams and signs on the pack... -
Page 19: Installation Kit And Accessories
“Multifuoco System” is a system for channelling hot ventilated air into a designated room. In this EXCLUSIVE system PATENTED by Gruppo Piazzetta S.r.l., heat produced by the firebox is distributed from bottom-up with- in the room by means of one or more than one fan. - Page 20 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.3.1 Hot air outlet provision The appliance is supplied as standard with the hot air outlet through the opening (A). Fig. 18 6.3.3 Examples of ducting Fig. 17 Below are some examples of hot air ducting. In order to create some of the solutions proposed, the installer needs not only the flexible duct of a suitable diameter but also vents for the air outlets and the Y elements, neither of which are...
- Page 21 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Hot air outlet only ducted from standard opening Hot air outlet ducted into more than one room Fig. 19 Fig. 22 Hot air outlet only ducted in one direction If hot air ducting is carried out without connection to the stand- First deviation connected directly to the fan outlet ard opening, a maximum length of 1 m from the outside of the For this appliance, in order to carry out diversions directly to the...
-
Page 22: Combustion Air Connection
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE COMBUSTION AIR CONNECTION The figures below show some examples of the position- ing of the hot air vents on walls or on the floor. Please refer to and carefully read the section " FRESH AIR INTAKE ". For the installation of any KITs and ACCESSORIES, please refer to the instructions provided with the kits or accessories. -
Page 23: Electrical Connections
ELECTRICAL CONNECTIONS Fig. 27 Additional requirements for the flue pipe Gruppo Piazzetta S.r.l. supplies pipes and bends for the flue pipe, all of which are approved and specifically sized for the smoke out- let of its products. Pipes approved by other manufacturers may also be applied as... -
Page 24: Start-Up And Operating Test
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.6.2 Room temperature probe Connect the room temperature probe provided to the designat- ed connector on the appliance. The bulb of the probe must be positioned as shown in the figure. If the probe is not connected, an acoustic signal is giv- en (refer to the manual "... -
Page 25: Use
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Please follow indications provided in the section " START-UP AND OPERATING TEST ": before completing the cladding assembly operations ■ ■ For information regarding operation, please refer to after all cladding and construction interventions have ■... -
Page 26: Cleaning And Maintenance
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Cleaning must be carried out with suitable equipment and in full compliance with all health and safety regu- lations. The materials and equipment used for cleaning must ■ ■ not alter appliance characteristics or operation in any way. -
Page 27: Recommended Interval
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Recommended interval Do not clean metal parts using alcohol, solvents, pet- Interventions which may be carried out by the user rol-based products, acetones or other degreasing or Glass 1 day abrasive substances. In the event of such substances being used, the manufacturer cannot be held respon- Brazier and grate support 1 day... -
Page 28: Disposal Of Ashes
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.6 DISPOSAL OF ASHES Ash from natural (non-treated) wood burned in stoves or open fireplaces is composed mainly of calcium, silicon, potassium and magnesium. For this reason, it may be used as a fertilizer for plants, as long as 2.6 kg/10m is not exceeded annually. -
Page 29: Cleaning The Smoke Chamber
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - turn the lower part outwards and extract it Proceed as follows: - remove the ash drawer (1) - remove the screws (2) which secure the smoke chamber cover Fig. 40 - clean the slots (7) Fig. -
Page 30: Cleaning The Extractor Fan
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - close the smoke chamber reversing the order of operations. A vacuum cleaner which is suitable for use with ash is needed when carrying out this type of cleaning oper- ation. To dispose of the ash, please refer to the section " DIS- POSAL OF ASHES ". -
Page 31: Replacing The Fuses
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.14 REPLACING THE FUSES For appliances fitted with a boiler, if you disconnect the FUSE ON THE POWER CABLE SOCKET power supply, some of the appliance functions are not Extract the fuse box drawer (1) in the power socket and replace available or active (e.g. -
Page 32: Reference Standards
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 12 REFERENCE STANDARDS Country of application: The European Union EN 14785 Residential space heating appliances fired by wood pellets - Requirements and test methods EN 60335-1 Household and similar electrical appliances. Safety - Part 1: General requirements EN 60335-2-102 Household and similar electrical appliances. -
Page 33: Appendix
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 13 APPENDIX Identification data plate: key & Please read and comply with the instructions for installation, use and maintenance. Model = Model Type = Product type DoP = Declaration of performance N.Body = Notified laboratory Pn = Nominal heat output Pp = Partial heat output Pwnom = Nominal water heat output... - Page 34 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE DT2003282_H072229EN0_02...
- Page 35 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE DT2003282_H072229EN0_02...
- Page 36 Via Montello, 22 31011 Casella d’Asolo (TV) - ITALY Tel. +39.04235271 - Fax +39.042355178 www.piazzetta.it e-mail:infopiazzetta@piazzetta.it...
