Page 1

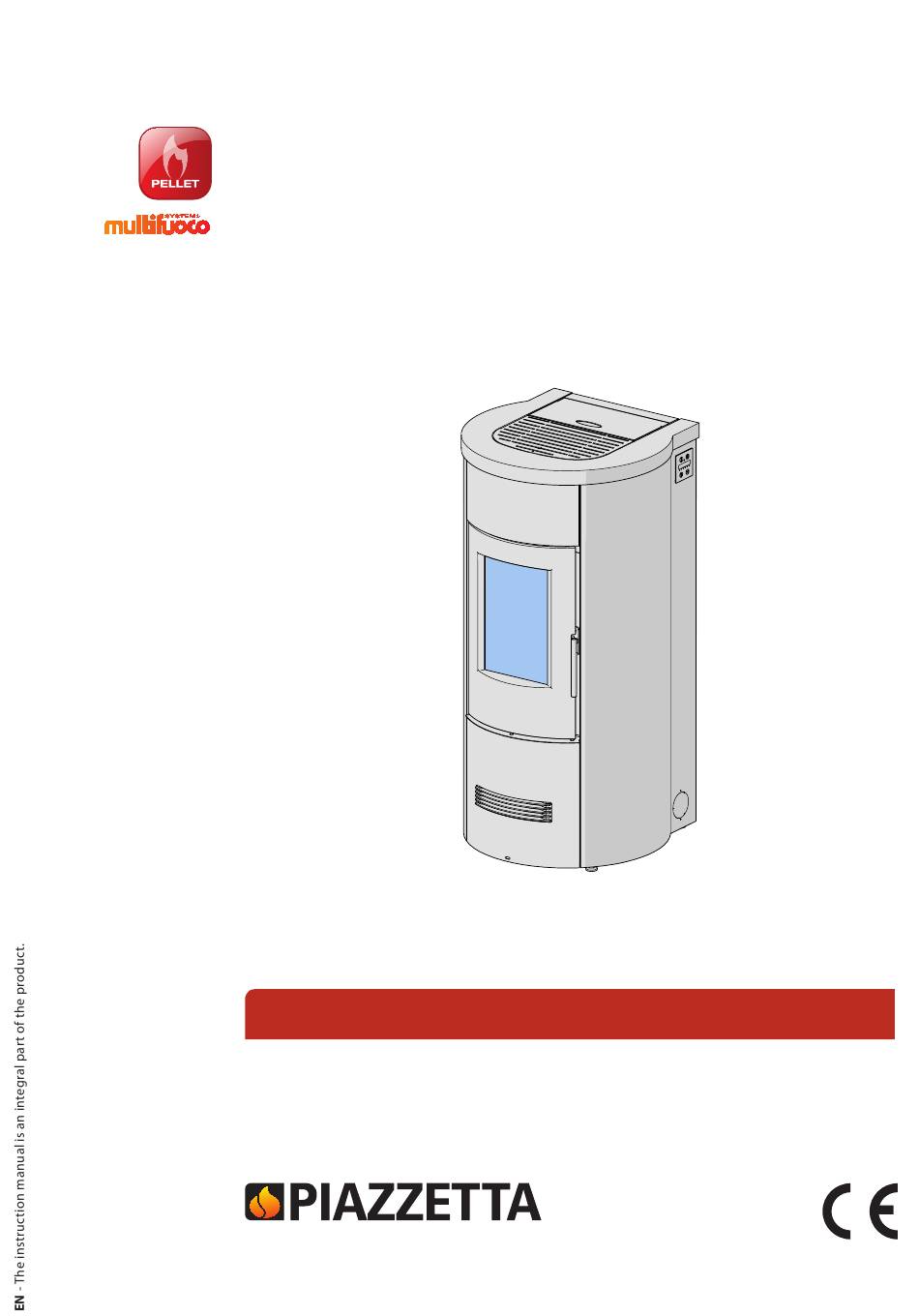

The instruction manual is an integral part of the product Pellet stoves P120 T PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE...
Page 2
TRONIC FORMAT on our company website (www.piazzetta.com), under “Products”, on the specific product characteristics page. This document is the property of Gruppo Piazzetta S.p.A. and no part of it may be reproduced or disclosed to third parties, whol- ly or in part, without written permission All rights reserved by Gruppo Piazzetta S.p.A..
Page 3
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE CONTENTS GENERAL INFORMATION PRODUCT INFORMATION Product description Part identification Safety devices Check devices Product identification data Characteristics Accessories upon request Technical data Sizes FUEL Pellet specifications Information regarding pellet loading GENERAL INFORMATION REGARDING THE SYSTEM Installation room Fresh air intake Chimney...
Page 4
(authorized technical assistance centre). in the sections " FAULTS " or " MESSAGES - - Gruppo Piazzetta S.p.A. cannot be held liable for situations of SAFETY WARNINGS - ANOMALIES ". risk, defects, damage, product malfunctioning or for damage...
Page 5
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Product use may cause some surfaces to During the operation and/or cooling phase, become extremely hot (the glass, the exter- slight creaking noises may be heard. This nal surfaces, the handles, the smoke outlet is not considered a defect, but is a conse- passage).
Page 6
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT INFORMATION Do not use the appliance as an incinerator or in any way other than that for which it was designed. PRODUCT DESCRIPTION Do not use the appliance if the glass or seals ■ on the door are damaged.
Page 7
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PART IDENTIFICATION Door 20 Electrical power cable Ceramic glass 21 Wi-Fi/Bluetooth equipment for remote control Door handle 22 Smoke intake/Extractor fan Hot air outlet 23 Combustion air duct Lower smoke chamber 24 Auger motor Grate deflector 25 Smoke outlet Grate 26 Pellet indicator...
Page 8
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Electronic control unit: SAFETY DEVICES the electronic control unit signals and controls a series of events including power and ignition failure. The appliance is equipped with the following safety and check devices which stop the stove from operating if any faults occur. If any safety warnings or alarms are activated, please consult the “...
Page 9
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT IDENTIFICATION DATA CHARACTERISTICS Each product is identified in the following way: Structure: - IDENTIFICATION DATA PLATE (1) with the model (A) and ap- - in steel pliance performance specifications Cladding: - SERIAL NUMBER PLATE (2) with the serial number of the ap- - in painted steel pliance (B) Top surface:...
Page 10
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE TECHNICAL DATA Model P120 T Type SP400-05 Unit of meas- at nominal at part load Description urement heat output heat output Fuel natural pure wood pellets Heat Output Hourly fuel consumption kg/h 1,94 0,77 Efficiency...
Page 11
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE (values in cm) SIZES P120 T Fig. 5 10,9 112,2 50,5 50,5 48,8 11,5 11,5 54,5 12,7 8 cm 7,5 cm 6 cm A Smoke outlet Combustion air duct Ducting outlet standard position DT2005687_H072607EN0_03...
Page 12
Only keep the cover of the pellet hopper open for as ■ thorised by Gruppo Piazzetta S.p.A.. long as it takes to complete the refill operation. To en- Using pellets that are out of date or not in conformity ■...
Page 13
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 3.2.1 Pellet indicator When the red reload indicator can be seen inside the hopper, it is possible that the auger is not perfectly loaded which would cause irregular pellet unloading in the grate and start-up failure. Fig.
Page 14
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE GENERAL INFORMATION Do not install type A and B gas appliances in rooms REGARDING THE SYSTEM where there are also heat generators powered by wood (or solid fuels in general) or in adjoining rooms (in line Below is some general information regarding the system, appli- with UNI standards).
Page 15
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE The connecting pipe for the combustion air inlet of the appliance must comply with the following requirements: The existence of more than one appliance is only per- - have a diameter equal to or greater than the diameter of the mitted if allowed by the regulations and manufacturer inlet on the appliance of each individual appliance.
Page 16
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - must be constructed in such a way as to ensure that in the event of winds from all directions and angle, discharge of the combustion products is assured (chimney terminal with anti downdraught cowl) - must be positioned outside the reflux area - must be positioned taking into account the roof inclination and respect the distances in relation to buildings, plants, aerials or...
Page 17
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE In particular, remember that the connecting flue pipe: Some systems – particularly those with appliances equipped with - must be in compliance with regulations, equipped with CE a boiler – may cause condensation to form, even if you abide by marking and be made respecting all safety requirements the indications provided.
Page 19
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PREPARATIONS FOR INSTALLATION Make sure that while working, the lower parts of the side panels and the lower front panel do not get mis- shapen, scratched or damaged. Product installation and maintenance must be carried out exclusively by qualified personnel with sufficient After having removed the material protecting the appliance, re- knowledge of the product itself.
Page 20
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE ACCESS TO THE INTERNAL PARTS OF THE PRODUCT Side panels Proceed as follows: - open the pellet hopper cover (1) - loosen the screws (2) - remove the grille (3) - remove the top surface panel (4) Fig.
Page 21
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE MINIMUM SAFETY DISTANCES The position of the product inside the room must take into ac- count not only the regulations, heating requirements, the shape of the installation and adjoining rooms but also accessibility dur- ing installation, use and maintenance operations. It is therefore recommended that an area greater than the one indicated, is left around the appliance to facilitate maintenance interventions and prevent overheating problems.
Page 22
“Multifuoco System” is a system for channelling hot ventilated air into a designated room. In this EXCLUSIVE system PATENTED by Gruppo Piazzetta S.p.A., heat produced by the firebox is distributed from bottom-up with- in the room by means of one or more than one fan.
Page 23
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.3.3 Examples of ducting Below are some examples of hot air ducting. In order to create some solutions, the installer needs not only the flexible duct of a suitable diameter but also air vents and Y-ele- ments and/or connectors, neither of which are provided but may be purchased separately.
Page 24
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Hot air outlet also ducted into a second room 6.3.4 Connection between flexible pipes To facilitate installation and maintenance operations, when the flexible pipe passes through the holes to the outside of the ap- pliance (rear or side panel), or into the wall, place a joining sleeve in between.
Page 25
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.3.6 Hot air outlet heating area COMBUSTION AIR CONNECTION An area in which combustible or heat-sensitive objects (wooden furniture, curtains, carpets, fabric, clothing, ornaments, flamma- ble liquids, etc.) are forbidden is to be provided around the hot Please refer to and carefully read the section "...
Page 26
Additional requirements for the connecting flue pipe Gruppo Piazzetta S.p.A. supplies pipes and bends for the connect- ing flue pipe, all of which are approved and specifically sized for the smoke outlet of its products.
Page 27
(not supplied as standard). This allows operation to be deter- mined on the basis of the room temperature detected by the Only connect devices approved by Gruppo Piazzetta thermostat. S.p.A.. For more information on installation and opera- tion, please contact a T.A.C.
Page 28
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE CLADDING AND TRIM Consent must come from a non-powered contact. Do not connect any powered element. When installation has been completed, in addition to the indica- tions given above, it may be necessary to fit accessories such as external cladding, parts and trims.
Page 29
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE To position the humidifier (1), undo the screw (2) and remove the element (3) For information regarding operation, please refer to the manual " OPERATING INSTRUCTIONS ". HUMIDIFIER (ACCESSORIES) The appliance is equipped with a system to humidify the environ- ment (accessories).
Page 30
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Maintenance interventions are mandatory in order to ensure Recommended interval safety, for correct and efficient stove operation and to guarantee Interventions which may be carried out by the user a long life of operation. If maintenance is not carried out with the recommended frequency, appliance performance could suffer Glass 1 day...
Page 31
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.3 CLEANING THE PAINTED METAL PARTS 10.5 CLEANING THE GLASS When cleaning the painted metal parts, use a soft cloth mois- During start-up it is possible that tar may accumulate on the glass tened with water. which will disappear when optimal combustion is reached.
Page 32
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.7 CLEANING THE GRATE AND GRATE 10.8 CLEANING THE COMBUSTION CHAMBER SUPPORT The grate area must be cleaned. Recommended cleaning frequency: refer to the section " SCHEDULED MAINTENANCE ". Recommended cleaning frequency: refer to the section Proceed as follows: "SCHEDULED MAINTENANCE".
Page 33
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - clean the slots (5) with the supplied designated ramrod (6) 10.9 CLEANING THE SMOKE CHAMBER - clean the hole for the vacuum detection (7) inside the smoke chamber as indicated in the figure: for the appliance to operate correctly, the hole must always be free of dust and ash Recommended cleaning frequency: refer to the section "...
Page 34
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.10 CLEANING THE EXTRACTOR FAN 10.12 CLEANING THE SMOKE OUTLET Any dust or ash deposits on the smoke extractor fan blades may The frequency with which the smoke outlet is to be cleaned de- result in the fans becoming noisy when the appliance is in opera- pends on the how much the appliance gathers dirt.
Page 35
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.13 REPLACING THE FUSES 11 WHEN NOT IN USE When shutting the appliance down at the end of the season or if a long period of inactivity is anticipated, proceed as follows: Please contact a T.A.C. (Technical Assistance Centre) or - remove all pellets from the appliance qualified technician for any work requiring access to - carry out all the operations described in the section "...
Page 36
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 12.1 ELECTRICAL AND ELECTRONIC WASTE 12 DISPOSAL OF PRODUCT AT END OF PRODUCT LIFE When the symbol is shown on the appliance, accessories, packaging or documentation, The owner is exclusively responsible for destroying and disposing this indicates that the appliance, accessories, of the product in compliance with the regulations in force as re- batteries/accumulators and any related elec-...
Page 37
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 13 REFERENCE STANDARDS Country of application: The European Union EN 14785 Residential space heating appliances fired by wood pellets - Requirements and test methods EN 60335-1 Household and similar electrical appliances. Safety - Part 1: General requirements EN 60335-2-102 Household and similar electrical appliances.
Page 38
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 14 APPENDIX Identification data plate: key Please read and comply with the instructions for installation, use and maintenance. Model = Model Type = Type DoP = Declaration of performance N.Body = Notified body Pn = Nominal heat output Pp = Part load heat output Pnom = Nominal space heat output Ppart = Part load space heat output...
Page 39
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE DT2005687_H072607EN0_03...
