Summary of Contents for Piazzetta P163

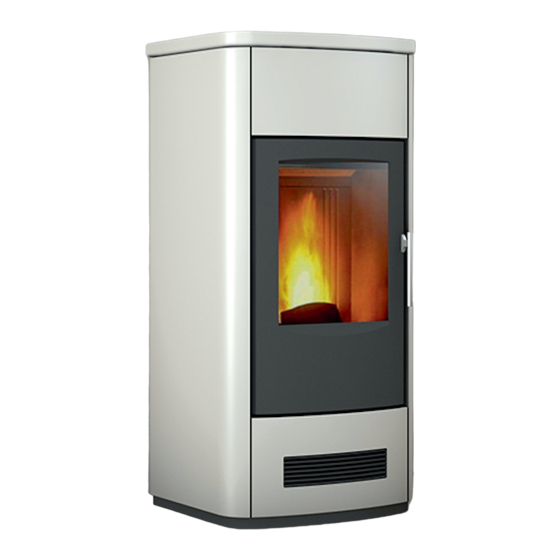

- Page 1 The instruction manual is an integral part of the product Pellet Stove P163 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE...
- Page 2 TRONIC FORMAT on our company website (www.piazzetta.it), under “Products”, on the specific product characteristics page. This document is the property of Gruppo Piazzetta S.r.l. and no part of it may be reproduced or disclosed to third parties, wholly or in part, without written permission All rights reserved by Gruppo Piazzetta S.r.l..
-
Page 3: Table Of Contents
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE CONTENTS GENERAL INFORMATION PRODUCT INFORMATION Product description Part identification Safety devices Check devices Product identification data Characteristics Accessories upon request Technical data Sizes FUEL Pellet specifications Information regarding pellet loading GENERAL INFORMATION REGARDING THE SYSTEM Installation room Fresh air intake Chimney... -
Page 4: General Information
T.A.C. (authorized technical assistance centre). In the event of fire in the flue, stop using the - Gruppo Piazzetta S.r.l. cannot be held liable for situations of appliance, do not open the door of the ap- risk, defects, damage, product malfunctioning or for damage... - Page 5 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Product use may cause some surfaces to be- It is forbidden any unauthorized modification come extremely hot (the glass, the external of the appliance. surfaces, the handles, the smoke outlet pas- sage). Any contact between clothing or body parts and these surfaces, including where ac- Do not stand or place objects which are not cidental, may cause burns or fires.
-
Page 6: Product Information
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Before carrying out any assembly, installation or ignition proce- PRODUCT INFORMATION dures, the enabled installer must check that the system has been manufactured in compliance with the applicable instructions provided by the manufacturer and in compliance with all relevant regulations. -
Page 7: Part Identification
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PART IDENTIFICATION 17 Smoke outlet Pellet hopper cover Pellet hopper grille 18 Environment fan/s Door 19 Auger motor 20 Pellet indicator Ceramic glass Door handle 21 Pellet hopper 22 Metal structure Ash drawer Smoke chamber 23 Appliance control panel Smoke intake/Extractor fan Adjustable feet... -
Page 8: Safety Devices
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Electrical safety: SAFETY DEVICES the appliance is protected by fuses in the event of a power surge. The appliance is equipped with the following safety and check Electronic control unit: devices which stop the stove from operating if any faults occur. the electronic control unit signals and controls a series of events If any safety warnings or alarms are activated, please consult the including power and ignition failure. -
Page 9: Product Identification Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT IDENTIFICATION DATA CHARACTERISTICS Cladding: Each product is identified in the following way: - IDENTIFICATION DATA PLATE (1) with the model (A) and ap- - in painted steel pliance performance specifications - majolica - SERIAL NUMBER PLATE (2) with the serial number of the ap- Structure: pliance (B) - in steel... -
Page 10: Technical Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE TECHNICAL DATA Model P163 Product type Unit of meas- at nominal at reduced Description urement heat output heat output Fuel natural pure wood pellets Heat Output 11,30 3,50 Hourly fuel consumption kg/h 2,603 0,805 Efficiency... -
Page 11: Sizes
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE (values in cm) SIZES P163 Fig. 6 19,5 19,5 11,5 14,5 8 cm 7.5 cm 6 cm A Smoke outlet Combustive air duct Ducting outlet standard position DT2003301_H072242EN0_01... -
Page 12: Fuel
Gruppo Piazzetta S.r.l.. compliance with the requirements of class A1 (EN 17225-2). Using pellets that are out of date or not in conformity ■... - Page 13 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 3.2.1 Pellet indicator When the red reload indicator can be seen inside the hopper, it is possible that the auger is not perfectly loaded which would cause irregular pellet unloading in the grate and start-up failure. Fig.
-
Page 14: General Information Regarding The System
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE GENERAL INFORMATION Do not install type A and B gas appliances in rooms REGARDING THE SYSTEM where there are also heat generators powered by wood (or solid fuels in general) or in adjoining rooms (in line Below is some general information regarding the system, appli- with UNI standards). -
Page 15: Fresh Air Intake
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE In brief: FRESH AIR INTAKE - the chimney must be comply with the regulations, bear the CE marking and be made respecting all safety requirements In order to operate normally, each appliance must be provided - the chimney must be suitable for the specific operating condi- with the air needed for combustion. -
Page 16: Chimney Terminal
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE If the chimney does not meet the requirements, consult with spe- cialised personnel regarding adjustment of the current chimney, for example, by providing adequate piping. The connection for the combustion product outlet must comply with local regulations. In Italy and other European countries combustion ■... - Page 17 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Additional requirements for the flue pipe To ensure correct product operation, where not specified under items " TECHNICAL DATA " and " CONNECTION TO THE SMOKE OUTLET ", the connection to the flue pipe must have the follow- ing characteristics: maximum length of the flue pipe (a)
-
Page 18: Preparation For Installing
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PREPARATION FOR INSTALLING HANDLING In order to prevent any accidents or damage to the product, please follow the recommendations below. - Unpacking and installation must be carried out by at least two people - the product must always be moved and handled with suitable equipment in full compliance with current safety regulations - the packaged product must be kept in the position according to the directions shown by the diagrams and signs on the pack... -
Page 19: Installation Kit And Accessories
“Multifuoco System” is a system for channelling hot ventilated air into a designated room. In this EXCLUSIVE system PATENTED by Gruppo Piazzetta S.r.l., heat produced by the firebox is distributed from bottom-up with- in the room by means of one or more than one fan. - Page 20 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.3.2 Hot air outlet in other directions During installation, it is possible to divert and duct the hot air so The maximum total length indicated in the section that it is distributed in different parts of the same room or adjoin- "...
- Page 21 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Hot air outlet ducted into more than one room The figures below show some examples of the position- ing of the hot air vents on walls or on the floor. DT2034902-0 Fig. 21 First deviation connected directly to the fan outlet For this appliance, in order to carry out diversions directly to the fan outlet, a section of flexible pipe (F) must be placed before con- necting the Y element.
-
Page 22: Combustion Air Connection
For the product to operate correctly, the ducting must have the Additional requirements for the flue pipe following characteristics: Gruppo Piazzetta S.r.l. supplies pipes and bends for the flue pipe, minimum diameter 60 mm all of which are approved and specifically sized for the smoke out- let of its products. -
Page 23: Electrical Connections
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE ELECTRICAL CONNECTIONS Fig. 28 Room probe connection Power cable socket Fig. 29 Only the power supply connection can be carried out by the user. 6.6.3 External environment thermostat The appliance allows for connection to an external thermostat Electrical work must be carried out by qualified tech- (not supplied as standard). -
Page 24: Start-Up And Operating Test
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Consent must arrive from a non-powered contact (nor- mally open). Do not connect any live elements. Use a 2x0.5 mm cable to make the connection !da du- plicazione!. For information regarding operation, please refer to the manual "... -
Page 25: Humidifier (Accessories)
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE HUMIDIFIER (ACCESSORIES) 10 CLEANING AND MAINTENANCE The appliance is equipped with a system to humidify the envi- ronment. After installation, cleaning and maintenance work: restore and replace all worn or damaged parts with ■ ■ The humidifier is to be filled with water on average original spare parts every two or three days and in any case, on the basis of... -
Page 26: Recommended Interval
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.2 CLEANING THE CERAMIC CLADDING The time intervals are merely an indication: these inter- The ceramic cladding (where present) must be cleaned with a vals may need to be shorter depending on the frequen- soft, dry cloth. If more strenuous interventions are required, use cy of use and the type of fuel used. -
Page 27: Cleaning The Glass
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.5 CLEANING THE GLASS 10.8 CLEANING THE GRATE AND GRATE SUPPORT During start-up it is possible that tar may accumulate on the glass which will disappear when optimal combustion is reached. If this The grate area must be cleaned. does not happen, it is recommended that the glass is cleaned dai- ly, before start-up, to prevent the formation of any deposits which would be difficult to remove. -
Page 28: Cleaning The Combustion Chamber
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.9 CLEANING THE COMBUSTION CHAMBER Recommended cleaning frequency: refer to the section " SCHEDULED MAINTENANCE ". Proceed as follows: - remove the grate deflector (1) and remove the grate (2) from its housing - remove the upper deflector (3) by lifting it (A) out of its housing and extracting it (B) from the front part while rotating gently around the side support pins - turn the cams (4) to release the lower deflector (5) -
Page 29: Cleaning The Extractor Fan
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE The fan must be cleaned with the fire out, the appliance completely cold and with the power cable disconnect- The extractor fan is only to be cleaned by a T.A.C. (Tech- ■ ■ nical Assistance Centre) or qualified technician. 10.12 CLEANING THE ROOM FAN Any dust or ash deposits on the extractor fan blades may result in the fans becoming noisy when the appliance is in operation. -
Page 30: Replacing The Fuses
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Recommended cleaning frequency: refer to the section " SCHEDULED MAINTENANCE ". Please refer to and carefully read the section " FLUE ■ ■ PIPE ". If necessary, particularly on the first few occasions, we recommend calling a qualified technician. "T"... -
Page 31: Reference Standards
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 12 REFERENCE STANDARDS Country of application: The European Union EN 14785 Residential space heating appliances fired by wood pellets - Requirements and test methods EN 60335-1 Household and similar electrical appliances. Safety - Part 1: General requirements EN 60335-2-102 Household and similar electrical appliances. -
Page 32: Appendix
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 13 APPENDIX Identification data plate: key & Please read and comply with the instructions for installation, use and maintenance. Model = Model Type = Product type DoP = Declaration of performance N.Body = Notified laboratory Pn = Nominal heat output Pp = Partial heat output Pwnom = Nominal water heat output... - Page 33 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE DT2003301_H072242EN0_01...
- Page 34 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE DT2003301_H072242EN0_01...
- Page 35 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE DT2003301_H072242EN0_01...
- Page 36 Via Montello, 22 31011 Casella d’Asolo (TV) - ITALY Tel. +39.04235271 - Fax +39.042355178 www.piazzetta.it e-mail:infopiazzetta@piazzetta.it...
