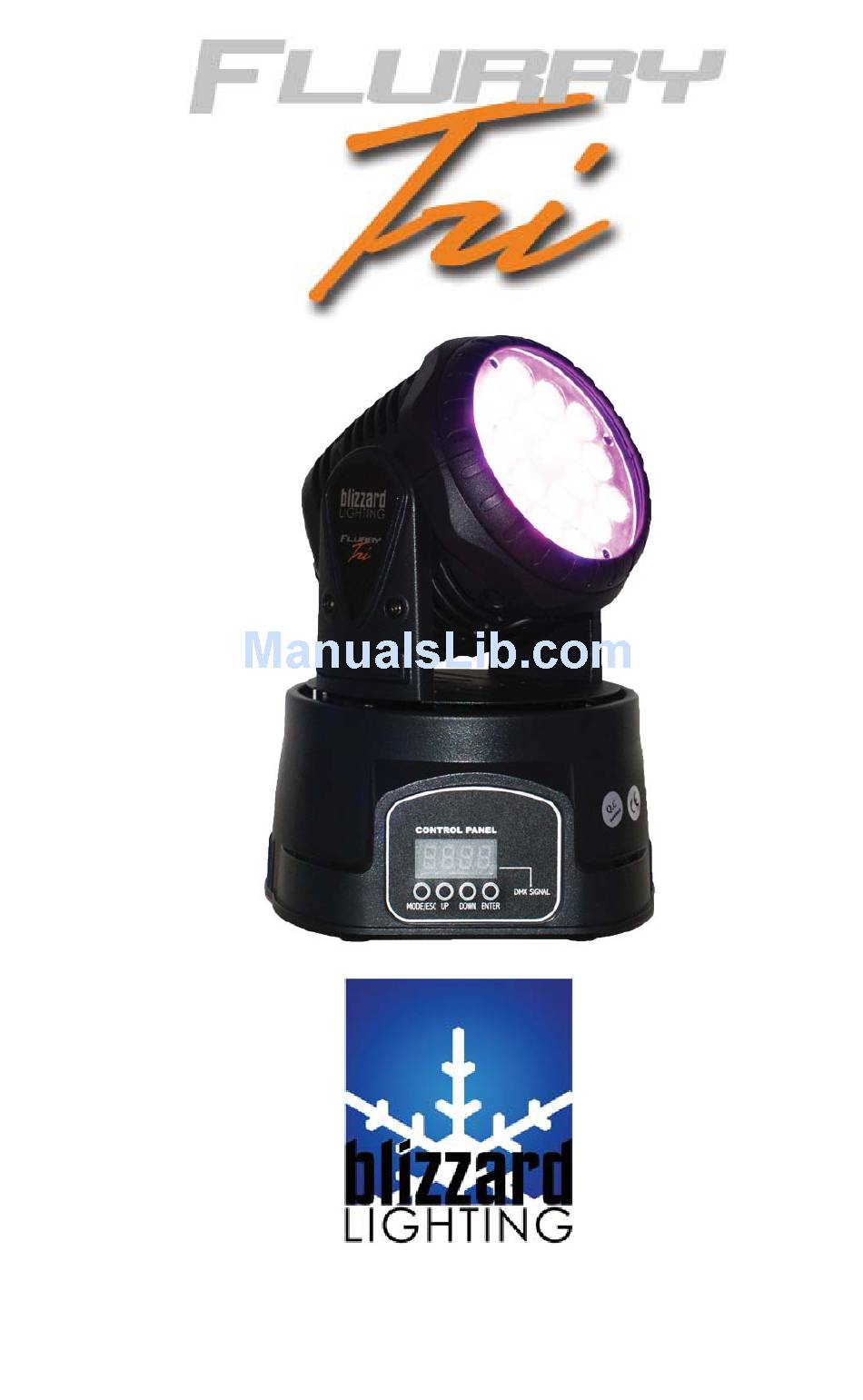

- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Brookfi eld, WI USA Copyright (c) 2011...
-
Page 2: Table Of Contents
DMX Channel Values In-Depth (13-Channel Mode) DMX Channel Values In-Depth (5-Channel Mode) Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Flurry As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 3: Flurry™ Tri
If something is wrong, just give us a call or send an email. We’ll be happy to help, honest. Blizzard Lighting PO Box 1874., Brookfi eld, WI 53008 USA support@blizzardlighting.com | Phone: 414-395-8365 www.blizzardlighting.com Page 3 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 Flurry TRI Manual Rev. -
Page 5: Meet The Flurry™ Tri
What It Does Pan Fine (16-Bit) Tilt Tilt Fine (16-Bit) Pan/Tilt Speed Dimmer & Strobe Red Intesity Green Intensity Blue Intensity Color Macros Color Speed Movement Macros Reserved Page 5 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 6: Dmx Quick Reference (5-Channel Mode)

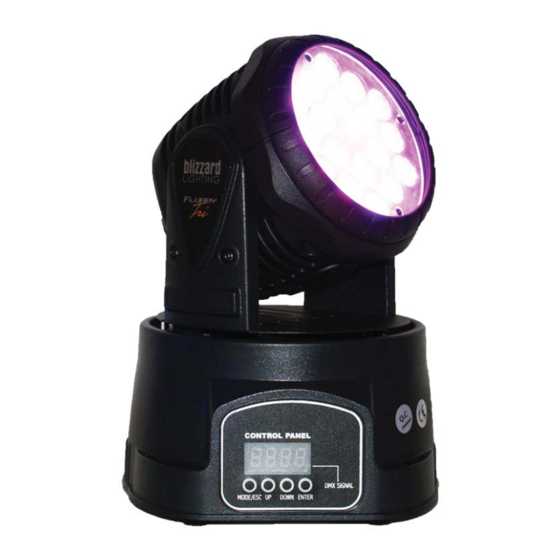

Figure 1: The Flurry Pin-Up Picture High Power LED’s Head Readout Control Panel Figure 2: The Rear Connections DMX In DMX Out AC Power Fuse Cover 110V/220V Switch Easy Controller (CA-9) Page 6 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 7: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Step 3: Connect other fi xtures in the chain from output to input as above. Place a DMX terminator on the output of the fi nal fi xture to ensure best communication. Page 8 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fi xture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previ- ous option or menu without changing the value, press the <MODE/ESC> button. Page 10 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
Control Panel Menu Structure Page 11 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 12: Additional User Adjustments
2.) Press <ENTER> to confi rm your selection. TO RESTORE ALL SETTINGS TO THEIR FACTORY DEFAULTS: 1.) Press the <MODE/ESC> button until the display shows 2.) Press <ENTER> to confi rm your selection. Page 12 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 13: Stand-Alone ("Auto") Mode
Allows the unit to be controlled by any universal DMX controller. If you are unfamiliar with DMX, please read the DMX Primer on page #17. 1.) The default mode for the fi xture is DMX, which appears as on the LED Readout. Page 13 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 14: Dmx Channel Values In-Depth (13-Channel Mode)
200 <-> 215 Sound Active Program #5 216 <-> 231 Sound Active Program #6 232 <-> 247 Sound Active Program #7 247 <-> 255 Sound Active Program #8 Reserved Page 14 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 15: Dmx Channel Values In-Depth (5-Channel Mode)
189 <-> 202 Crimson 203 <-> 216 Violet 217 <-> 230 Crepe 231 <-> 243 Color Change Macro #1 244 <-> 255 Color Change Macro #2 Reserved Page 15 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 16: Troubleshooting
Verify proper mode of operation. Is the fi xture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 16 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 17: Appendix
It is fl exible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensible tool for any lighting designer or lighting performer. Page 17 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 18: Keeping Your Flurry As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 18 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... -
Page 19: Tech Specs
Output 3-pin XLR Female Optional Controller CA-9 Easy Controller Military Callsign Foxtrot Tango 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 19 Flurry TRI Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
