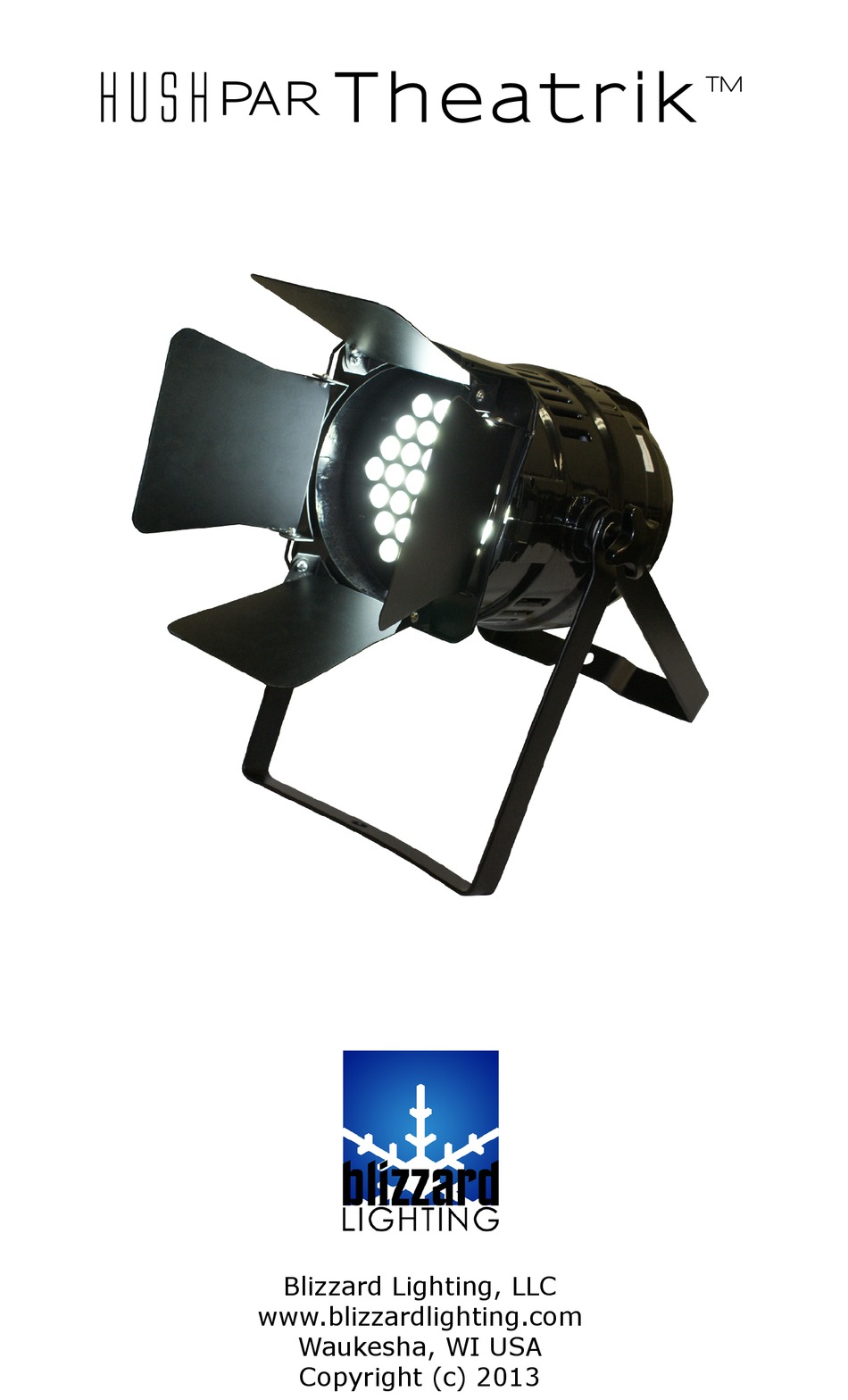

- Page 1 T heat rik HUSH Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2013...
-
Page 2: Getting Started
You can download the latest version of this document from www.blizzardlighting.com. Author: Date: Last Edited: Date: J. Thomas 5/8/2013 J. Thomas 5/22/2013 Page 2 HushPAR Theatrik Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 3: Safety Instructions
Always use the same type spare parts. • Make sure the power cord is never crimped or damaged. • Never disconnect the power cord by pulling or tugging on the cord. • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at support@blizzardlighting.com. Page 3 HushPAR Theatrik Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 4: Main Features

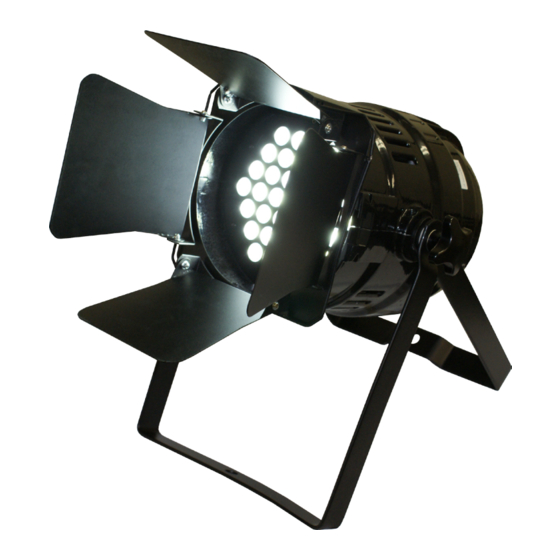

2. MEET THE HUSHPAR™ THEATRIk LED PAR MAIN FEATURES: • 36x 3-watt Cool White 6500K (daylight) LED’s • Efficient convection cooling for zero fan noise • Dual mounting yoke allows flexibility in positioning • Rugged die cast aluminum enclosure • Use with or without optional barn doors • 100,000 hour life span • Perfect Color Distribution, (SDC) <0.006 OPTICAL: • Installed optics: 25 degree • 27,600 Lux @ 1m, 8,400 Lux @ 2m • 100% flicker-free dimming via conventional AC dimmer packs • PWM Frequency>7.8KHz COOLING/ACOUSTIC: • High-performance fanless convection cooling • ZERO operating noise DIMENSIONS: 11.46 inches (291 mm) 12.76 inches (324 mm) Page 4 HushPAR Theatrik Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 5: Fuse Replacement
3. SETUP Fuse Replacement CAUTION! The HushPar™ Theatrik utilizes a high-output switch-mode power supply with an internal fuse. Under normal operating conditions, the fuse should not require replacement. The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your HushPar™ Theatrik fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Mounting & Rigging • Slide the barn door assembly into the grooves on the front of the fixture. (optional) • Securely connect the power cable to a power socket. Dimming can be achieved via the use of a conventional AC dimmer pack. • This fixture may be mounted in any SAFE position provided there is enough room for ventilation. • It is important never to obstruct cooling vents pathway. Mount the fixture using a suitable “C” or “O” type clamp. The clamp should be rated to hold at least 10x the fixture’s weight to ensure structural stability. Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixutres overhead. • Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. -
Page 6: Returns (Gasp!)
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 6 HushPAR Theatrik Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 7: Other Information
97W, .9A Power Factor Light Source 36* 3-watt white LEDs, 100,000 hours Optical Beam Angle 25 degree optics standard Luminous Intensity 27,600 Lux @ 1m, 8,400 Lux @ 2m Thermal Max. Operating Temp. 104 degrees F (40 degrees C) ambient Other Information 3.9% of all women do not wear underwear. 2-year limited warranty, does not cover Warranty malfunction caused by damage to LED’s. Page 7 HushPAR Theatrik Manual Rev. A © 2013 Blizzard Lighting, LLC... - Page 8 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
