- Page 1 IMIX-5.3 ORDERCODE D2352 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio IMIX-5.3 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio IMIX-5.3 Product Guide ™ Warning ................................... 3 Unpacking Instructions ............................. 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................5 Claims ..................................5 Description of the device ............................. 6 Functions ..................................8 Set Up and Operation ..............................11 Connection Cables .............................. -
Page 4: Dap Audio Imix-5.3
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: • DAP IMIX-5.3 • Power adapter 2x 18Vac, 700mA • User manual... -
Page 5: Operating Determinations
Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description Of The Device

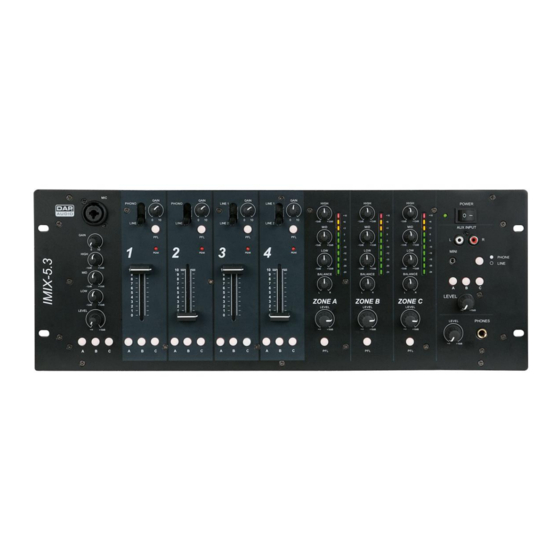

Features The IMIX-5.3 is a basic 3 zone control mixer. It has a logical design and all functions are very clear and easy to control. Each channel has 3 output buttons to route the channel to your desired area/zone. All outputs have their own EQ settings and with the PFL function you are able to monitor each area/zone with a pair of headphones. - Page 8 35) Zone A RCA unbalanced out connector 41) GND screw Installation Remove all packing materials from the IMIX-5.3 Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing.
-
Page 9: Functions
Functions 1. Mic gain control The input sensitivityof the Mic (2) input is determined by the gain control. With the gain control you are able to adjust the input- sensitivity for an optimal match with the mixer’s internal operation level. The high gain of this mixer is ideal when dealing with very low input levels. - Page 10 Use the phone/Line (21) button to set up this input for connecting either headphone or line level output devices. 18. Power LED Indicates that the IMIX-5.3 is switched on. 19. Power on/off switch Do not supply power before the whole system is set up and connected properly.
- Page 11 This control allows you adjust the level of the aux (17,20) inputs in the master mix. Fig. 3 Power adapter connector This is the remote AC power supply input socket for the IMIX-5.3 It is a special three core socket. Please use the supplied DAP audio adapter only. 31. Zone C XLR balanced out connectors Use these outputs to connect an amplifier with balanced inputs.
-
Page 12: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate an 115V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. -
Page 13: Maintenance
Maintenance DAP Audio IMIX-5.3 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 14: Product Specification
Product Specification Input channels 1 x Microphone, combo XLR/Jack 7 x Line, RCA 2 x Phono, RCA 1 x Phone, 3,5mm jack Output channels 3 x Master (Balanced), XLR/RCA 1 x Headphones, 6.3mm Jack Other specifications Master EQ: 100 Hz, 1 KHz, 10 KHz, -12 dB / +12 dB Mic EQ: 100 Hz, 1 KHz, 10 KHz, -12 dB / +12 dB Frequency response:... -
Page 15: Block Diagram
Block diagram... - Page 16 2013 Dap Audio.
