Summary of Contents for DAPAudio IM-53

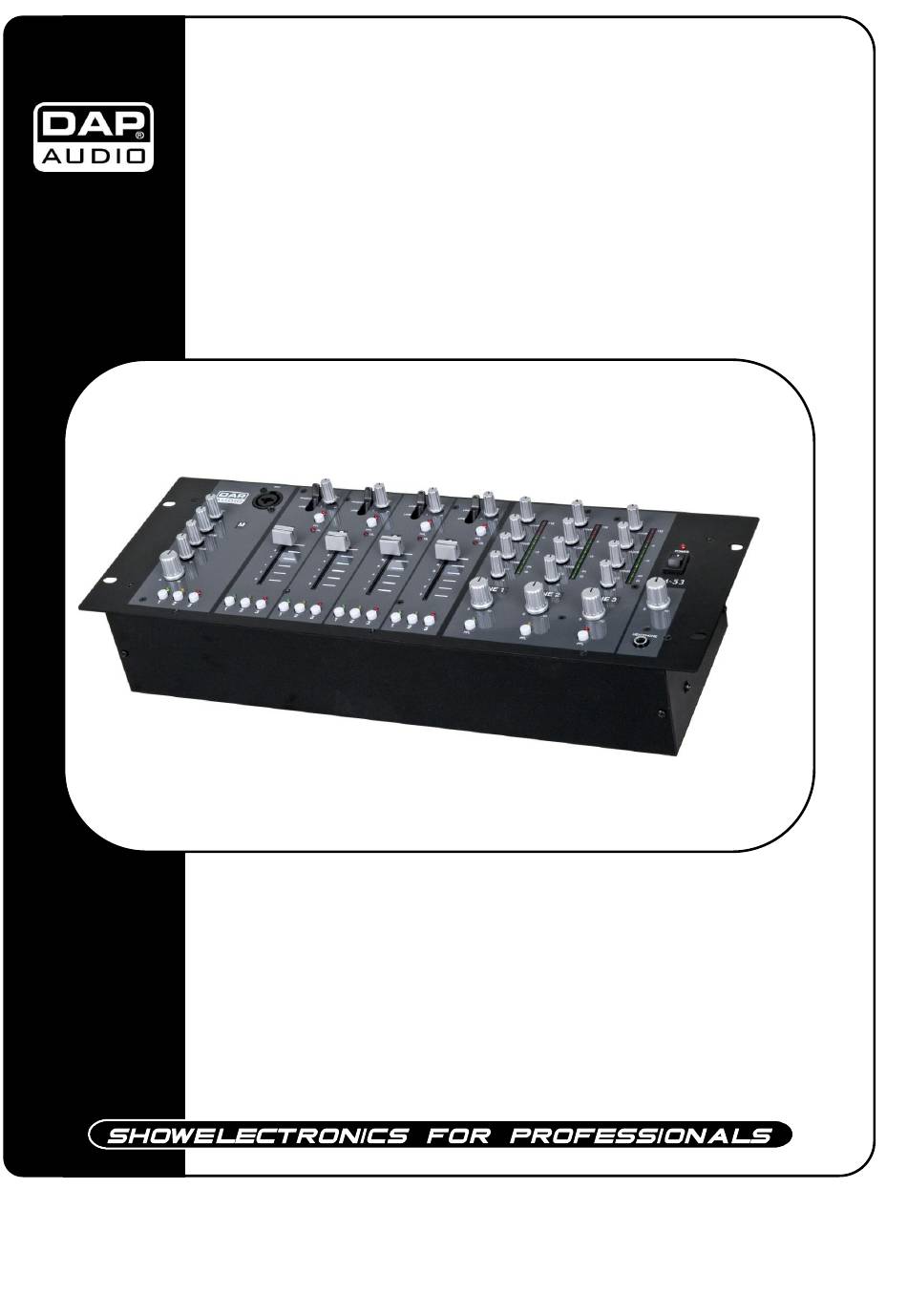

- Page 1 IM-53 Installation Mixer ORDERCODE D6504...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio IM-53 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio IM-53™ Product Guide Warning..…...................…………………………………………....Safety-instructions………………………………………………………………………………………….…....Operating Determinations……………………………………………………………………………………....Description..…................……….…………………………………....Features………………………………………………………………………………….………………….…....Overview ..…………………………………………………………………………………….………..……....Backside.………………………………………………………………………….………..……………..…....Installation................…...……………………………………..………………... Set Up and Operation..............……..…………………………….…..... Set Up ………………..........…………………………………....……......Connection Cables......…........………..………….…….………….…....Maintenance………......…........………..………….…….………….…....Troubleshooting………......…........………..………….…….………….…...... Product Specifications..............……………….…….…………………..... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP IM-53 Installation mixer • User manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. -
Page 5: Safety-Instructions
WARNING CAUTION! Keep this system away from rain and moisture! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 6: Operating Determinations
Make sure that the available voltage is not higher than stated on the rear panel. Make sure that the power-cord is never crimped or damaged. Check the system and the power- cord from time to time. Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch. -
Page 7: Description
Description of the device Features The IM-53 is a Multi Zone mixer from Dap Audio. • 9 inputs • 3 separate selectable outputs (zones) for each channel • Master outputs with low, mid and high frequency control • LED indicators for each output zone •... -
Page 8: Backside
Backside Fig. 2 27) Powercord 28) Fuse T250mA 29) Balanced XLR Output for Zone 1, 2 or 3 (L / R) 30) Unbalanced RCA Stereo Output for Zone 1, 2 or 3 (L / R) 31) CH4; Line 1 (L/R) and Line 2 (L/R) RCA input 32) CH3;... -
Page 9: Installation
Installation Remove all packing materials from the IM-53. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 10 Use the faders to control the levels of channel 1-4. 10. GAIN Use this control to match the connected devices optimally to your IM-53. The fader set to ¾ stroke. Adjust the gain with a loud input signal in such a way that the overload led does not light.
- Page 11 This control allows you to adjust the headphones’ volume. Caution: Depending on the type of headphones connected to the phone jack, the IM-53 is capable of producing very high output. Therefore, make sure to turn the control all the way to the left (minimum setting) before connecting the headphones.
-
Page 12: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. -
Page 13: Maintenance
Maintenance DAP Audio IM-53 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 14: Product Specifications
Product Specification Model: DAP Audio IM-53 Installation Mixer Power Supply: AC 230V-50Hz Power consumption: 15W Inputs: 6 line, 2 phono, 1 mic Line, Phono: cinch unbalanced Mic: combo jack/XLR balanced Outputs: 3 Separate Zones Master: XLR balanced and cinch unbalanced... - Page 15 2009 Dap Audio.
