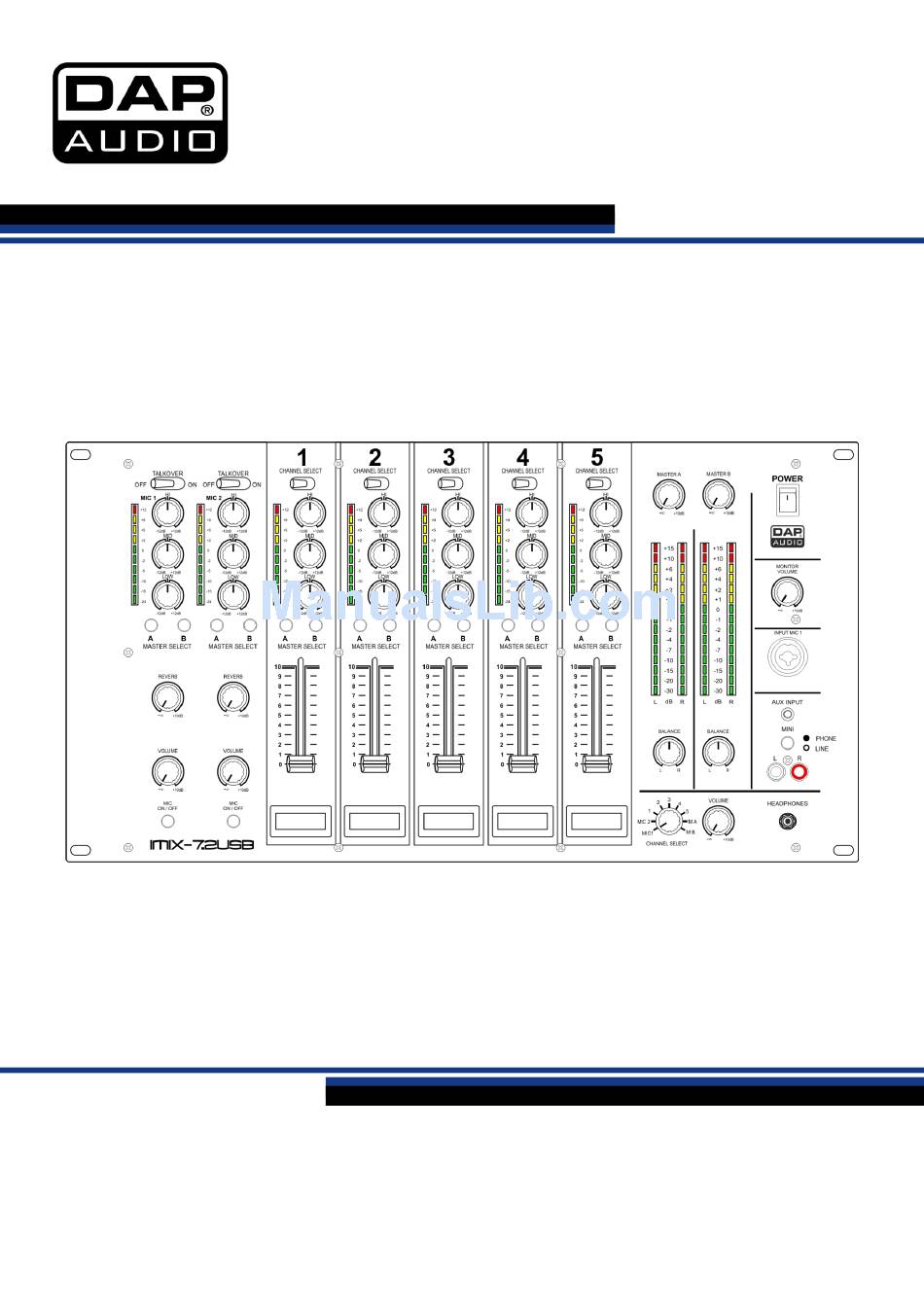

- Page 1 MANUAL ENGLISH IMIX 7.2 USB Ordercode: D2353 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
IMIX 7.2 USB Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................4 Features ..................................4 Overview .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP IMIX-7.2 USB IEC cable 1,5m ... -
Page 4: Operating Determinations
IMIX 7.2 USB Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never remove warning or informative labels from the unit. Never use anything to cover the ground contact. ... -
Page 5: Connection With The Mains
The IMIX-7.2 USB is a compact installation mixer with zone control. It has exact the same functionality as the IMIX-7.2 USB but each input on the IMIX-7.2 USB can be routed to the desired output. This function makes it possible to control 3 areas with different music, sound level and EQ settings. -
Page 6: Overview
IMIX 7.2 USB Overview Front Low control (mic 1/2) Input display High control (mic1/2) Channel fader (channel 1-5) Mid control (mic1/2) VU-meter (master A/B) Talkover on/off switch Balance control (master A/B) Master assign button (all channels) Master control (master A/B) Reverb control Power on/off switch Mic volume control (mic 1/2) -
Page 7: Rear
Channel 2 line input connectors Mic 1 combo input connector Installation Remove all packing materials from the IMIX-7.2 USB. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Functions
IMIX 7.2 USB Functions 1/2/3. Equalizer section (hi/mid/low) The microphone channel’s equalizer section allows shaping of the incoming audio signal. All input channels are fitted with 3-band EQ. The hi (2) and low (1) shelving controls have their frequencies fixed at 5 KHz and 120 Hz respectively. - Page 9 IMIX 7.2 USB Input selection switch (channel 1/2) With this you are able to assign the line (39/40) input or the USB (42/43) input to the according channel. If the line input is selected, the according channel display (16) shows the text you have assigned to it with the display select (16) switch.
- Page 10 IMIX 7.2 USB 18. Output signal VU-meter (master A/B) This meter is a multi-step LED. The accurate level indication allows you to monitor the output signal level at anytime, and match with other devices. 19. Balance control By using the bal(ance) control you can adjust the balance between the left and the right channel.
- Page 11 IMIX 7.2 USB 29. Phone/line button Use this button to configure both aux (26,28) inputs for either line level or phone level. When the input level is too low, press the line/phone level switch. When the light is on, the level of the input signal will be boosted.
- Page 12 IMIX 7.2 USB 41. GND screw Use to connect the ground wire of your turntable. 42. USB 2 port This USB port can be used to connect the IMIX-7.2 to your PC/ laptop. The USB port is bidirectional, the input can be assigned to channel 2 by means of the channel select (9) switch. The output of the USB port is connected to rec A (35) output.
-
Page 13: Set Up And Operation
Follow the configuration examples below for your particular connection. Maintenance DAP Audio IMIX-7.2 USB requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 14: Troubleshooting
IMIX 7.2 USB Troubleshooting DAP Audio IMIX-7.2 USB This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 15: Block Diagram
IMIX 7.2 USB Block diagram Ordercode: D2352... - Page 16 ©2013 DAP Audio...
