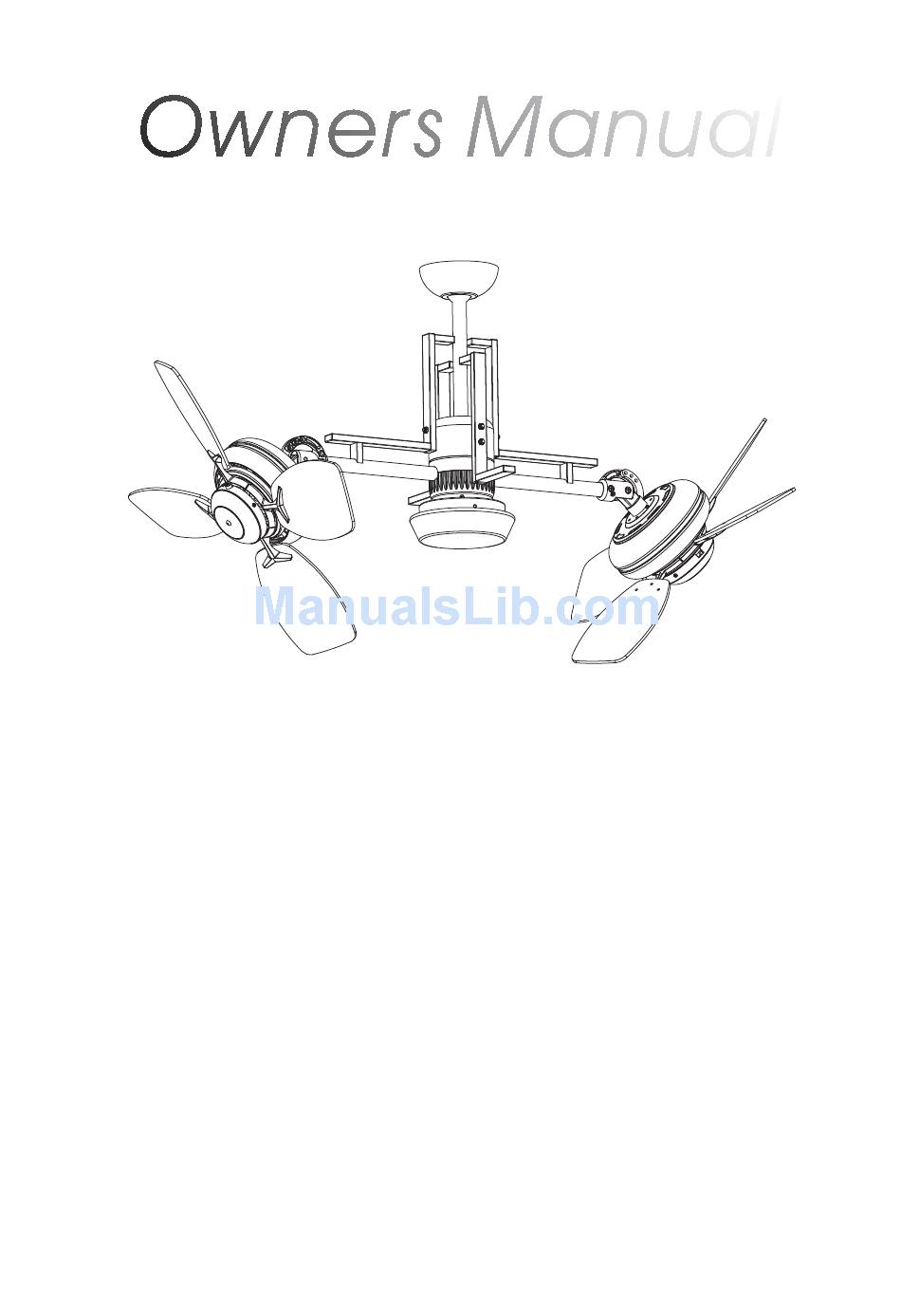

- Page 1 Owners Manual 4TS26IIRB+LK916 CASABLANCA Warning Warning : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
- Page 2 READ AND SAVE THESE INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING : PLEASE OBSERVE THE FOLLOWING : 1].
- Page 3 1. Unpack and inspect fan carefully to be certain all contents are 1. Unpack and inspect fan carefully to be certain all contents are included. included. Hardware bag Hardware bag 2pcs Mounting Screw Light Kit Mounting 2pcs Spring Washer Bracket 2pcs Lock Washer Blade holder...
-
Page 4: Hanging The Fan
6. Yoke & downrod assembly 6. Yoke & downrod assembly Canopy 1.Insert the Yoke Cover and Canopy through downrod Downrod assembly as shown above. Yoke Cover 2.Feed motor lead wires through downrod assembly. Lead Wires 3.Insert the downrod assembly into yoke. Yoke Set Screws(2) Downrod... -
Page 5: Canopy Installation
8-2. Make wire connection - ( for 100~127VAC/60Hz ) - ( for 100~127VAC/60Hz ) Follow diagram below and make sure that all exposed wires are secured inside wire nuts or terminal block. Note : Wires from house may vary in color and may not include ground wire ( green ). After wiring is completed, gently push wires into junction box with wire nuts pointing upward. -
Page 6: Blade & Blade Holder Installation
11. Blade & blade holder installation 11. Blade & blade holder installation Screws Washers 11a. Attach blade to blade arm with Blade arm screws & washers provided in hardware bag. Make sure that all screws are firmly tightened. 11b. Motor Screws Secure blade assembly to the motor with motor screws provided from hardware bag. - Page 7 13. Make wire connections for light kit 13. Make wire connections for light kit Take switch housing corer off by loosening 3 screws and remove center nut from switch housing cover. Insert wires existing from Light Kit Fitter by passing through center hole and attach Light Kit Fitter to Switch Housing Cover with threaded tube and /or fasten with spring washer and hex nut.
