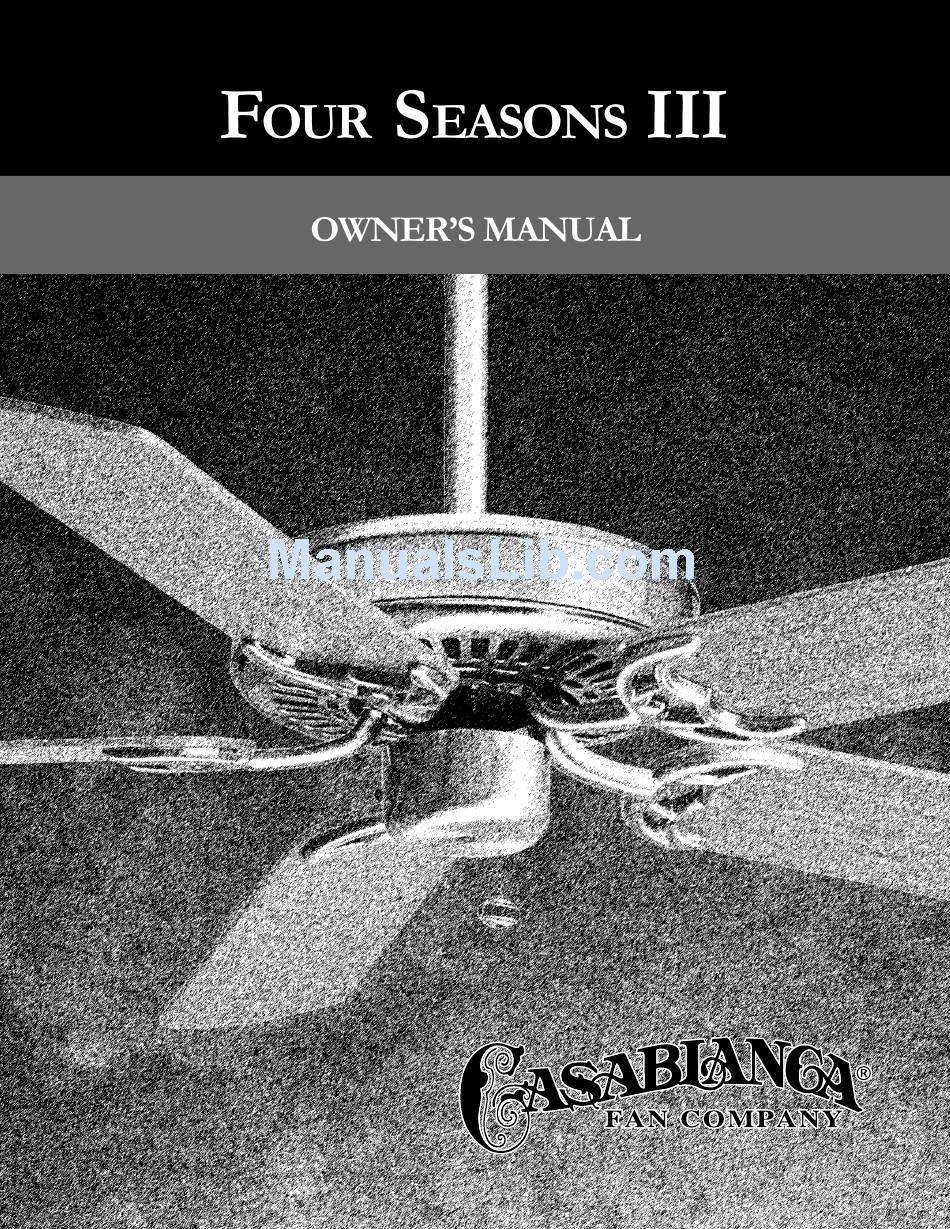

Casablanca Four Seasons III Owner's Manual
  1. Manuals
  2. Brands
  3. Casablanca Manuals
  4. Fan
  5. FOUR SEASONS III
  6. Owner's manual

Casablanca Four Seasons III Owner's Manual

Casablanca four seasons iii ceiling fans: owners manual
Hide thumbs Also See for Four Seasons III:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Casablanca Four Seasons III

Summary of Contents for Casablanca Four Seasons III

  • Page 2: Safety First

    • This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for ceiling fan installations, if it is not, a new box must be installed. Casablanca extension poles are available for sloped or high ceiling installations.

  • Page 3: Mounting Recommendations

    MOUNTING RECOMMENDATIONS Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air circulation, and fan size are all important factors to consider before installation. Location Ceiling fans have practical uses in almost every room in your home. We suggest you follow these mounting recommendations as you decide where to install your Casablanca fan.

  • Page 4: Preparation Instructions

    The fan carton contains the fan body, warranty card, owner's manual, and all the parts necessary to assemble and install your Casablanca ceiling fan. These parts are shown at the start of each installation section. Before you start, go through this Owner’s Manual and confirm that you have all the parts...

  • Page 5: Crossbar Mounting Bracket Installation

    FOUR SEASONS CROSSBAR MOUNTING BRACKET INSTALLATION FOR FAN INSTALLATION OUTSIDE THE USA GO TO PAGE 8 EXCLUDING MODELS ENDING IN ‘E’ Proceed with installation as follows: Step 1. Route the wires from the ceiling outlet box through the crossbar mounting bracket center hole. Attach the bracket, with ground wire and ridges down, to the ceiling fixture outlet box with the mounting hardware included with the outlet box.

  • Page 6: Switch Housing Installation

    SWITCH HOUSING INSTALLATION TIP: The packing styrofoam makes a handy work bench. Remove the bottom foam from the box. Step 3. Outside USA—Excluding Models Ending in ‘E’ Note: If you have a fan with a secondary support steel cable running through your fan motor, go to Page 8. STEEL CABLE (OUTSIDE USA INSTALLATION)

  • Page 7: Hanging The Fan

    FOUR SEASONS CROSSBAR MOUNTING BRACKET INSTALLATION Step 7. To hang the fan body in the canopy, hold the fan body firmly and insert the ball into the canopy opening. Check that no wires were pinched. Rotate the fan body until the slot in the nylon ball fits into the pin opposite the canopy opening.
  • Page 8 BLADE & BLADE HOLDER HARDWARE BLADE & BLADE HOLDER HARDWARE BLADE HOLDER BLADE & BLADE HOLDER INSTALLATION Step 12. Attach the blades to the blade holders with the three blade screws and flat washers provided for each blade. Hand tighten securely. Install the assembled blade and blade holder to the fan motor.
  • Page 9 FAN INSTALLATION OUTSIDE THE USA - EXCLUDING MODELS ENDING IN ‘E’ If you do not have an existing fixture located where you wish to place your Casablanca fan, a new ceiling fixture outlet box must be installed (use an outlet box marked acceptable for fan support) and an electrical cable to run it. This box must be secured to the ceiling according to the outlet box manufacturer’s instructions.
  • Page 10 FOUR SEASONS™ III OUTSIDE USA - SECONDARY SUPPORT Step 5. Hold the switch housing close to the fan and connect the motor plug to the switch housing socket. The connectors are keyed to ensure correct alignment during installation - Do not force! Step 6.
  • Page 11 Step 12. Attach the canopy to the crossbar mounting bracket behind the installed outlet adaptor plate with three of the 8-32 x 2 canopy screws and lock washers provided with your Casablanca fan. Hand tighten until snug against the ceiling.

  • Page 12: Completing Installation

    FOUR SEASONS™ III OUTSIDE USA - SECONDARY SUPPORT Step 16. Attach the fan cable to outlet box cable with the spring lock hook. Make sure the spring lock is tightly closed. Step 17. Tuck the wires into the canopy with the wire nuts pointed upward, so that the white and black wires are on opposite sides of the canopy and all wires are clear of the canopy opening.
  • Page 13 3-SPEED 3-SPEED • The W-4 allows the choice of four (4) different speed settings. • No light fixture is used. • Set the FAN pull chain switch to the HIGH speed setting. • No changes in household or fan wiring are required.
  • Page 14 REVERSE SWITCH R U N N I N G I N R E V E R S E , your Casablanca fan can recirculate warm air near the ceiling down into the living area, providing even heating and comfort (with a pleas-...

  • Page 15: Troubleshooting

    TROUBLESHOOTING BEFORE REQUESTING SERVICE: Never Lubricate this Fan! The precision motor at the heart of your Casablanca fan features sealed bearings that are lubricated for life. Do not attempt to oil the motor. Changing Light Bulbs Be sure to turn power to the fan OFF at the wall switch or circuit breaker before changing light bulbs.
  • Page 16 761 C • P , CA 91768 ORPORATE ENTER RIVE OMONA : 888-CASA-1ST (227-2178) www.CasablancaFanCo.com ©C 1999 C • U.S. P OPYRIGHT ASABLANCA OMPANY ATENT ENDING RINTED IN...
