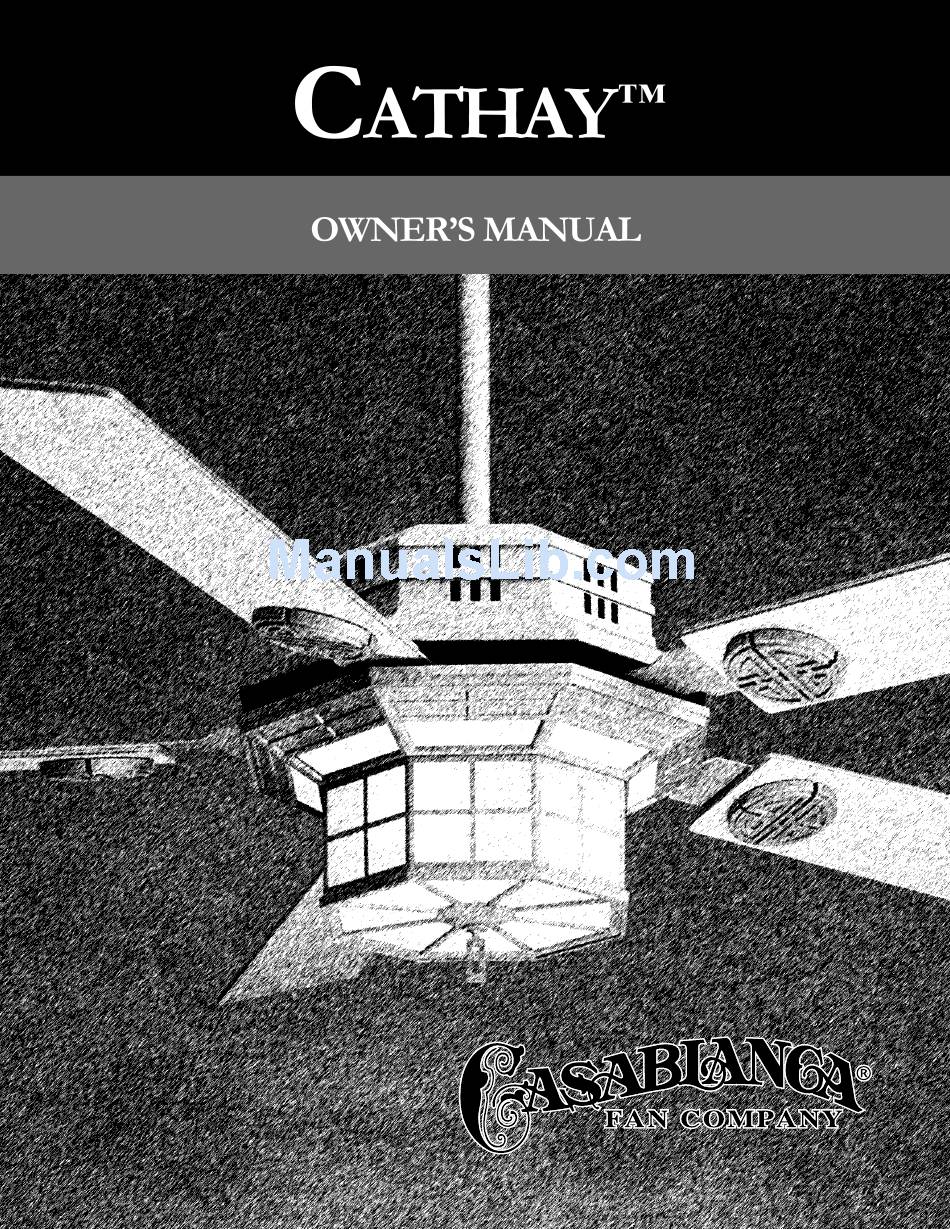

Casablanca Cathay Owner's Manual

Casablanca cathay ceiling fans: owners manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cathay and is the answer not in the manual?

Questions and answers

Related Manuals for Casablanca Cathay

Summary of Contents for Casablanca Cathay

  • Page 2: Table Of Contents

    • This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for ceiling fan installations, if it is not, a new box must be installed. Casablanca extension poles are available for sloped or high ceiling installations.

  • Page 3: Sloped Ceiling Installations

    MOUNTING RECOMMENDATIONS Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air circulation, and fan size are all important factors to consider before installation. Location Ceiling fans have practical uses in almost every room in your home. We suggest you follow these mount- ing recommendations as you decide where to install your Casablanca fan.

  • Page 4: Fan Preparation

    ATHAY GETTING STARTED Be sure to use only genuine Casablanca blades. The blade shrink wrap holds 5 blades of matched weight. If more than one fan is being installed, be sure not to mix blade sets.

  • Page 5: Adaptor Plate Installation

    ATHAY CROSSBAR MOUNTING BRACKET SUPPORT INSTALLATION PARTS ADAPTOR PLATE INSTALLATION Note: After removing the old fixture, check the outlet box to insure that it is supported by a joist or beam across its upper surface. If not, a 2" x 4" stud must be installed. Step 1.

  • Page 6: Lag Screw Installation

    Step 4. Attach the canopy to the crossbar mounting bracket behind the installed outlet adaptor plate with three of the 8-32 x 2 screws and lock washers provided with your Casablanca fan. Hand tighten until snug against the ceiling. Note: On sloped ceilings, align the canopy opening toward the top or peak of the room.

  • Page 7: Canopy Electrical Connections

    ATHAY Step 5. To hang the fan body in the canopy, hold the fan body firmly and insert the nylon ball into the canopy open- ing. Rotate fan body until slot on nylon ball fits into pin opposite canopy opening. NOTE: The fan weight is 35 pounds.

  • Page 8: Blade Installation

    BLADE TO BLADE HOLDER INSTALLATION BLADE & BLADE HOLDER HARDWARE BLADE SCREW (4 PER BLADE) RUBBER GROMMET (4 PER BLADE) RUBBER GROMMET INSTALLATION Step 10. Insert a rubber grommet through each blade hole of every blade. Inspect both sides of the blade to assure that the lips of the grommet are fully engaged.
  • Page 9 ATHAY Step 12. Attach the blade assembly to the flywheel plate using the blade holder screws and star wash- ers. Tighten securely by hand only. Step 13. Remove the three switch housing screws from the switch housing and set aside for Step 16. SWITCH HOUSING ™...
  • Page 10 Step 14. Remove the wire nuts on the BLACK and WHITE wires from the fan. If necessary re- move the insulation from the last ” of each wire (fan and light fixture). Step 15. Attach the switch housing wires to the light fixture wires by placing the bare ends of the wires together and then securing with a wire nut.
  • Page 11 BOTTOM GLASS INSTALL LIGHTBULBS / ATTACH BOTTOM GLASS TO FAN Step 17. Install the two blunt-tip lightbulbs included with your Casablanca fan. When replacing, be sure to only use 60 Watt bulbs maximum. Step 18. Place the bottom glass over the base of the light kit so the groove of the bottom glass fits snugly.

  • Page 12: Control Features: Inteli•Touch Installation

    For this reason the following precautions must be observed: 1. Use only the Casablanca W-32 wall control. 2. Do not use any additional control with your Inteli-Touch fan (for example, dimmer, fan speed control, etc.).

  • Page 13: Automatic Demonstration Program

    INTELI•TOUCH OPERATION button is normally left in the on position. Always turn the power off during cleaning or servicing the fan and during thunderstorms. It is also used to exit or enter additional programs. POWER must be left on to retain a previously set fan speed or light level. INTELI•TOUCH OPERATION There are six individual speed settings for the fan;...
  • Page 14 INTELI•TOUCH OPERATION The Light-Minder program automatically turns OFF the fan mounted lights after two hours. To enter the Light-Minder Program: 1. Turn the OFF for at least three seconds. 2. Turn the 3. Immediately operate the buttons in the following sequence: 4.

  • Page 15: Troubleshooting

    MITTENT: Check AC supply for irregularities, (noise spikes, fluctuations, or failure); or circuit board assembly. www.CasablancaFanCo.com TROUBLESHOOTING Never Lubricate this Fan! The precision motor at the heart of your Casablanca fan features sealed bearings that are lubricated for life. Do not attempt to oil the motor. Changing Light Bulbs Be sure to turn power to the fan OFF at the wall switch or circuit breaker before changing light bulbs.
  • Page 16 761 C • P , CA 91768 ORPORATE ENTER RIVE OMONA : 888-CASA-1ST (227-2178) www.CasablancaFanCo.com ©C 2000 C • U.S. P OPYRIGHT ASABLANCA OMPANY ATENT ENDING RINTED IN...
