Lumens DC145 Upgrade Instruction

Firmware upgrade
Hide thumbs Also See for DC145:
1
2
3
4
5

Advertisement

Table of Contents

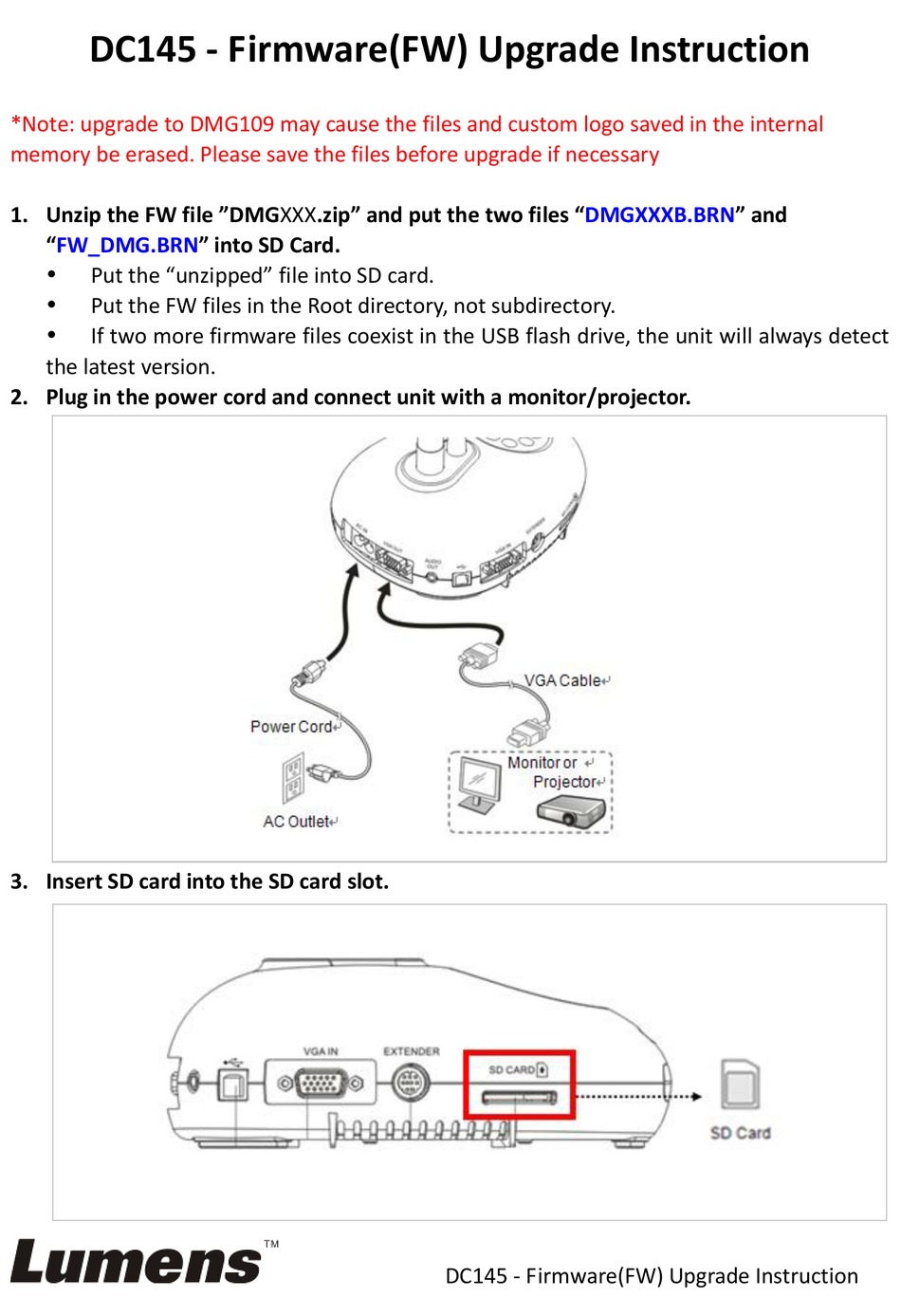

DC145 - Firmware(FW) Upgrade Instruction
*Note: upgrade to DMG109 may cause the files and custom logo saved in the internal
memory be erased. Please save the files before upgrade if necessary
1. Unzip the FW file "DMGXXX.zip" and put the two files "DMGXXXB.BRN" and
"FW_DMG.BRN" into SD Card.
Put the "unzipped" file into SD card.
Put the FW files in the Root directory, not subdirectory.
If two more firmware files coexist in the USB flash drive, the unit will always detect
the latest version.
2. Plug in the power cord and connect unit with a monitor/projector.
3. Insert SD card into the SD card slot.
DC145 - Firmware(FW) Upgrade Instruction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC145 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumens DC145

Summary of Contents for Lumens DC145

  • Page 1 DC145 - Firmware(FW) Upgrade Instruction *Note: upgrade to DMG109 may cause the files and custom logo saved in the internal memory be erased. Please save the files before upgrade if necessary 1. Unzip the FW file ”DMGXXX.zip” and put the two files “DMGXXXB.BRN” and “FW_DMG.BRN”...
  • Page 2 Press “Enter”(do not release), then press” Zoom+”, hold both buttons in a second, then the “Service menu” will be shown on screen as following picture. Service Menu：Press “ Enter” + ”Zoom+ ” in sequence 5. Go [ISP] menu, select [Firmware Upgrade] and press [Enter]. DC145 - Firmware(FW) Upgrade Instruction...
  • Page 3 6. FW start upgrading. (around 30sec taken) *Note: Please do not stop the upgrading process which may cause the unit shut down. 7. Power reset the unit when the process finish. (Unplug and re-plug the power cord to take effect.) DC145 - Firmware(FW) Upgrade Instruction...
  • Page 4 FW upgrade. (around 1min taken) *Note: Please do not stop the upgrade process which may cause the unit shut down. 9. Restart the unit after upgrading successfully. (Unplug and re-plug the power cord to take effect.) DC145 - Firmware(FW) Upgrade Instruction...
  • Page 5 10. Check FW version on OSD. ([Menu] [Setting] [Advanced]) Master FW version 11. Finished DC145 - Firmware(FW) Upgrade Instruction...
