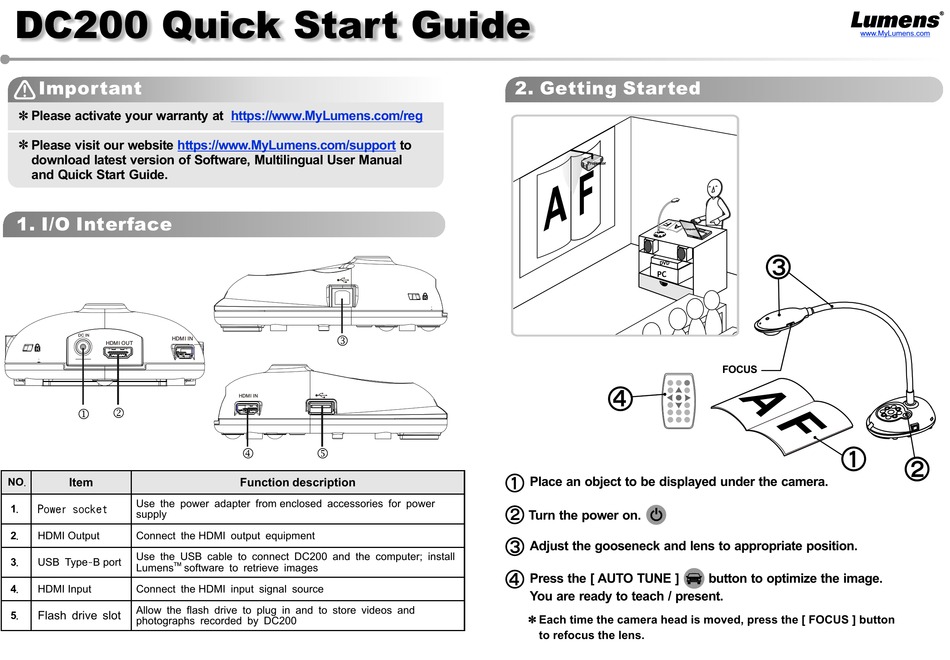

DC200 Quick Start Guide
Important
Please activate your warranty at
Please visit our website https://www.MyLumens.com/support
download latest version of Software, Multilingual User Manual
and Quick Start Guide.
1. I/O Interface
DC IN
HDMI IN
HDMI OUT
k
j
Item
NO.
Use the power adapter from enclosed accessories for power
Power socket
1.
supply
2. HDMI Output Connect the HDMI output equipment
Use the USB cable to connect DC200 and the computer; install
3. USB Type-B port
TM
Lumens software to retrieve images
4. HDMI Input Connect the HDMI input signal source
Allow the flash drive to plug in and to store videos and
Flash drive slot
5.
photographs recorded by DC200
https://www.MyLumens.com/reg
to
l
HDMI IN
mn
Function description
2. Getting Started
Projector
Computer
DVD
PC
Place an object to be displayed under the camera.
Turn the power on.
Adjust the gooseneck and lens
Press the [ AUTO TUNE ]
You are ready to teach / present.
Each time the camera head is moved, press the [ FOCUS ] button
to refocus the lens.
www.MyLumens.com
FOCUS
to appropriate position.
button to optimize the image.
