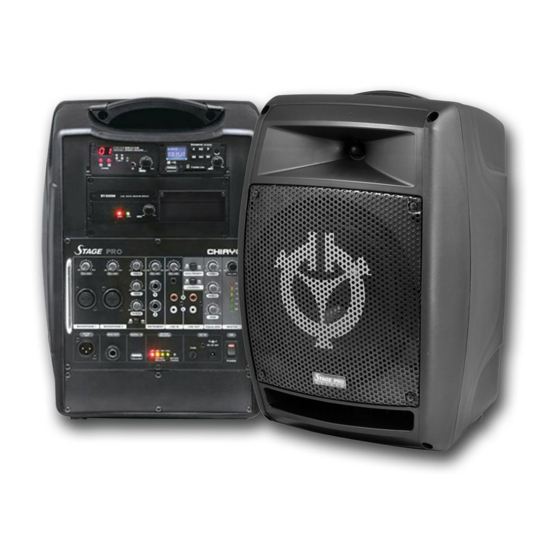

Chiayo Stage pro Operation Manual
Multifunctional wireless mixer amplifier system
Hide thumbs
Also See for Stage pro:
- Operation manual (24 pages) ,
- Operation manual (20 pages) ,
- Operation manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Chiayo Stage pro
Summary of Contents for Chiayo Stage pro
-
Page 1: Operation Manual
Multifunctional Wireless Mixer Amplifier System Operation manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT World Genius Convention Silver Medal... - Page 2 The wireless receiver/transmitter module is UHF band and plus PLL synthesized type with 16 or 100 preset frequencies. Configuration STAGE PRO may come equipped with the following: 1. AC power cord. 2. 1~4 or no wireless receiver/transmitter/MP3/Bluetooth module module(s). 3. 1~4 transmitters, either handheld or belt-pack transmitter (except version with no module installed).
- Page 3 ISO 9001 / ISO 14001 / OHSAS 18001 Parts and functions on STAGE PRO control panel 1. Mic in #1 2. Mic #1 volume control 3. Mic in #2 4. Mic #2 volume control 5. Mic tone control (Treble/Bass) 6. Reverb volume control 7.
- Page 4 Parts and functions on STAGE SPEAKER control panel 1. Audio input Starting to operate STAGE PRO First of all, please charge for at least 4~6 hours because the built-in rechargeable battery might have been discharged naturally due to long shipment and storage time, even though it has been fully charged in the factory prior to the shipment.
- Page 5 Various audio outputs Active out: STAGE PRO could be operated as the MASTER unit in an audio link system. In order to operate Audio Link, you must have a STAGE PRO as the only MASTER. The Master is capable of connecting with up to about 20 active speakers (STAGE SLAVE).
- Page 6 SDR-5200M IrDA/SDR-5100M IrDA/SDR-5116M receiver modules 1. Channel indicator 2. Diversity A/B indicator 3. Audio signal indicator 4. IR sensor area (SDR-5200M IrDA/SDR-5100M IrDA) 5. Channel Selector 6. IRDA synchronizing button (SDR-5200M IrDA/SDR-5100M IrDA) 7. Squelch control 8. Power switch/volume control First turn on the Power of the main unit.
- Page 7 ISO 9001 / ISO 14001 / OHSAS 18001 RP-5016M/RP-5100M transmitter module 1. Channel indicator 2. Antenna socket (TNC type) 3. Channel selectors: Press ▲(up)▼(down) to increase/decrease channel number. Please select a non-interfering frequency channel to those used in the receiver modules. 4.
- Page 8 Operating functions on the panel and the remote Operating function On the panel On the remote Press II Play/pause Press ● to record and ■ to stop. Press REC to record and ■ to stop. Record Press I Skip forward PressI Press and hold I Press and hold I...
- Page 9 ISO 9001 / ISO 14001 / OHSAS 18001 DPRB-600M MP3 recorder player Bluetooth module 2 3 4 5 6 7 remote control of digital recorder player Bluetooth receiver section (LEFT) 1. Power/volume control 2. LINK button 3. LOCK LED 4.
- Page 10 Operating functions on the panel and the remote Operating function On the panel On the remote Press II Play/pause Press ● to record and ■ to stop. Press REC to record and ■ to stop. Record Press I Skip forward PressI Press and hold I Press and hold I...
- Page 11 ISO 9001 / ISO 14001 / OHSAS 18001 Operating the CD player Parts and functions 2 3 4 5 6 7 8 9 10 1. LCD display 5. Eject 9. Infrared receiving LED 2. Play/pause 6. CD/USB selector 10. USB input 3.
- Page 12 FOLDER-UP In stop mode: Skip the starting play folder to next folder during stop mode, cyclic to the first folder if it is in the last folder. In program entry mode: Change the file for program select to next folder’s first file, cyclic to the first folder if it is in the last folder.
- Page 13 ISO 9001 / ISO 14001 / OHSAS 18001 Operating the DVD player Parts and functions POWER / VOL PLAY PAU SE REV-SKIP-CU E STOP EJECT VIDEO FU NC REPEAT N /P SD/MM C CARD 1. Power/volume control 7. Video output 13.
- Page 14 In play state, press OSD key, the play information of the disc will show on the screen. Press it again, the OSD information will disappear. After programming, the player will play the title, chapter or songs follow the programmed order. Press PROG button ,the menu will display on the screen as following: PROGRAM 1--:--...
- Page 15 ISO 9001 / ISO 14001 / OHSAS 18001 UHF handheld microphones（SQ-6100 IrDA/SQ-2100 IrDA/SQ-1100 IrDA） SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Parts and functions SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Cartridge Battery power LED Power switch Menu button Setting button IrDA synchronizing button Battery compartment Color cap IrDA sensor area...
- Page 16 Channel synchronizing of the receiver and microphone 1. Limit the distance between the receiver and transmitter within 30cm. 2. Align both sensor areas 3. To change the receiver’s channel, please press the synchronizing button of the microphone. The microphone will transmit synchronizing signal to the receiver and change its channel. 4.
- Page 17 ISO 9001 / ISO 14001 / OHSAS 18001 UHF belt-pack transmitters（SM-7100 IrDA/SM-6100 IrDA/SM-1100 IrDA） 11 12 SM-7100 IrDA/SM-6100 IrDA SM-1100 IrDA Parts and functions SM-7100 IrDA SM-6100 IrDA SM-1100 IrDA Antenna Cover release button Power switch IrDA synchronizing button Menu button Setting button High-impedance gain control (GT) Low-impedance gain control (MT)
- Page 18 Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period. Batteries should be removed from the belt-pack before storing without use for more than 4 weeks. When the microphone is switched ON, the battery power LED (red) will blink once to indicate the batteries installed are in good condition.
- Page 19 ISO 9001 / ISO 14001 / OHSAS 18001 UHF handheld microphones（SQ-1016/SQ-1016V/SQ-5016） SQ-1016/1016V (UHF 16-freq) SQ-5016 (UHF LCD 16-freq) Microphone parts and functions SQ-1016 SQ-1016V SQ-5016 Cartridge Battery weak/power LED Power switch Channel switch Battery compartment Bottom cap Locking button Audio mute switch Setting button Up button Down button...
- Page 20 Other settings (SQ-5016) 1. Channel setting Use UP or DOWN button to go to the CHANNEL/ FREQUENCY page. The cursor will flash to allow changes to be made. Pressing UP or DOWN button will increase or decrease the channel number. The corresponding frequency will change accordingly. When a desired channel is selected, it will be automatically saved and stored in the memory.
- Page 21 ISO 9001 / ISO 14001 / OHSAS 18001 UHF belt-pack transmitters（SM-1016/SM-5016） Parts and functions Transmitter parts and functions SM-1016 SM-5016 Antenna Battery weak/audio mute indicator Power switch (Lavalier microphone) Mini XLR connector Audio mute switch Charging port Cover release button Charging contacts Setting button Up button...
- Page 22 Battery installation & indicator This belt-pack requires 2 x AA batteries to operate. To install, open the battery cover using the cover release buttons and insert the batteries into the battery compartment. Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period.
- Page 23 ISO 9001 / ISO 14001 / OHSAS 18001 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
- Page 24 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan / Tel: 886-2-27415741 / Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan / Tel: 886-5-2711000 / Fax: 886-5-5767611 12I1298...
